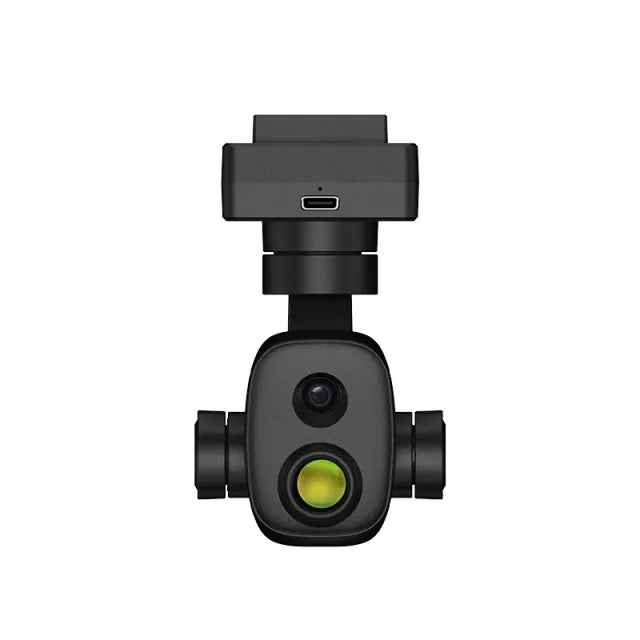

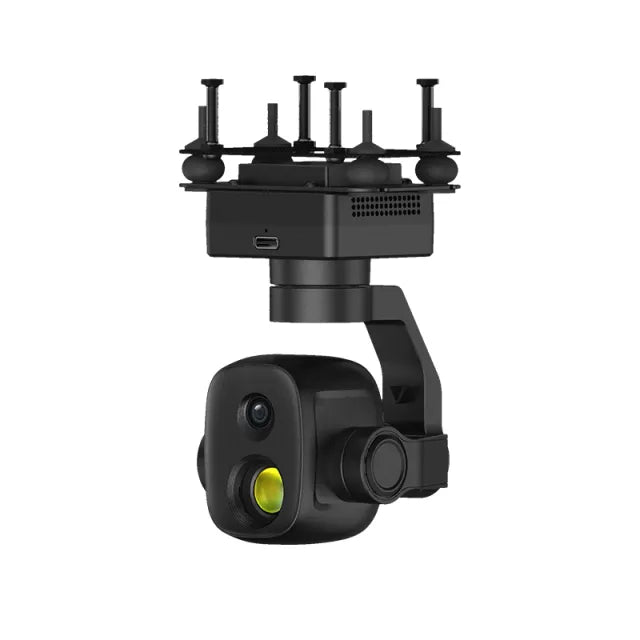

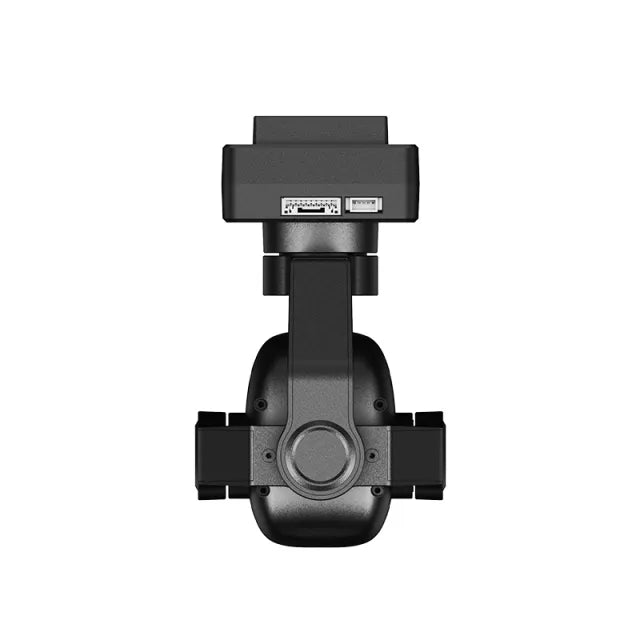

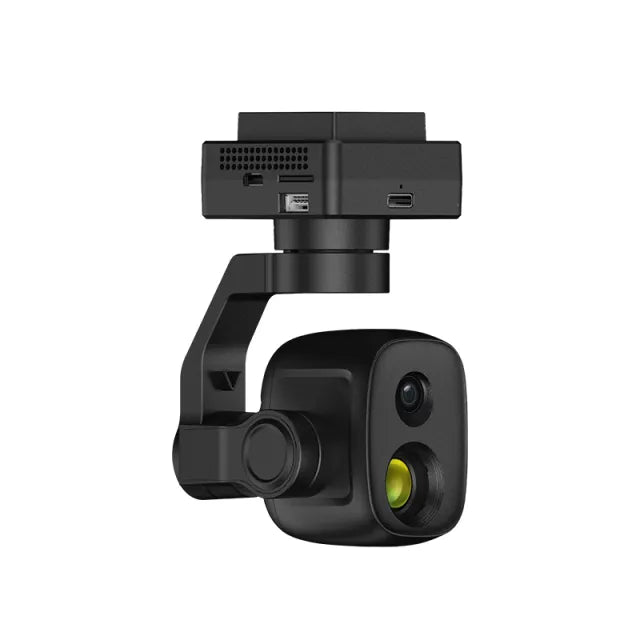

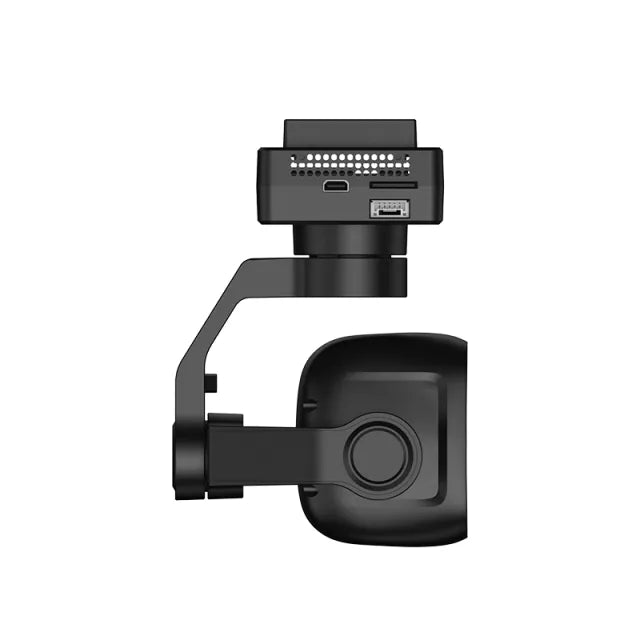

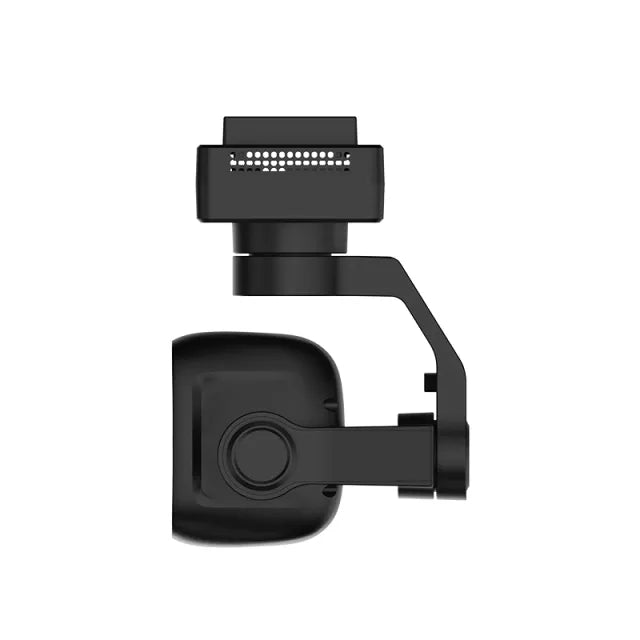

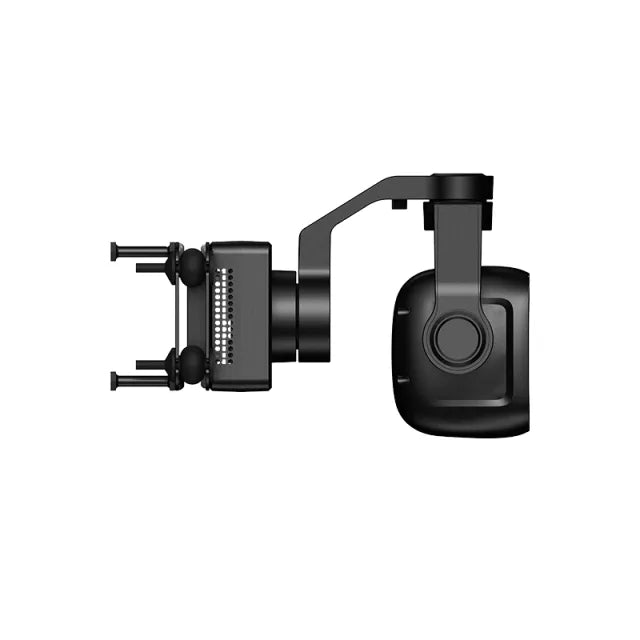

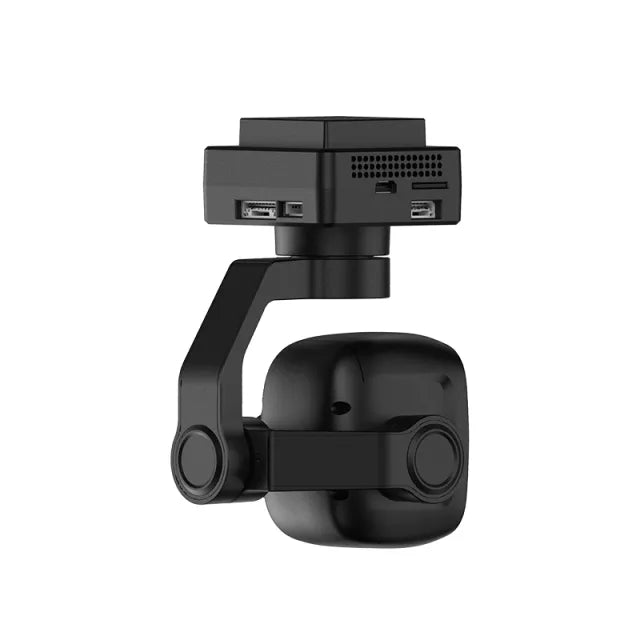

SIYI ZT6 Mini Dual-Sensor Optical Pod

SIYI ZT6 Mini Dual-Sensor Optical Pod

Regular price $2,956.66 USD
Regular price Sale price $2,956.66 USD
Sale Sold out
Shipping calculated at checkout.

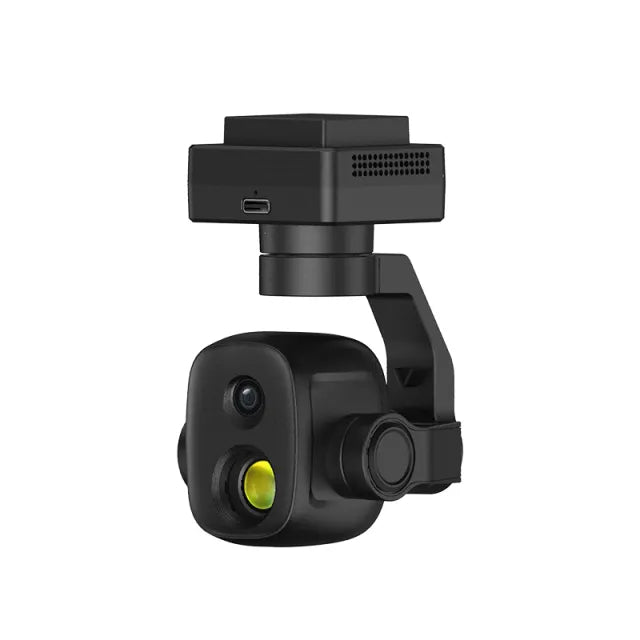

The SIYI ZT6 Mini Dual-Sensor Optical Pod is a high-performance gimbal camera designed for industrial applications. Equipped with dual sensors for 4K Ultra HD visuals and 640 x 512 thermal imaging, it provides unmatched accuracy and efficiency. This camera pod offers versatile functionality, making it ideal for surveillance, environmental monitoring, and logistics operations.

Key Features:

  • Dual Sensors: 4K 8MP Optical Camera + 640 x 512 Thermal Imaging Sensor
  • 6X Digital Zoom: Capture detailed images from a distance with ease
  • 540° Yaw Axis Rotation: Delivers 360-degree panoramic vision

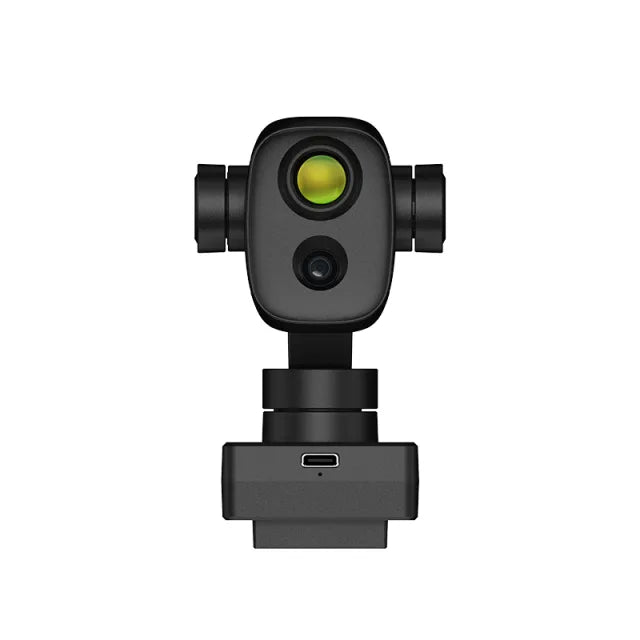

  • Upside Down Mode: Allows for flexible positioning and use in complex scenarios
  • High Accuracy 3-Axis Stabilization: Ensures stable and smooth footage
  • Multiple Modes: Follow Mode, Lock Mode, FPV Mode, and Upside Down Mode
  • Compatibility: Supports ArduPilot, PX4 (Mavlink), and more
  • IP53 Waterproofing: Built to withstand diverse weather conditions
  • Temperature Measurement Range: -20°C to +150°C (High Gain), 50°C to +550°C (Low Gain)
  • Lightweight Design: Weighs only 177g, making it portable and easy to install

Specifications:

  • Video Output: Ethernet / CVBS / Micro-HDMI
  • Control Signal Input/Output: S.Bus / UART / Ethernet UDP / TCP
  • Stabilization: Yaw, Pitch, Roll with ±0.01° angular vibration
  • Working Voltage: 11-25.2V
  • Power Consumption: Avg 6.5W, Peak 15W
  • Dimensions: 73.5 x 75 x 131.5 mm
  • Optical Camera: 4K UHD (3840 x 2160 @ 30fps), Sony 1/2.7 Inch CMOS Sensor, F2.8 Aperture
  • Thermal Imaging: Uncooled VOx Microbolometer, 640 x 512 resolution, 13mm focal length
  • Supported SD Cards: Up to 256 GB, Class10
  • Operating Temp: -10°C to 50°C

What's in the Box:

  1. SIYI ZT6 Mini Optical Pod
  2. Anti-Vibration Board
  3. Power & Control Cables
  4. User Manual
  5. Mounting Accessories

Why You Should Buy: The SIYI ZT6 Mini Dual-Sensor Optical Pod combines the power of a 4K optical camera with advanced thermal imaging, making it indispensable for industrial and surveillance needs. With precise stabilization and flexible positioning, it ensures smooth and clear footage in any condition. Its wide application range, compact design, and compatibility with multiple platforms make it a versatile solution for professional drone operators.
