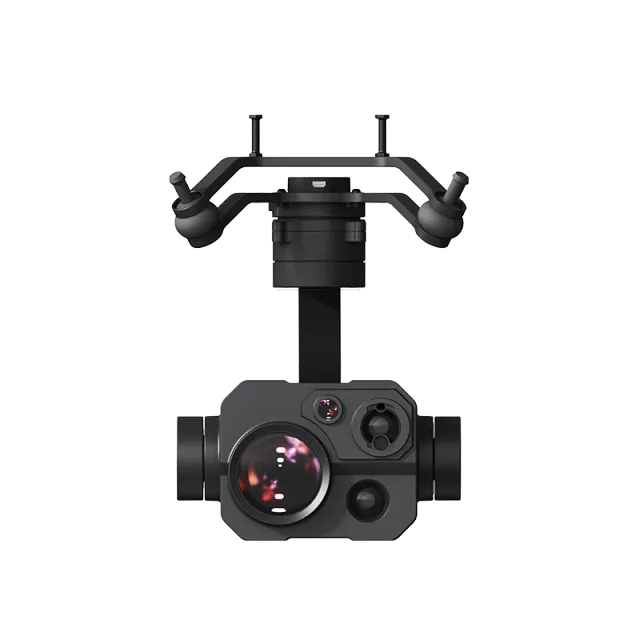

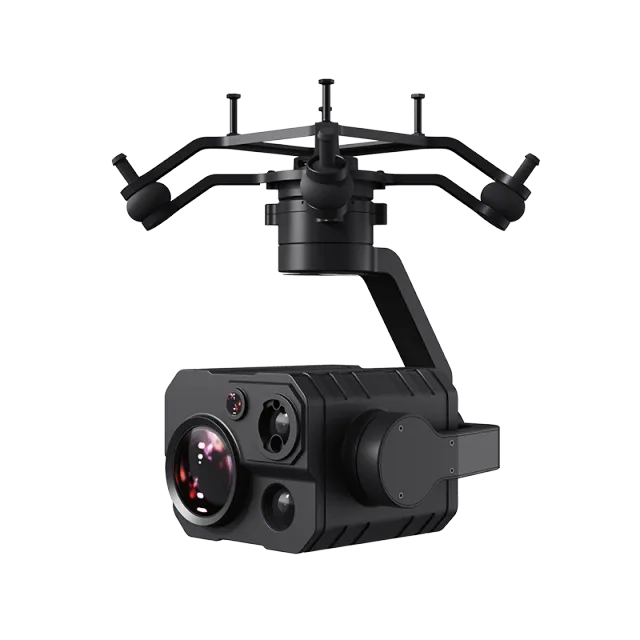

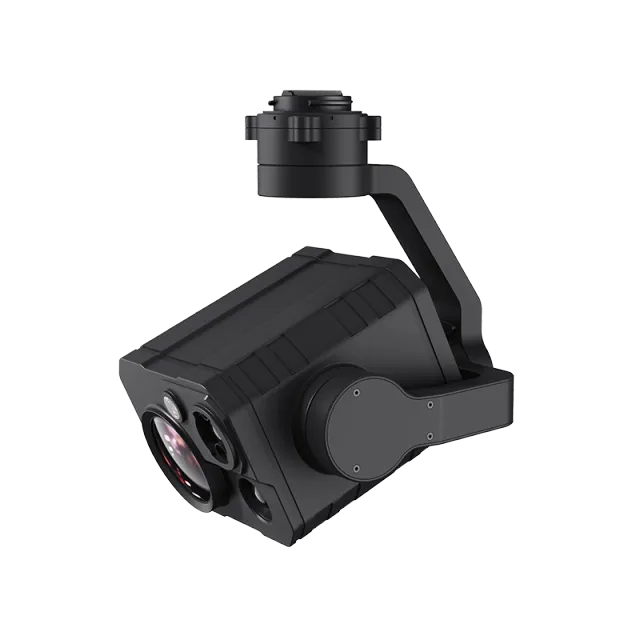

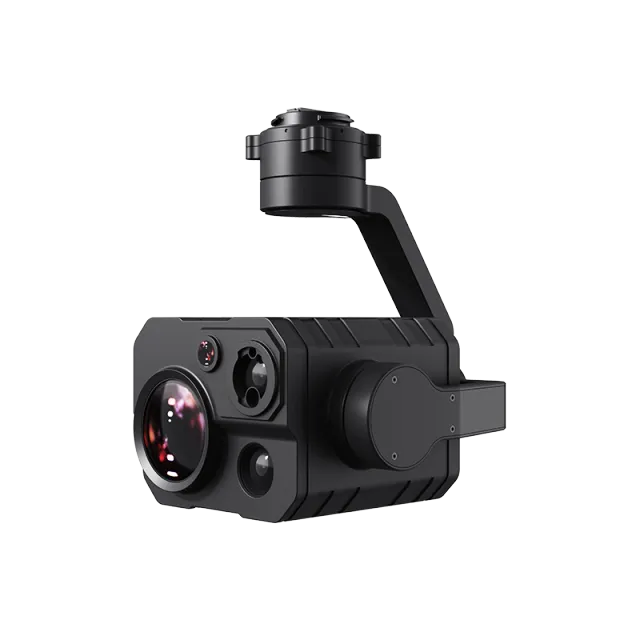

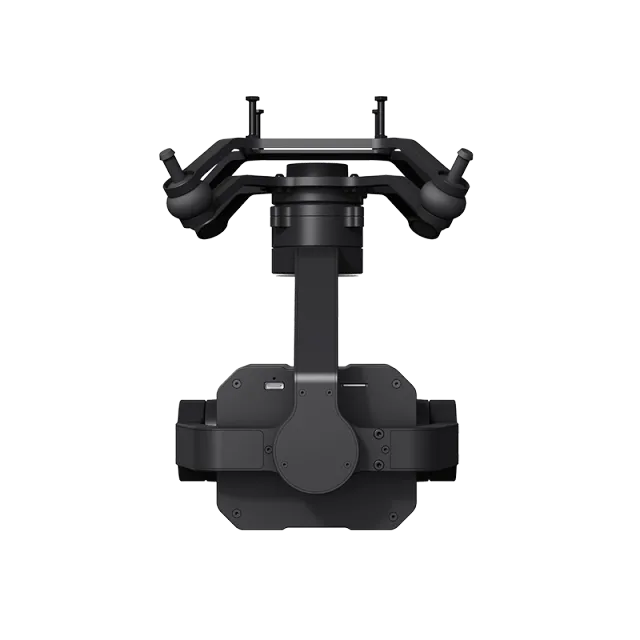

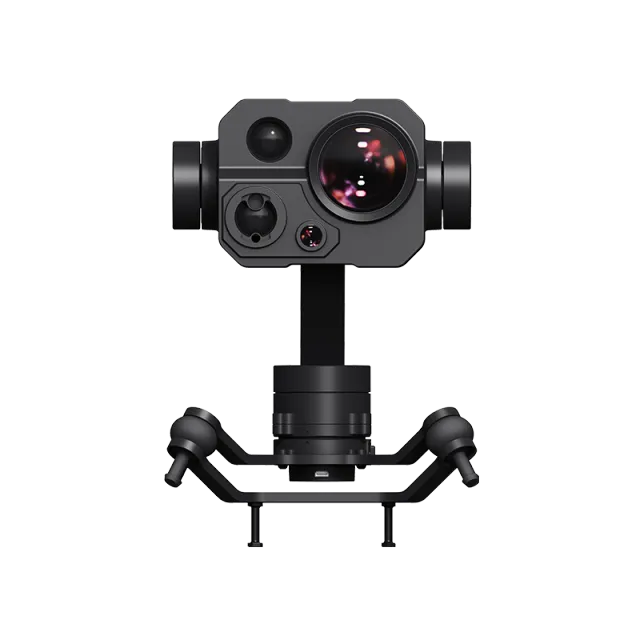

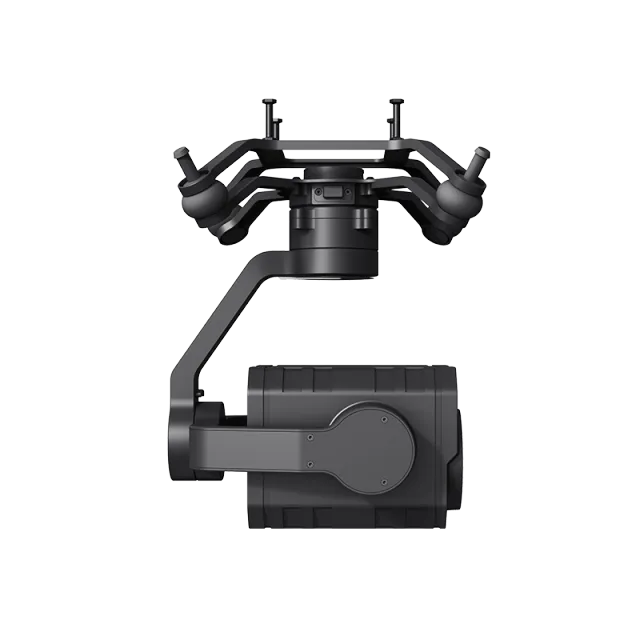

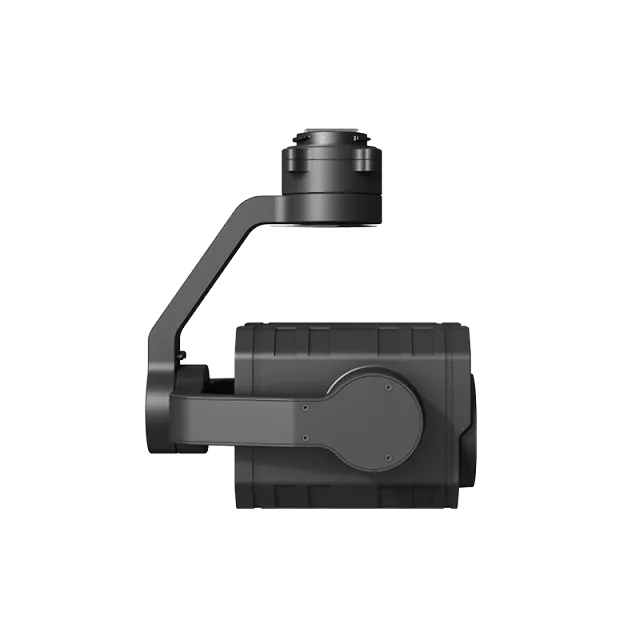

SIYI ZT30 Four-Sensor Optical Pod
SIYI ZT30 Four-Sensor Optical Pod

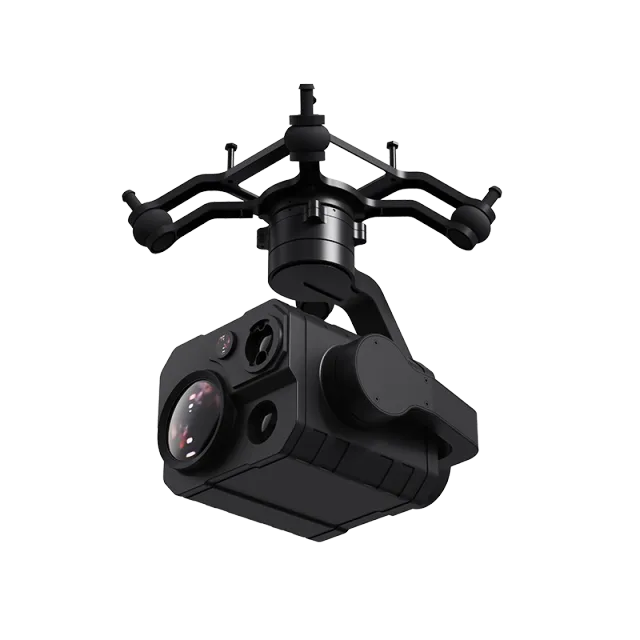

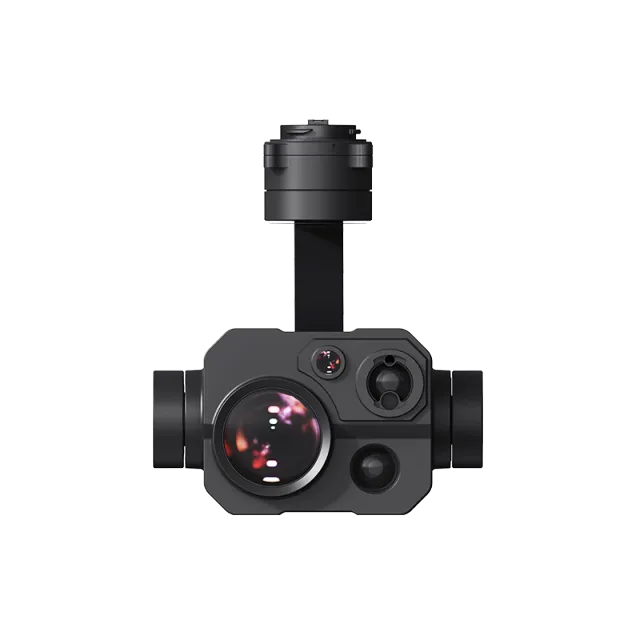

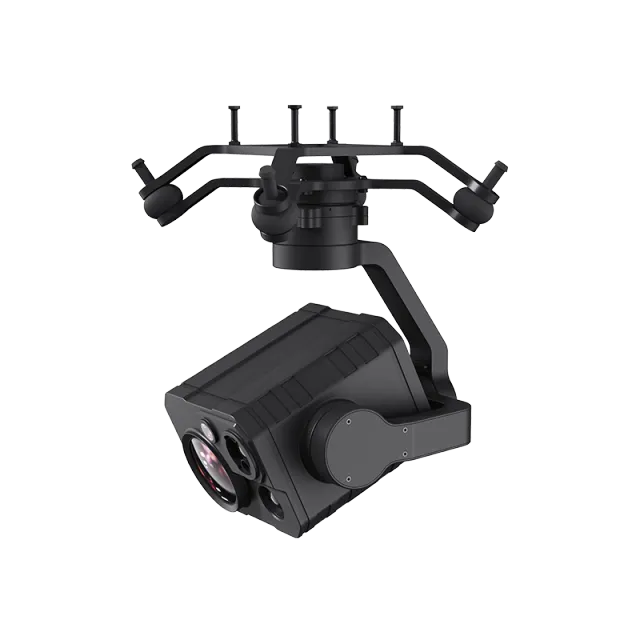

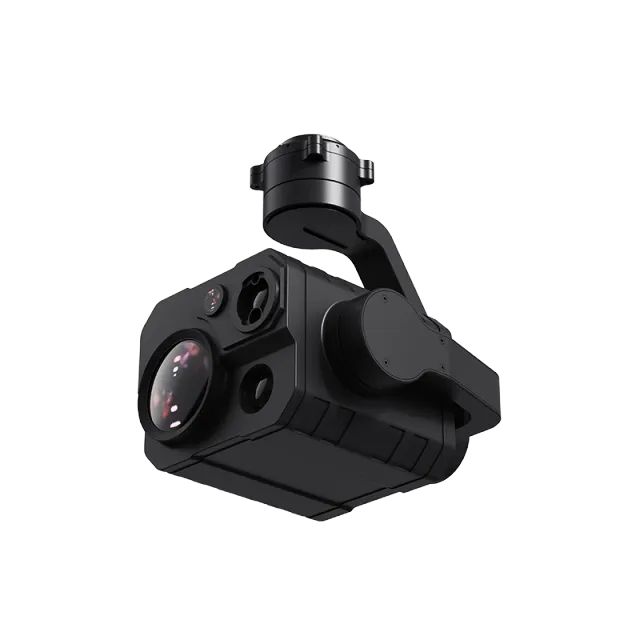

The SIYI ZT30 is a cutting-edge 4-sensor optical pod featuring an advanced 180X Hybrid Zoom, including 30X Optical Zoom capability, 4K recording, 640 x 512 Thermal Imaging, and AI Smart Tracking. Built for industrial drones, it excels in surveillance, inspection, search & rescue, and security applications, delivering unmatched image clarity and precision.
Key Features:
- 4K 180X Hybrid Zoom & 30X Optical Zoom: Capture distant objects with clarity.
- Thermal Imaging Sensor (640 x 512): High-resolution thermal imagery with temperature measurement.
- AI Smart Identify & Tracking: Automatically identifies and tracks objects for enhanced surveillance.
- 1200-Meter Range Laser Rangefinder: Accurately measure distances up to 1200m.
- 3-Axis Gimbal Stabilization: Smooth, vibration-free footage with limitless yaw rotation.
- Upside Down Mode: Automatically activates for inverted drone operations.
- Waterproof (IP4X): Built to perform in challenging environments.
Specifications:
-
Zoom Camera:
- 30X Optical Zoom, 180X Hybrid Zoom
- 4K video recording at 30 fps
- 1/2.7 Inch 8 MP CMOS Sensor
- Diagonal 65.4° FOV without zoom, 2.48° with full zoom
-
Thermal Imaging Camera:
- 640 x 512 resolution
- 2X Digital Zoom
- Temperature range: -20 ~ +550°C
- Accuracy: ±2°C (-20 ~ +150°C), ±3°C (0 ~ +550°C)
-
Laser Rangefinder:
- Range: 5 ~ 1200 meters
- Wavelength: 900 ~ 908 nm
- Accuracy: ±1 m for 3 ~ 100 m
- 3 Hz laser pulse frequency
-
Gimbal:
- 3-Axis stabilization (Yaw, Pitch, Roll)
- Limitless yaw rotation
- ±0.01° angular vibration range
-
Weight & Dimensions:
- Weight: 854 g (including quick-release anti-vibration claw)
- Dimensions: 134.5 x 140 x 201 mm
What's in the Box:
- 1 x SIYI ZT30 Optical Pod with 4K 8MP Hybrid Zoom Camera

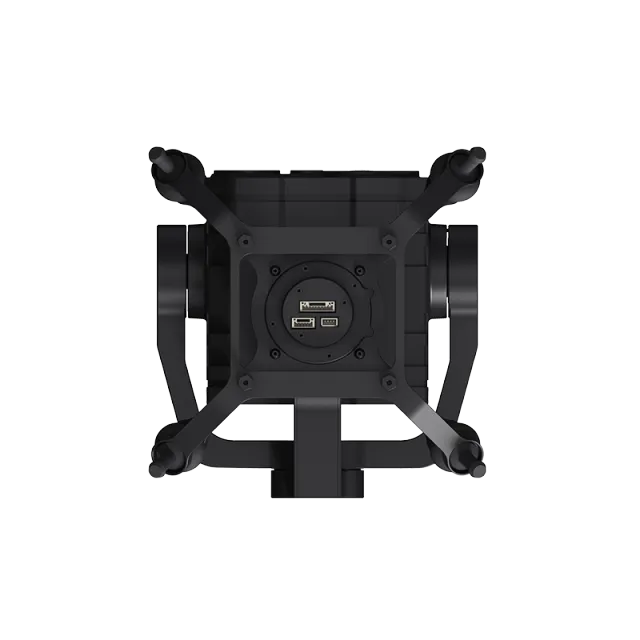

- 1 x Quick Release Anti-Vibration Claw
- 1 x User Manual
- Necessary connection cables and accessories
Why You Should Buy:
The SIYI ZT30 offers comprehensive visual intelligence with its four sensors, including thermal imaging and AI tracking, making it indispensable for various industrial and security tasks. Its long-range laser rangefinder and high-precision zoom empower users with the ability to capture, identify, and track objects with precision, even at extreme distances. Whether you're involved in surveillance, search and rescue, or critical inspections, the ZT30 delivers uncompromised performance with its rugged, weather-resistant design.
