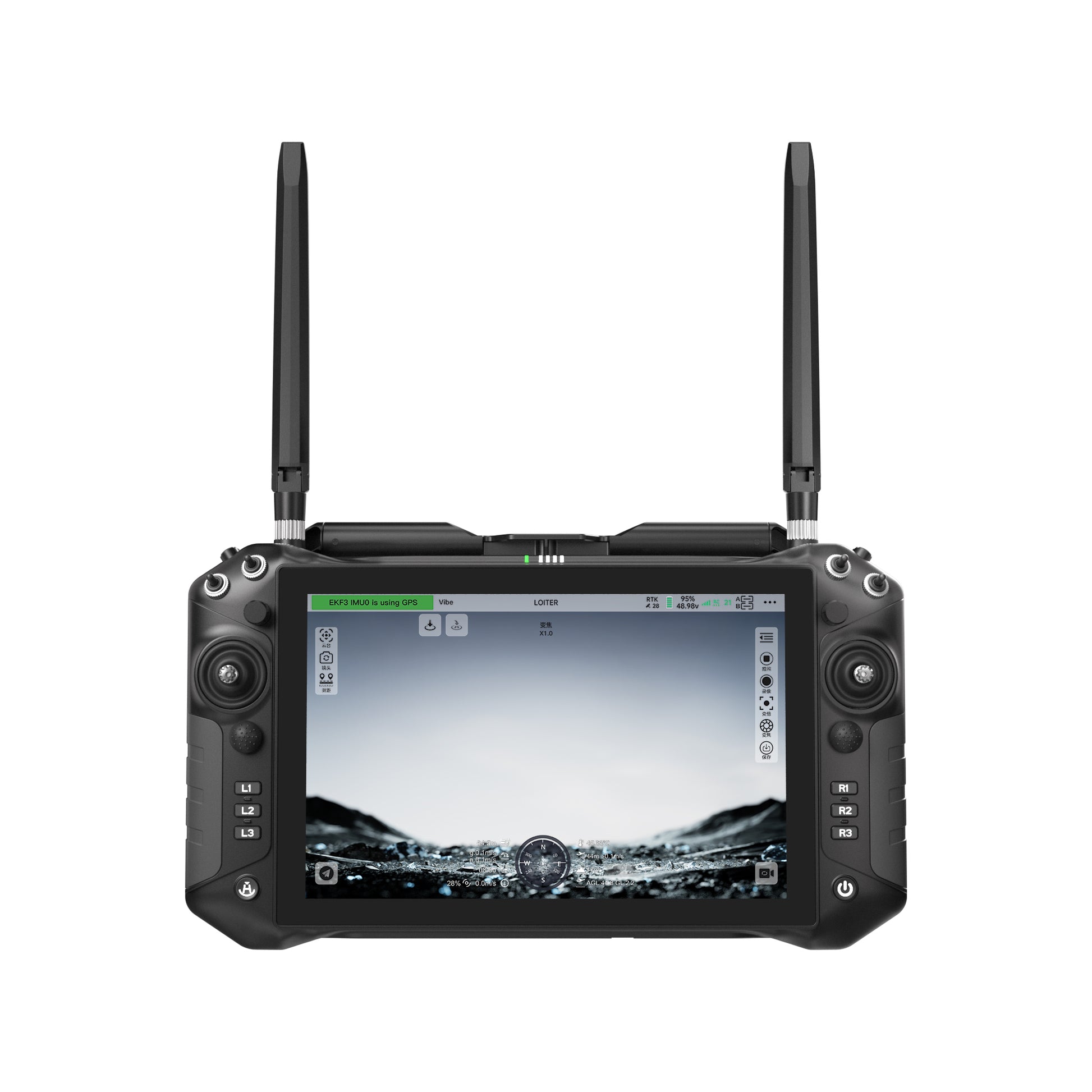

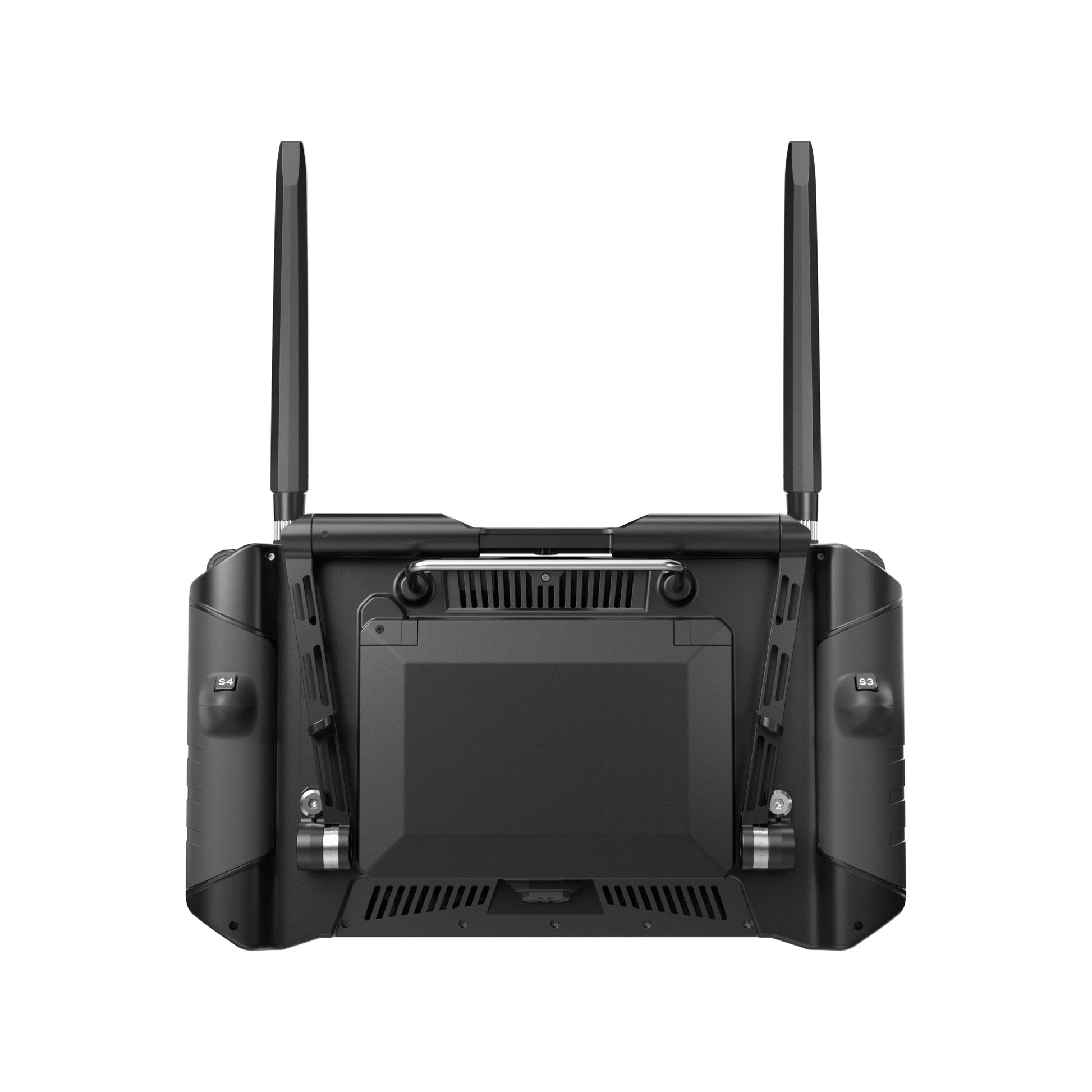

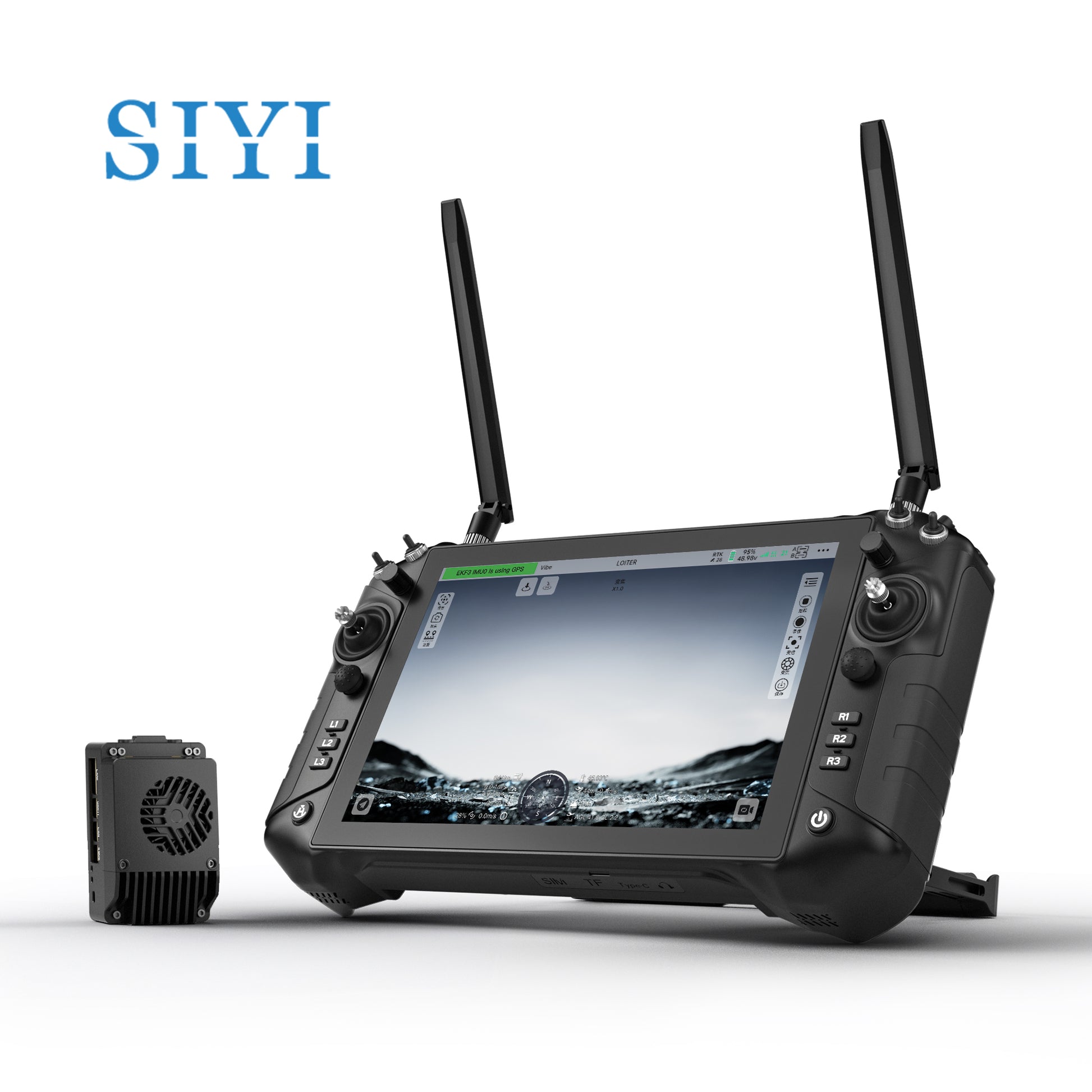

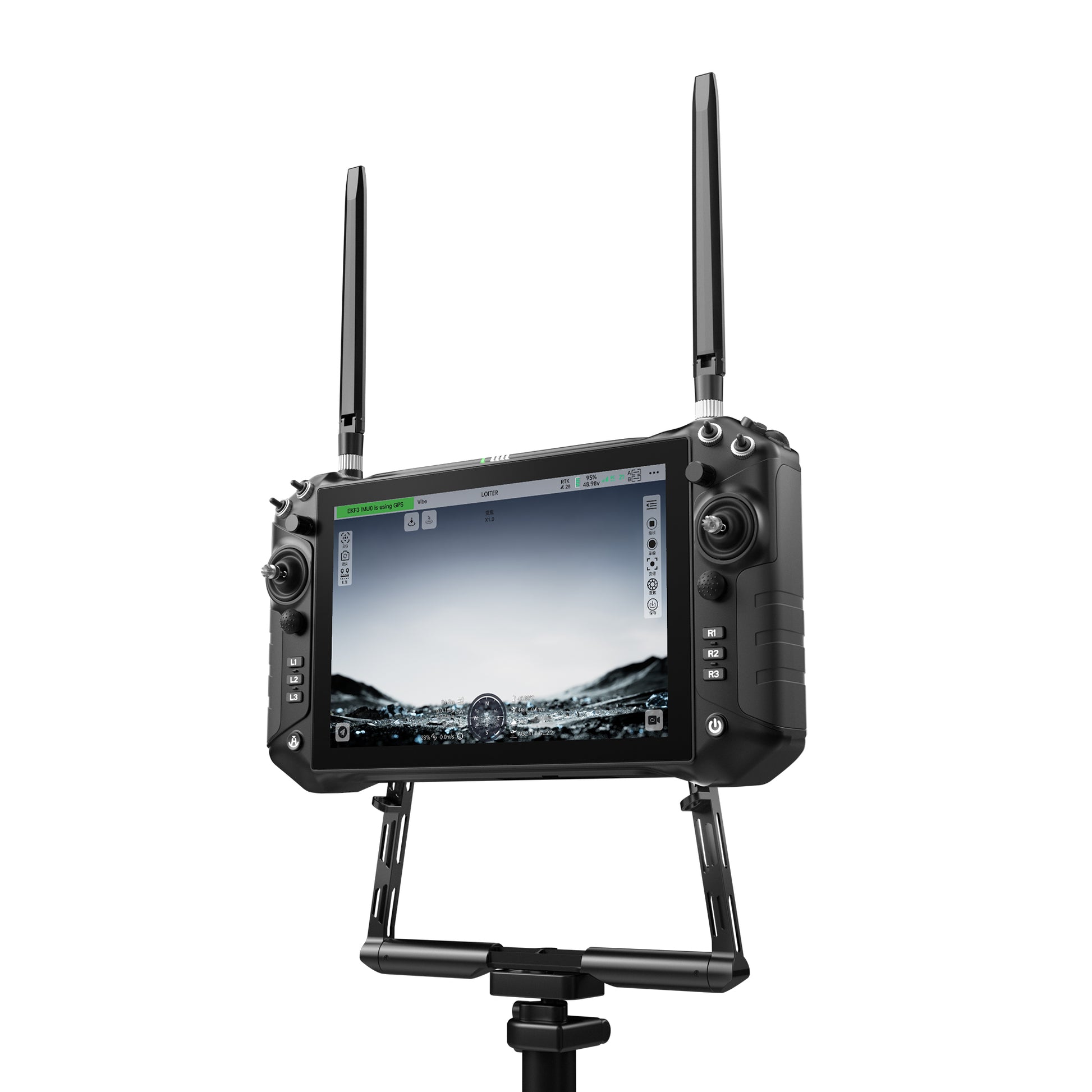

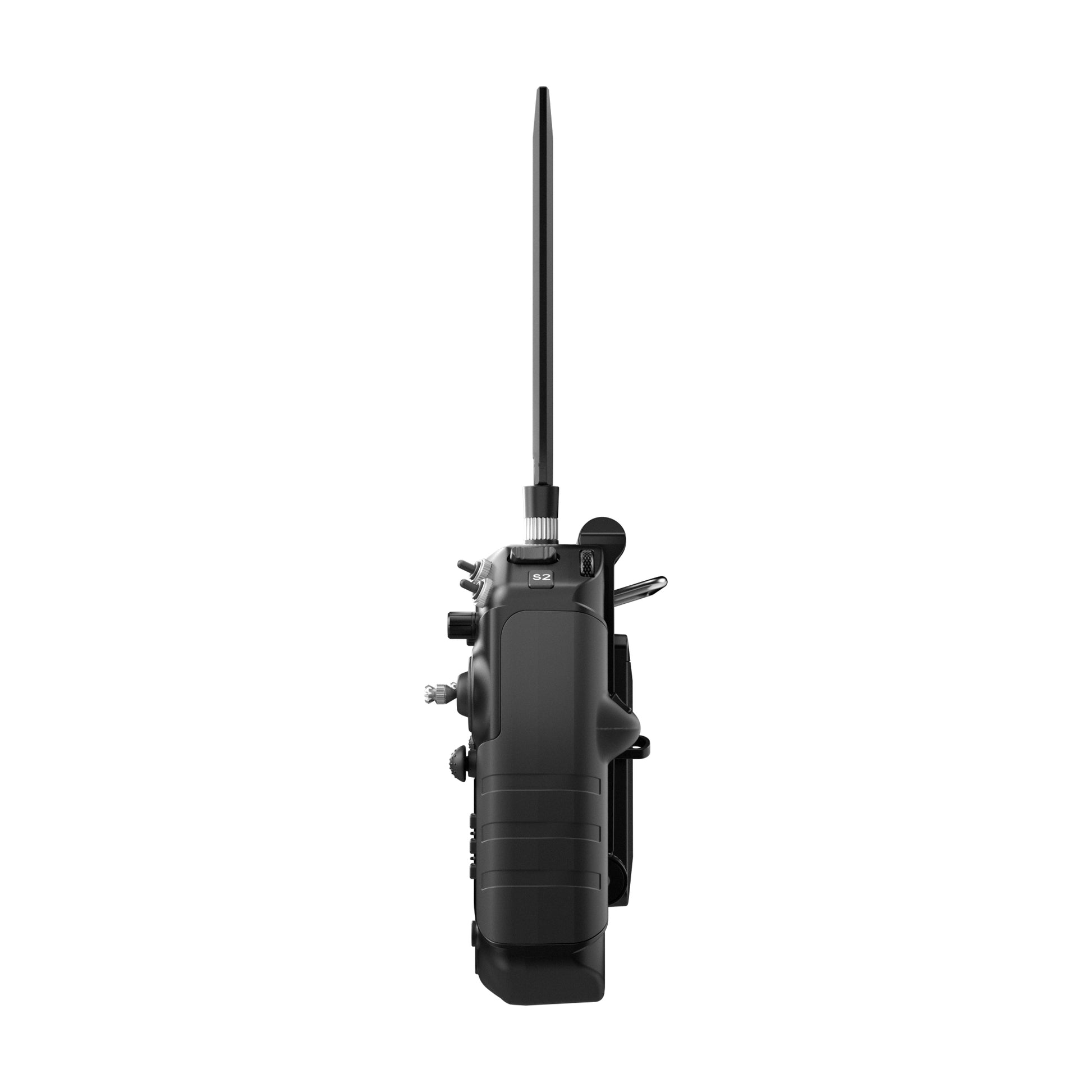

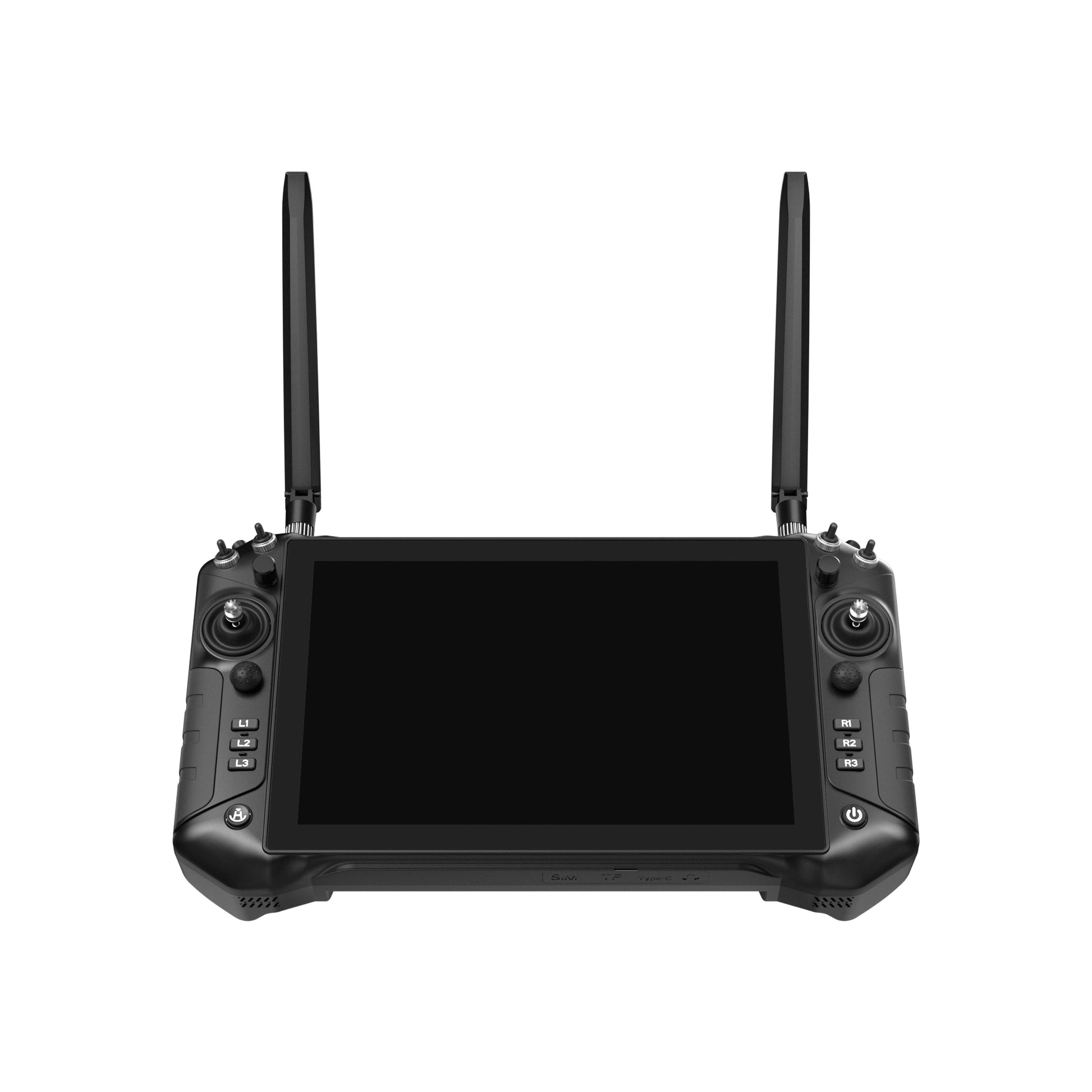

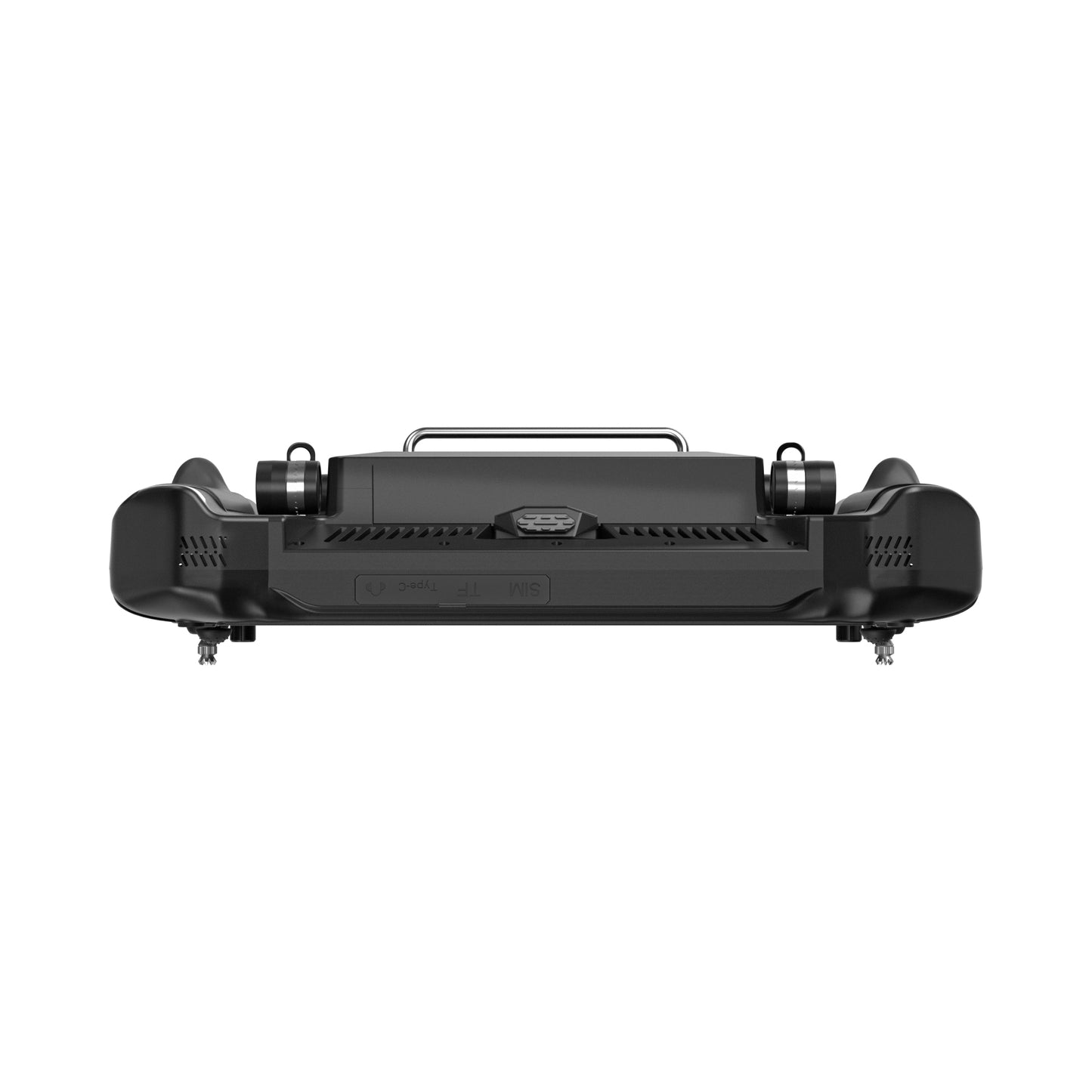

SIYI UniRC 10 Pro Triple Frequency 2.4 & 5 & X GHz Handheld Ground Station

SIYI UniRC 10 Pro is a next-generation handheld ground control station designed for professional UAV pilots, robotics engineers, and industrial operators. Built for demanding missions, it delivers long-range communication, high-brightness displays, extensive I/O interfaces, and precise multi-channel control—making it an ideal command center for drones, unmanned vehicles, and intelligent robotic systems.

Key Features

10.1’’ Ultra-Bright 2000-nit Touchscreen

Designed for outdoor operations, the UniRC 10 Pro integrates a 10.1-inch 1920×1200 Full HD display with 2000 nits of peak brightness, ensuring excellent visibility even under direct sunlight.

Triple-Band Redundant Link (2.4 GHz / 5.8 GHz / X-Band)

Built for complex electromagnetic environments, UniRC 10 Pro supports three independent communication bands, improving anti-interference performance and ensuring a stable command link for long-range operations.

Up to 45 km Long-Range Image & Control Transmission

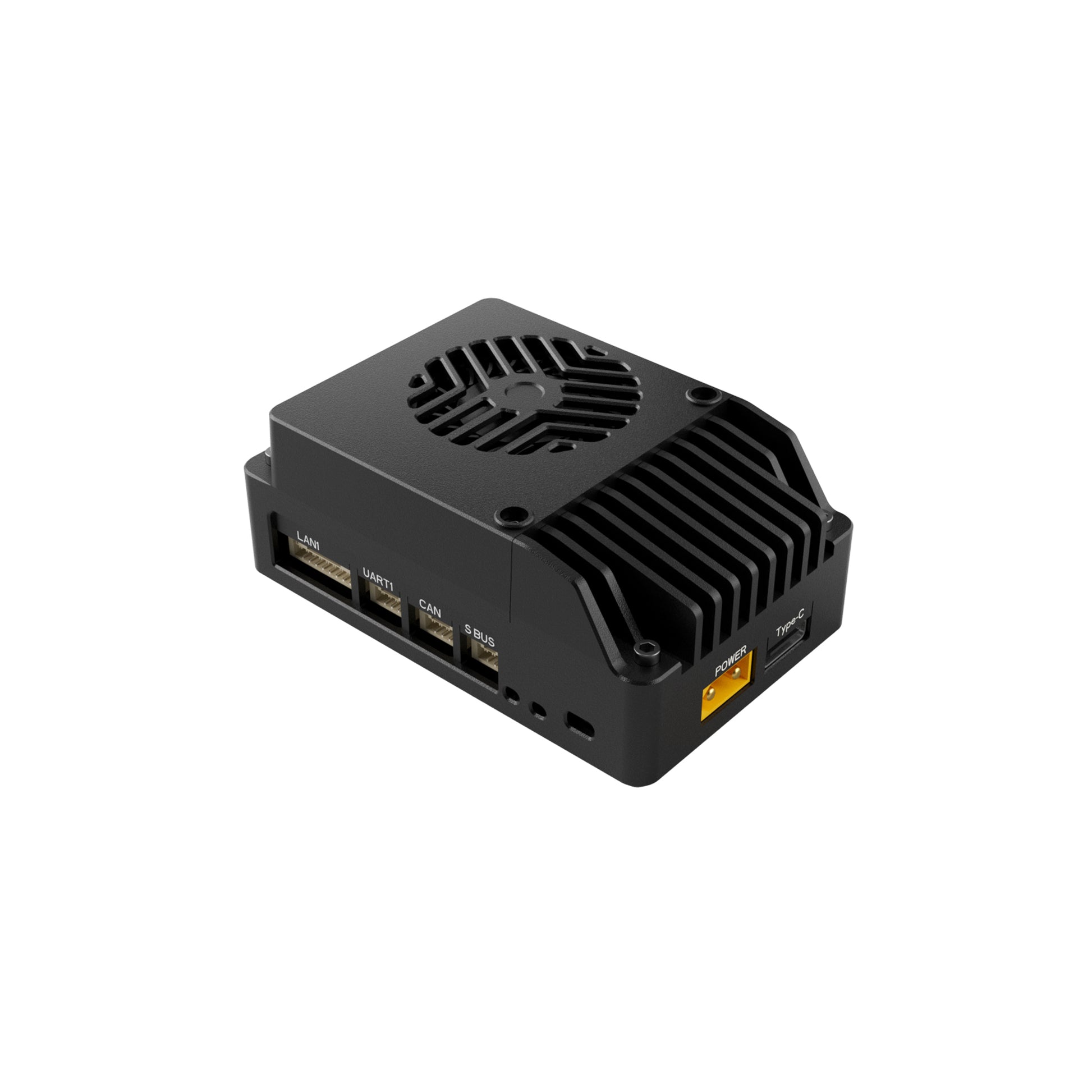

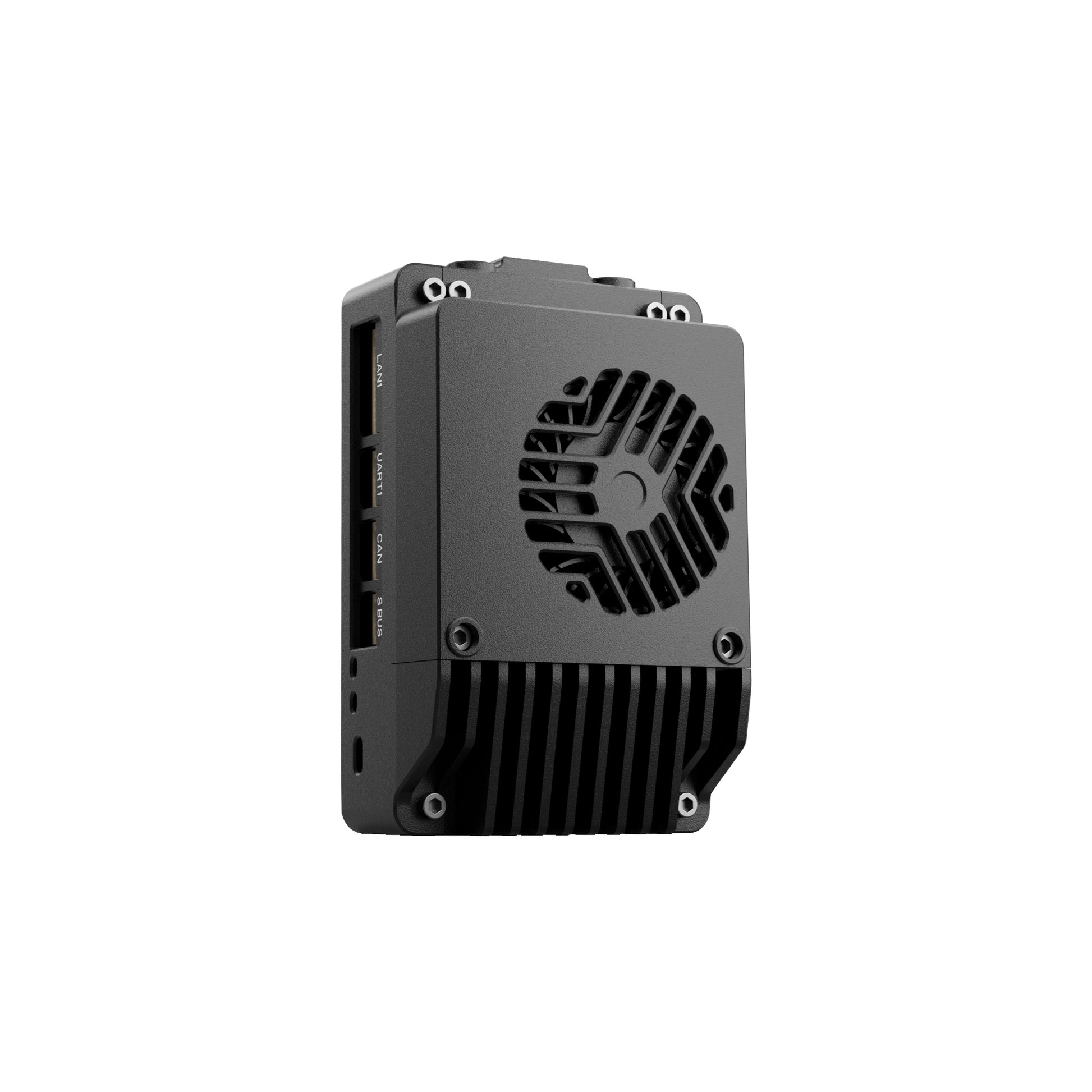

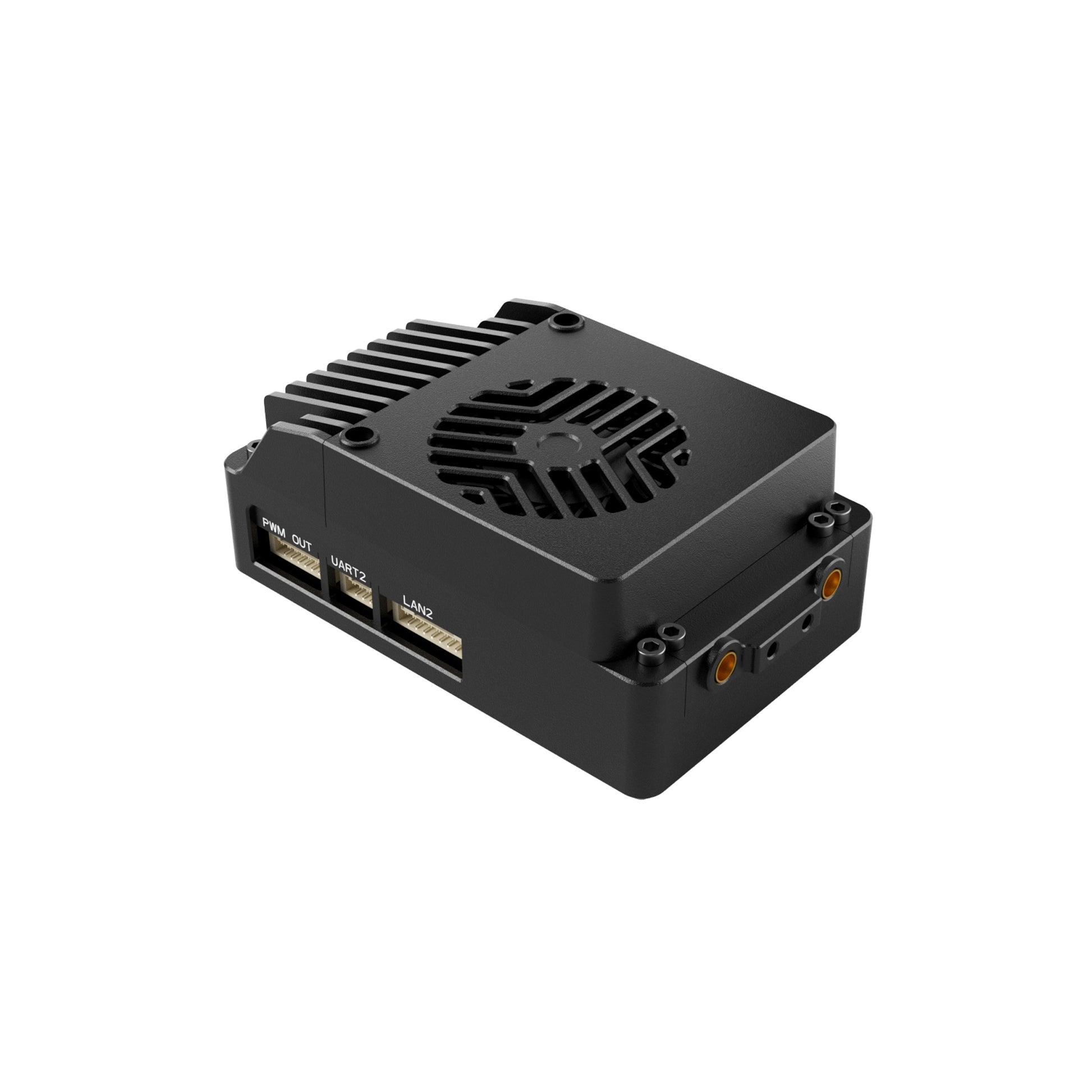

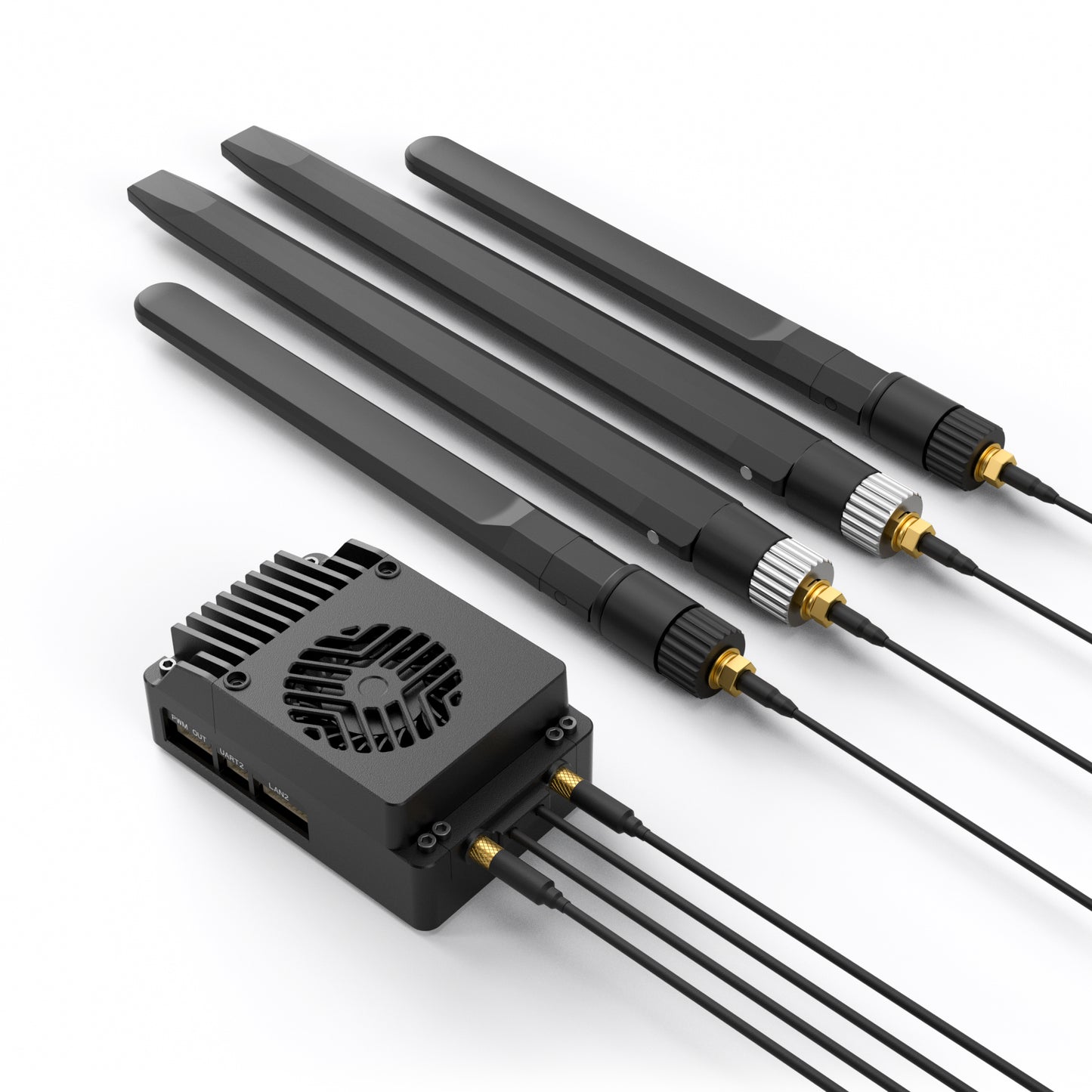

Depending on paired SIYI link hardware, the system can achieve up to 45 km of stable image + command transmission—ideal for surveillance, inspections, mapping, and remote robotics operations.

27 Physical Channels for Precision Control

The controller provides 27 customizable physical channels, including dual Hall-sensor joysticks, knobs, switches, dials, and function keys—allowing operators to control multi-payload drones or complex robotic platforms with ease and precision.

Industrial-Grade Outdoor Durability

With IP54 dust and splash protection, high-brightness display, and rugged structure, UniRC 10 Pro is built to withstand field conditions such as dust, moisture, temperature changes, and long working hours.

Android 13 + Octa-Core Processor

Powered by Android 13, an 8-core high-performance SoC, 4GB RAM, and 64GB onboard storage, the system offers smooth multi-tasking and is compatible with custom apps, mission-planning tools, and third-party software.

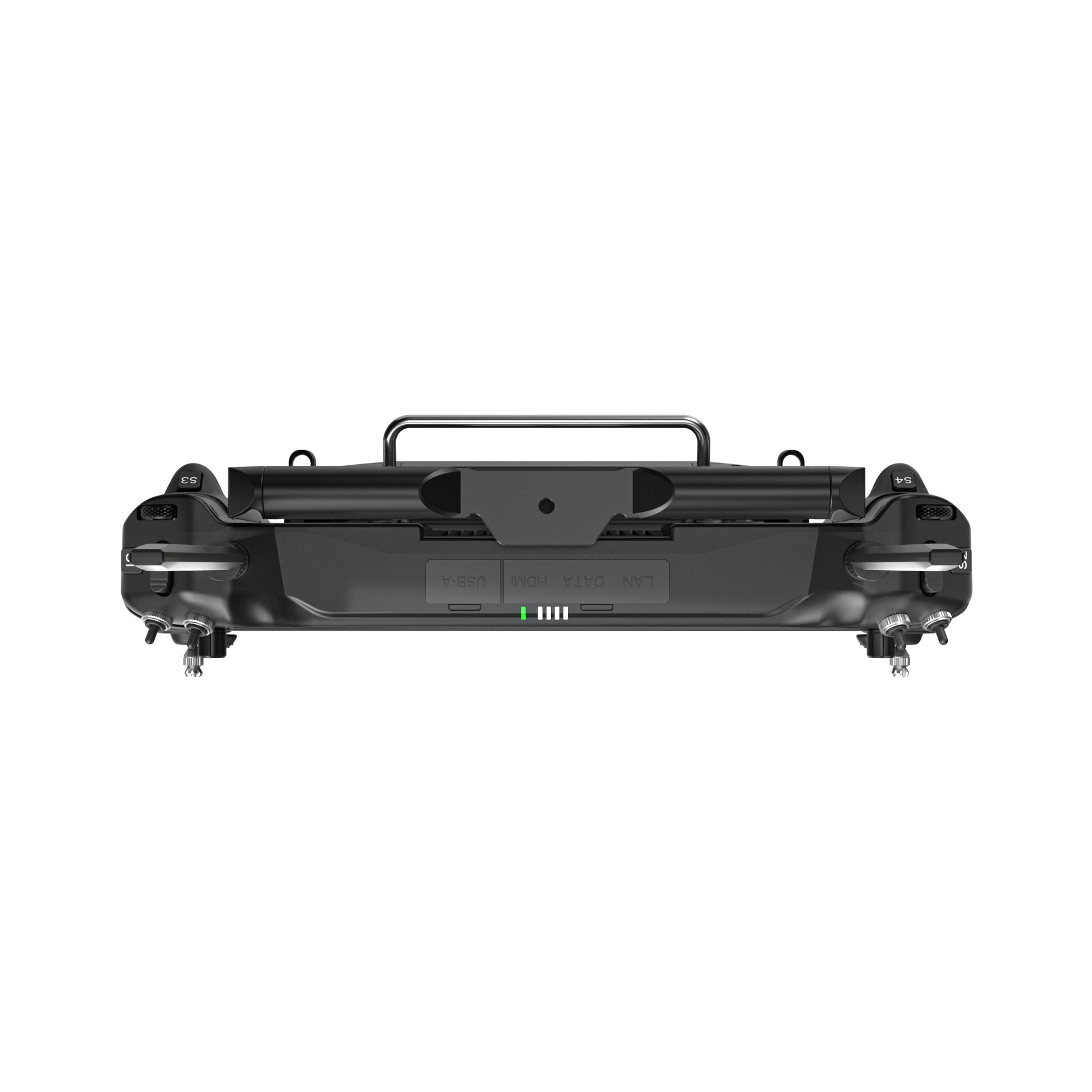

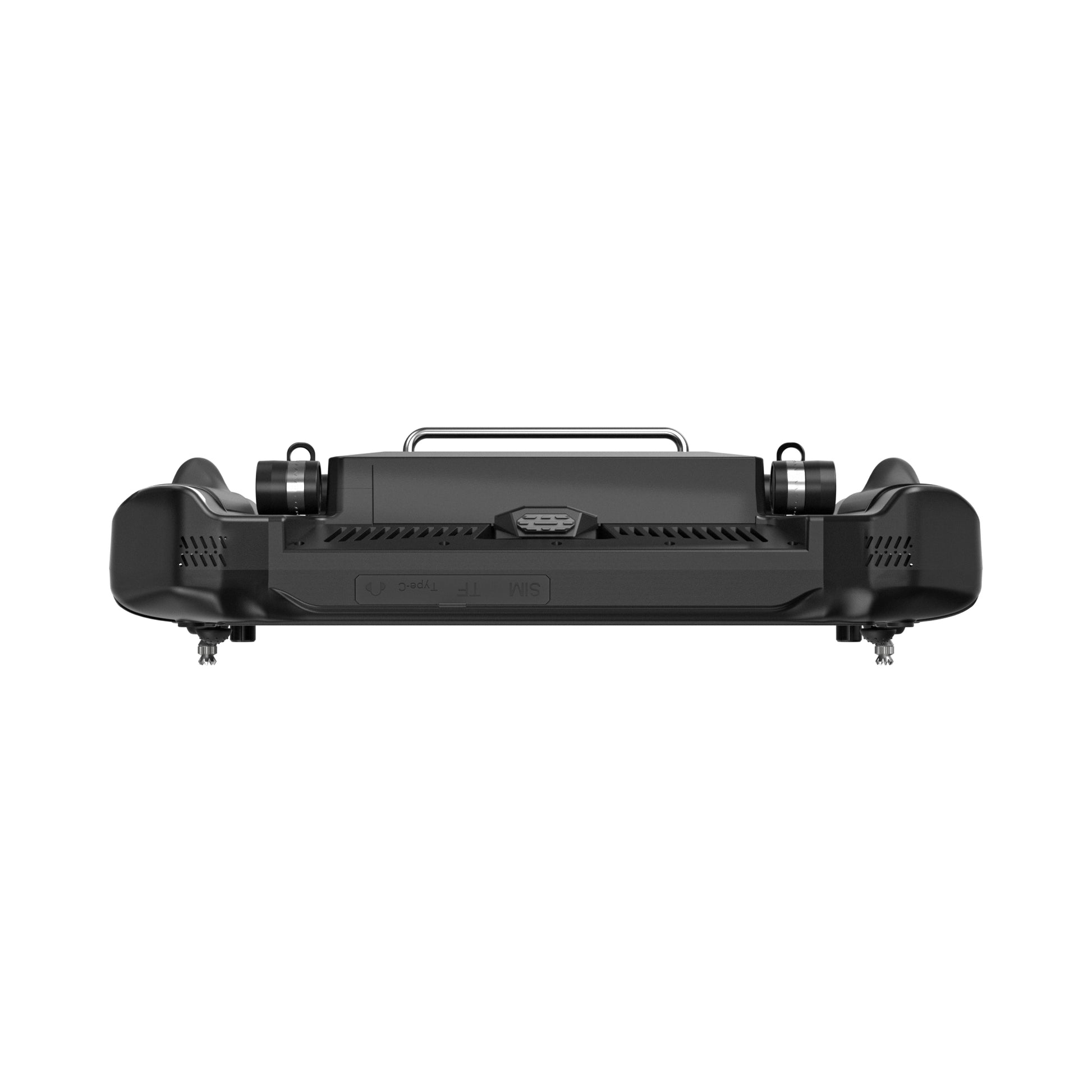

Comprehensive Interface Expansion

Equipped with a wide range of I/O ports for seamless integration:

• Ethernet / LAN Port

• HDMI Output

• USB-A & USB-C

• SIM Card Slot (LTE optional)

• TF Card Slot

• 3.5 mm Audio Port

• UART / Serial Port Support

• Bluetooth & Wi-Fi
  These interfaces allow flexible connectivity to autopilots, gimbals, sensors, Pan-Tilt units, ground robots, and various external payloads.

Dual-Battery Power System with Hot-Swap

UniRC 10 Pro uses internal battery + external battery architecture and supports hot-swap, enabling continuous operation during long missions without shutting down the device.

Specifications

Display:    10.1" 1920×1200 Touchscreen, 2000 nits
OS:    Android 13
Processor:    Octa-core SoC
RAM / ROM:    4 GB + 64 GB
Transmission:    2.4 GHz / 5.8 GHz / X-Band, up to 45 km
Physical Channels:    27-channel configuration
Interfaces:    Ethernet, HDMI, USB-A, USB-C, SIM, TF, Audio Jack, UART
Protection:    IP54
Power:    Internal + External Battery (Hot-Swappable)

What’s in the Box?

• SIYI UniRC 10 Pro handheld ground station (main unit).

• Hot-swap battery ×1 (installed) + spare battery (depending on SKU / bundle).

• Power adapter / charging cable.

• Carrying strap / shoulder harness or protective holder (bundle dependent).

• Quick start guide & safety manual.

• Warranty card & accessory screws / mounts (depending on bundle).

Why choose the SIYI UniRC 10 Pro?

• Mission reliability: Triple-frequency redundancy plus AES encryption reduces link risk and strengthens operations in crowded RF environments.

• True outdoor usability: A 2000-nit display and IP54 rating mean you can monitor high-resolution video and control assets reliably under bright daylight and in the elements.

• Precision operator controls: Hall-sensor joysticks and 27 customizable channels allow fine, low-latency control of complex payloads and multi-vehicle setups.

• Open & extensible: Android-based platform with ample processing and storage makes it easy to run SIYI apps, third-party mission software, or integrate via SDK and Ethernet/USB interfaces.

• Field-ready endurance: Hot-swappable batteries and rugged build keep the unit operating across long missions without interrupting critical tasks.
