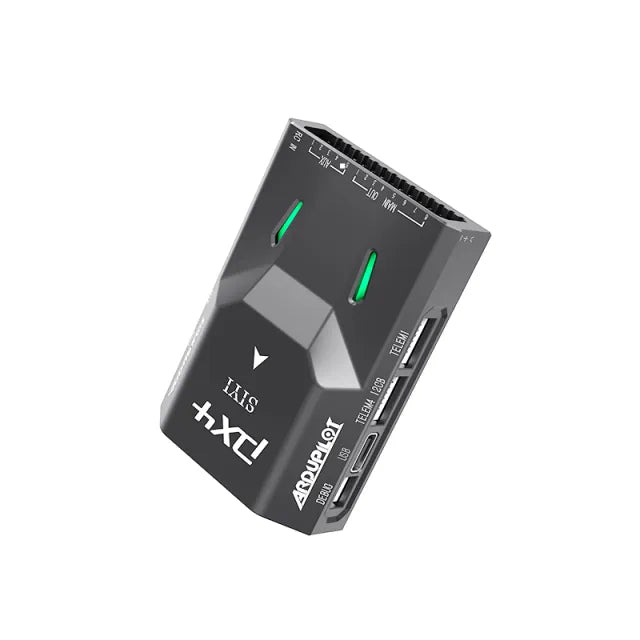

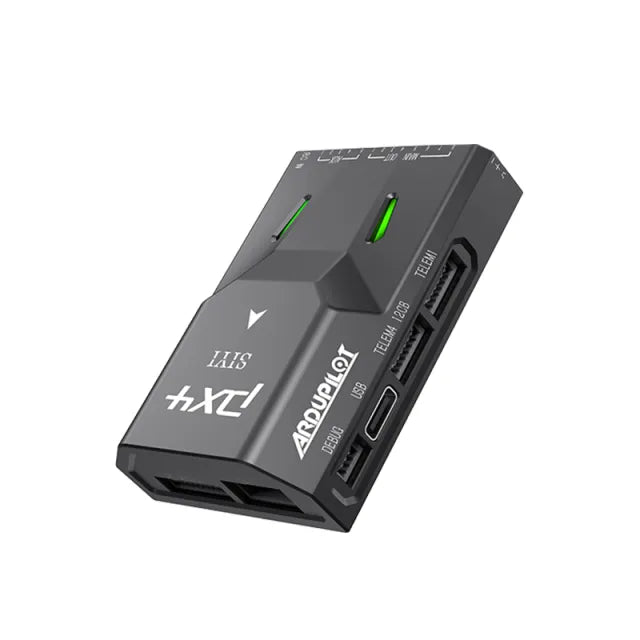

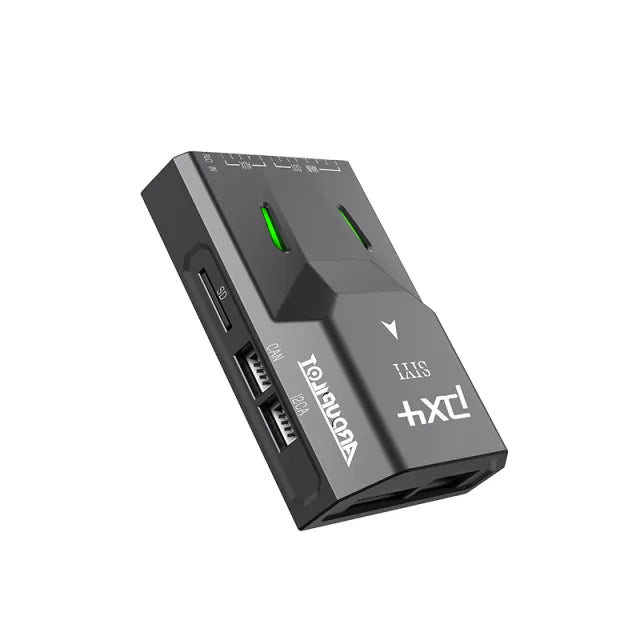

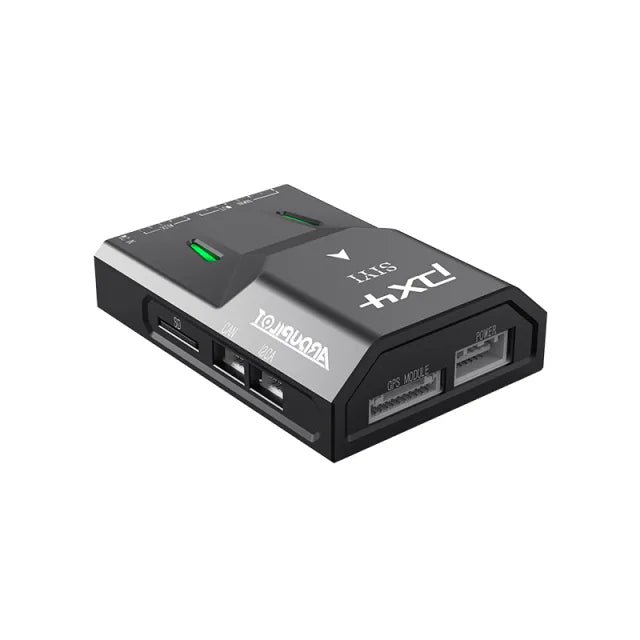

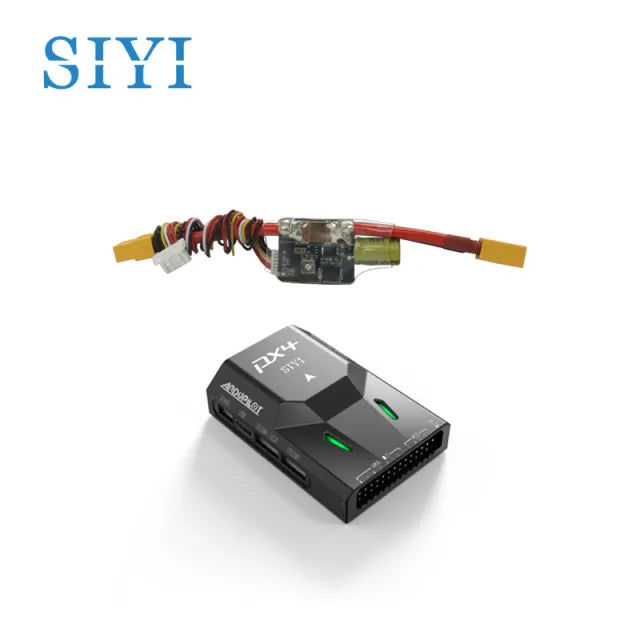

SIYI N7 Autopilot Flight Controller
SIYI N7 Autopilot Flight Controller
The SIYI N7 Autopilot Flight Controller offers advanced control and compatibility with both PX4 and Ardupilot open-source ecosystems, enabling a wide range of applications from drones and unmanned vehicles to smart robots. Built with dual IMU redundancy, shock absorption, and the powerful H7 double-precision floating-point unit processor, the N7 is designed for high reliability and performance, making it the perfect choice for enthusiasts and professionals alike.
Key Features
- Dual Firmware Compatibility: Supports both Ardupilot and PX4 ecosystems for diverse applications, including drones, unmanned vehicles, ships, and robots.
- High-Performance Processor: Equipped with the STM32H743IIK6 (32-bit ARM Cortex-M7) processor running at 480 MHz for fast, reliable performance.
- Built-in Redundancy: Dual IMU redundancy ensures high reliability and stability in complex environments.
- Shock Absorption Design: Internal shock absorption structure for enhanced durability and stability during operation.
- Wide Range of Interfaces: Offers 4 UART serial ports, 3 I2C interfaces, CAN, and 8 standard PWM outputs, providing maximum flexibility for connections.
- Compact and Lightweight: The compact 47 x 68 x 19 mm size and 57 g weight make it easy to integrate into any drone or unmanned vehicle system.
Specifications
- Main Processor: STM32H743IIK6 (32-bit ARM Cortex-M7, 480 MHz, 2 MB memory, 1 MB RAM)
- Coprocessor: STM32F103 (32-bit ARM Cortex-M3, 72 MHz, 20 KB SRAM)
-
Sensors:
- Accelerometer/Gyro: BMI088 / ICM20689
- Compass: IST8310
- Barometer: MS5611
-
External Interfaces:
- 4 x UART serial ports
- 3 x I2C
- 1 x CAN

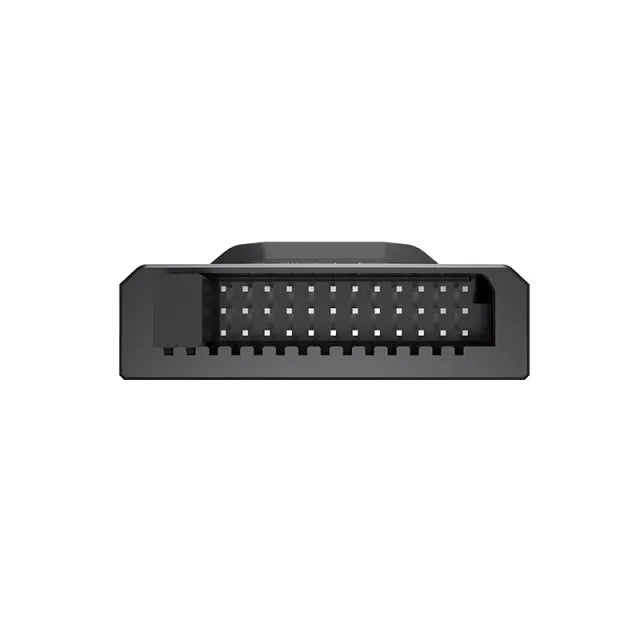

- 8 x Standard PWM IO, 5 x Programmable IO
- 1 x SBUS RC input

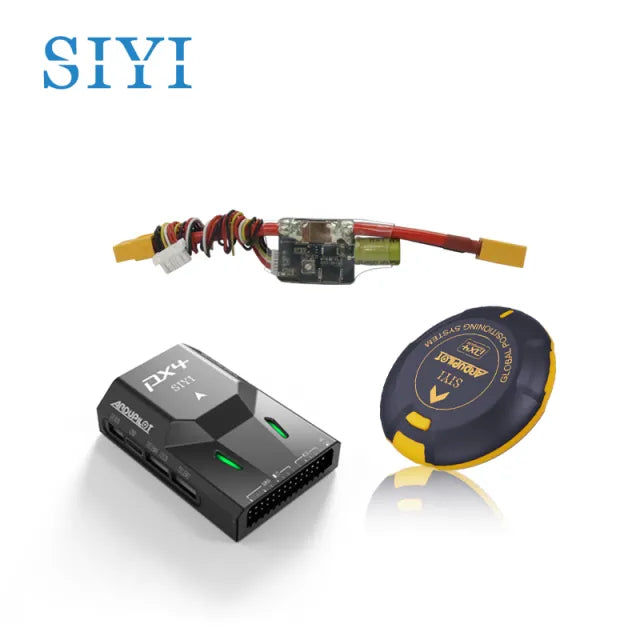

- 1 x GPS & safety input

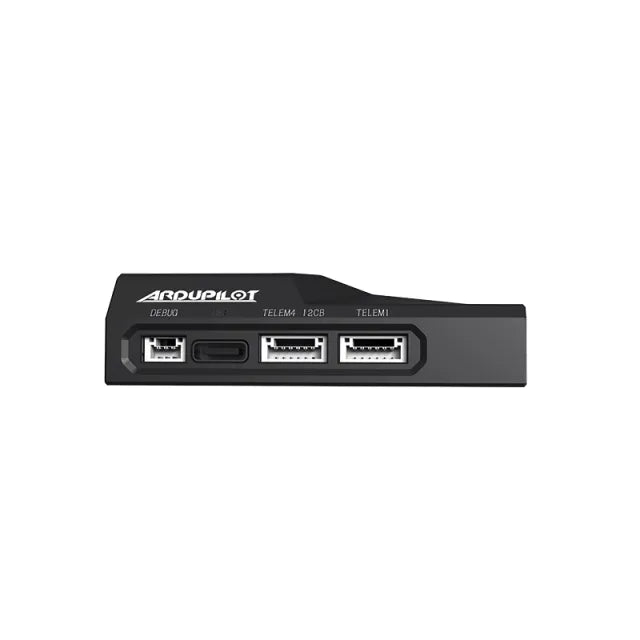

- 1 x Type-C USB

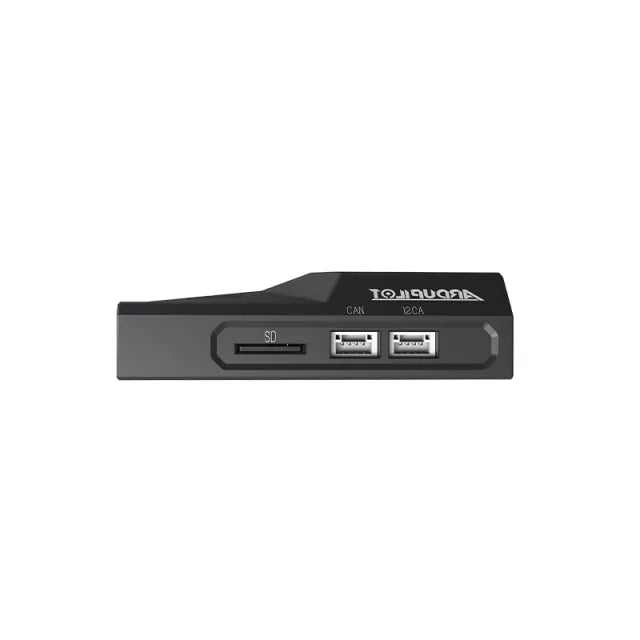

- 1 x TF card slot
-
Power Supply:
- Power Module Input: 4.5 ~ 5.5V
- USB Voltage Input: 5V (±0.25V)
- Servo Voltage Input: 0 ~ 10V
- Operating Temperature: -20 ℃ to 65 ℃
- Dimensions: 47 x 68 x 19 mm
- Weight: 57 g
Why You Should Buy
The SIYI N7 Autopilot Flight Controller is an ideal solution for those seeking versatility, reliability, and performance. With compatibility across two major open-source ecosystems (PX4 and Ardupilot), it provides users with a wide range of applications, from hobbyist projects to professional UAVs and robotics. Its advanced hardware and built-in redundancy offer enhanced safety and reliability, making it a strong choice for both enthusiasts and industry professionals.
