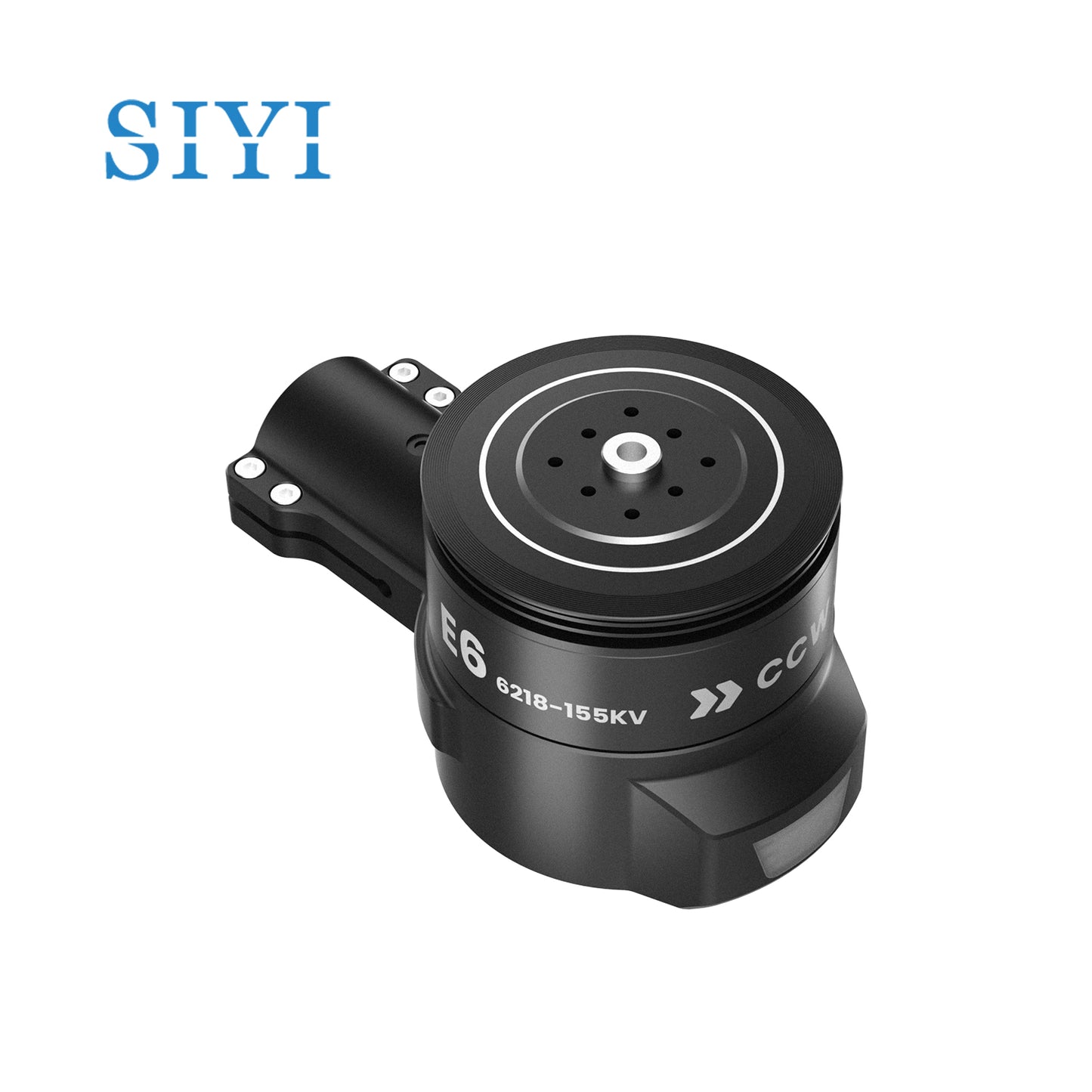

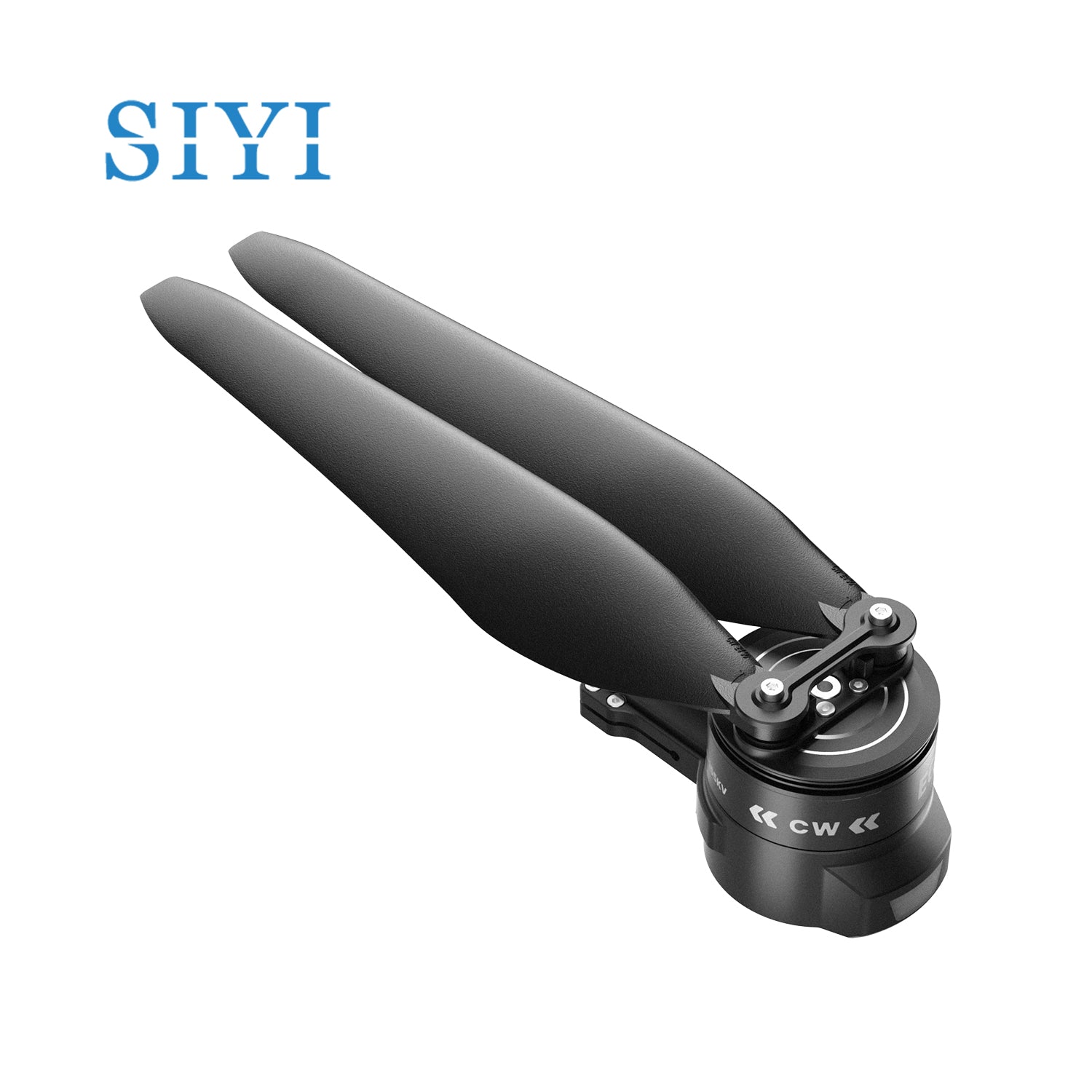

SIYI E6 Propulsion System
SIYI E6 Propulsion System
Couldn't load pickup availability
Key Features
-
High Thrust Per Rotor: rated up to 6 kg per rotor in typical use.
-
Excellent Efficiency: up to ~7.0 g/W thrust-to-power ratio.
-

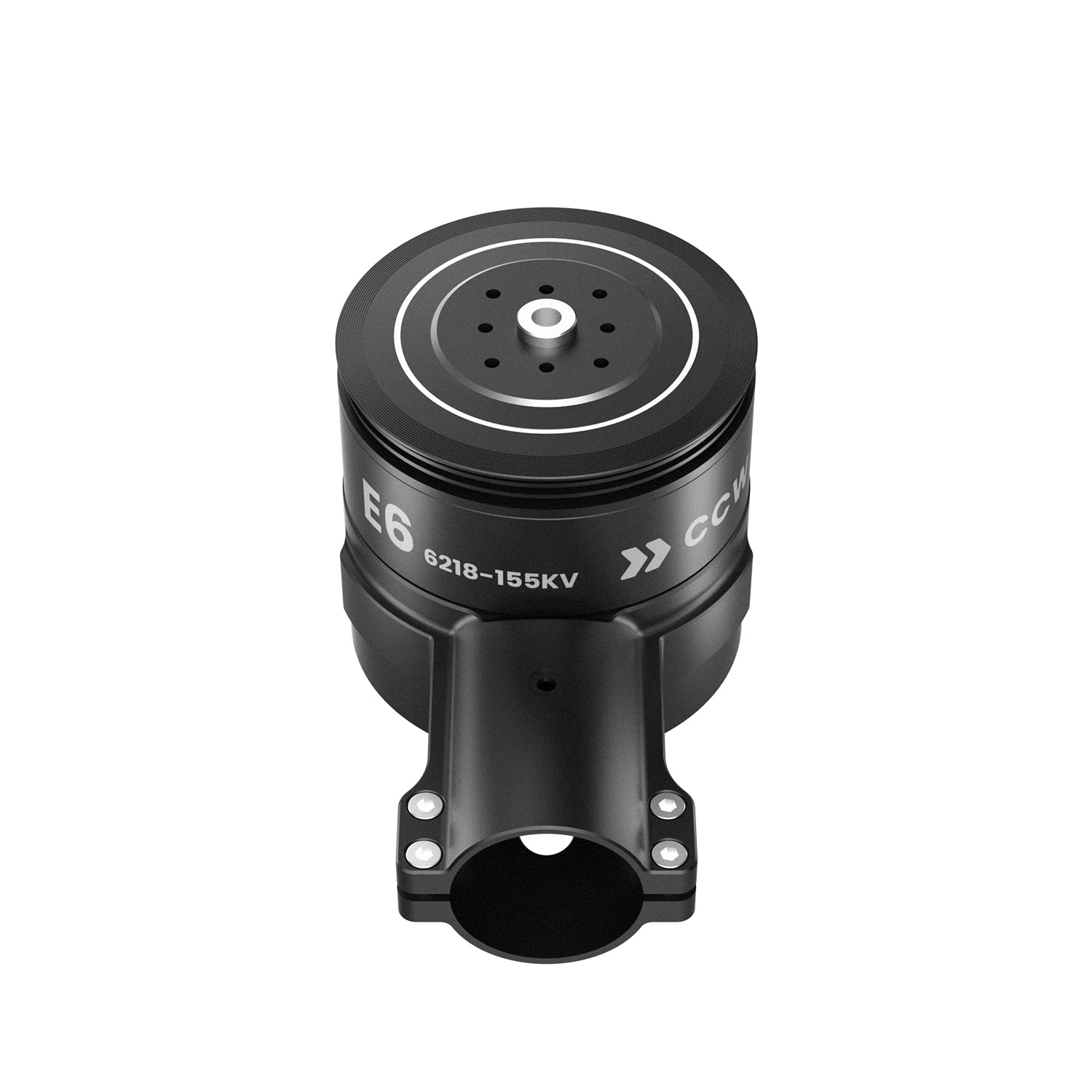

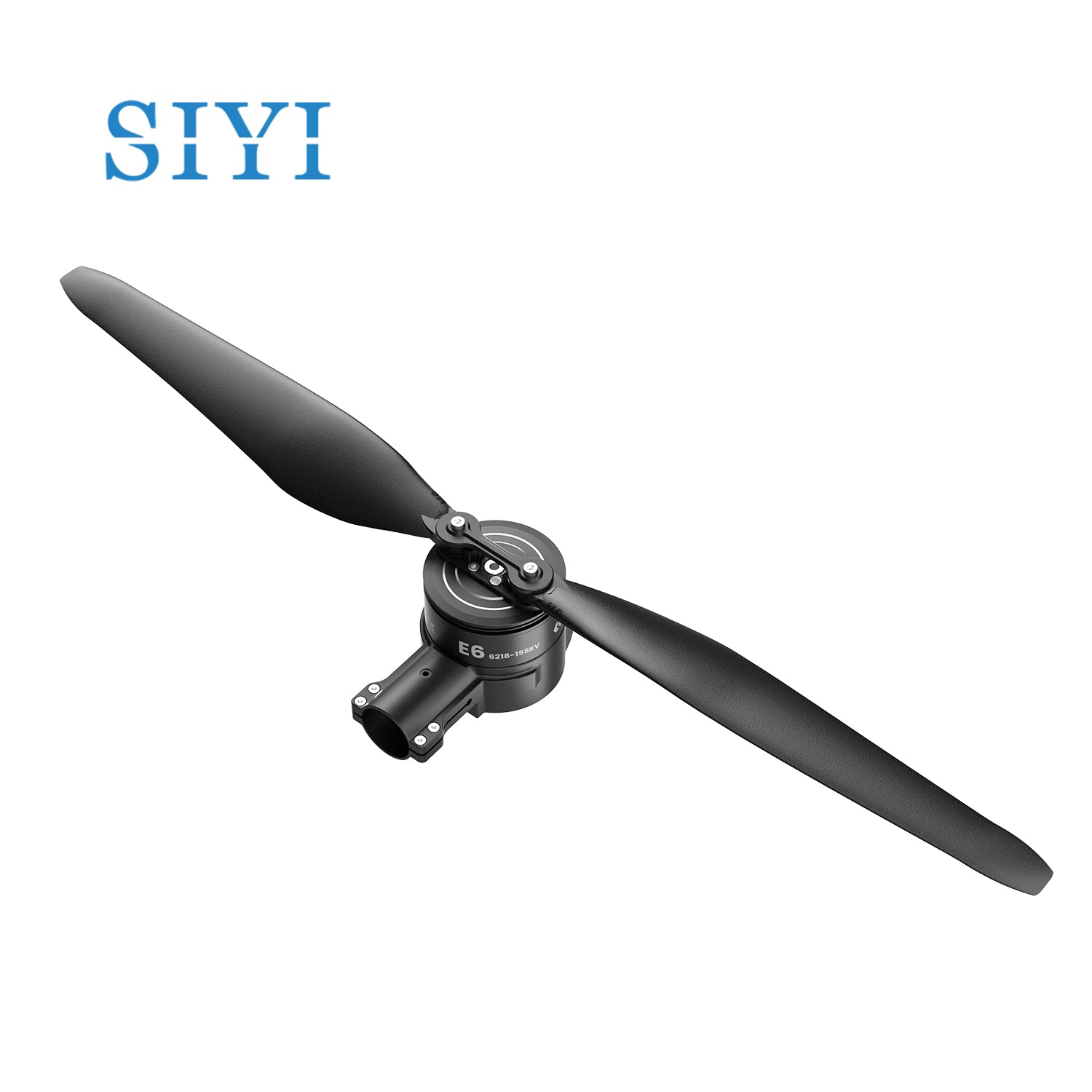

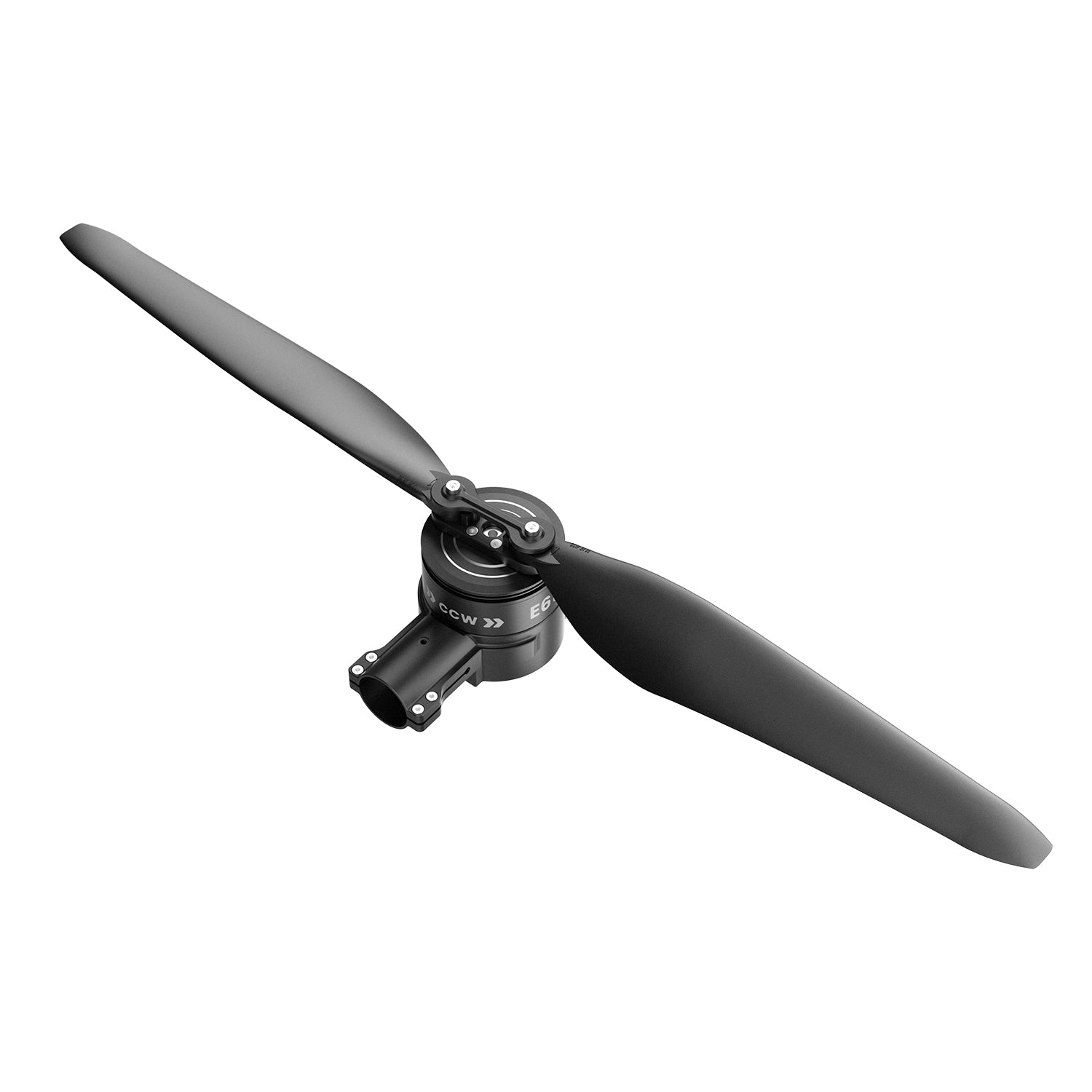

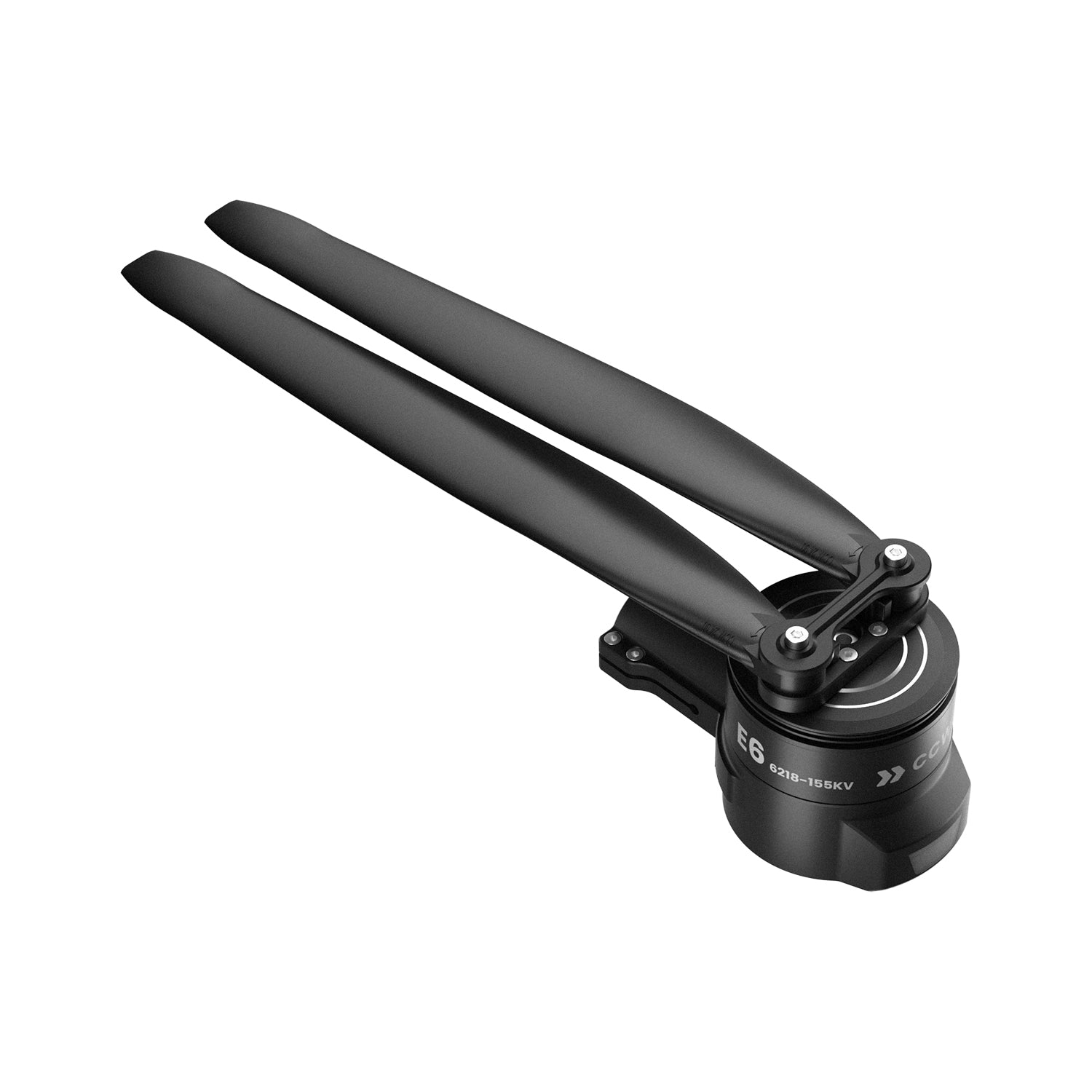

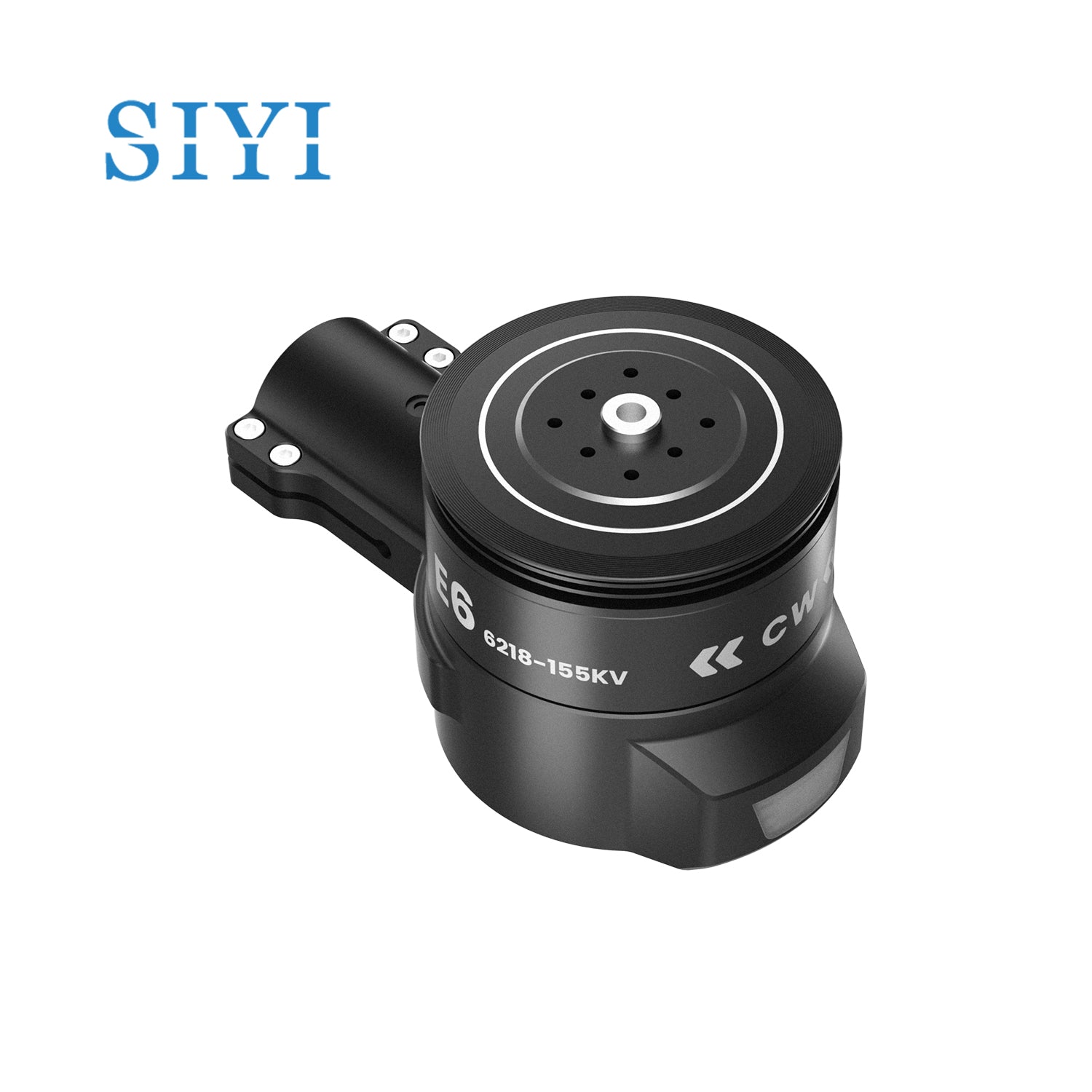

Modular, Integrated design: the system combines motor + ESC + mounting into a ready-to-use propulsion unit, simplifying installation.
-
Dual throttle redundancy: supports both PWM and CAN interface for throttle signals, enhancing safety and fault-tolerance.
-

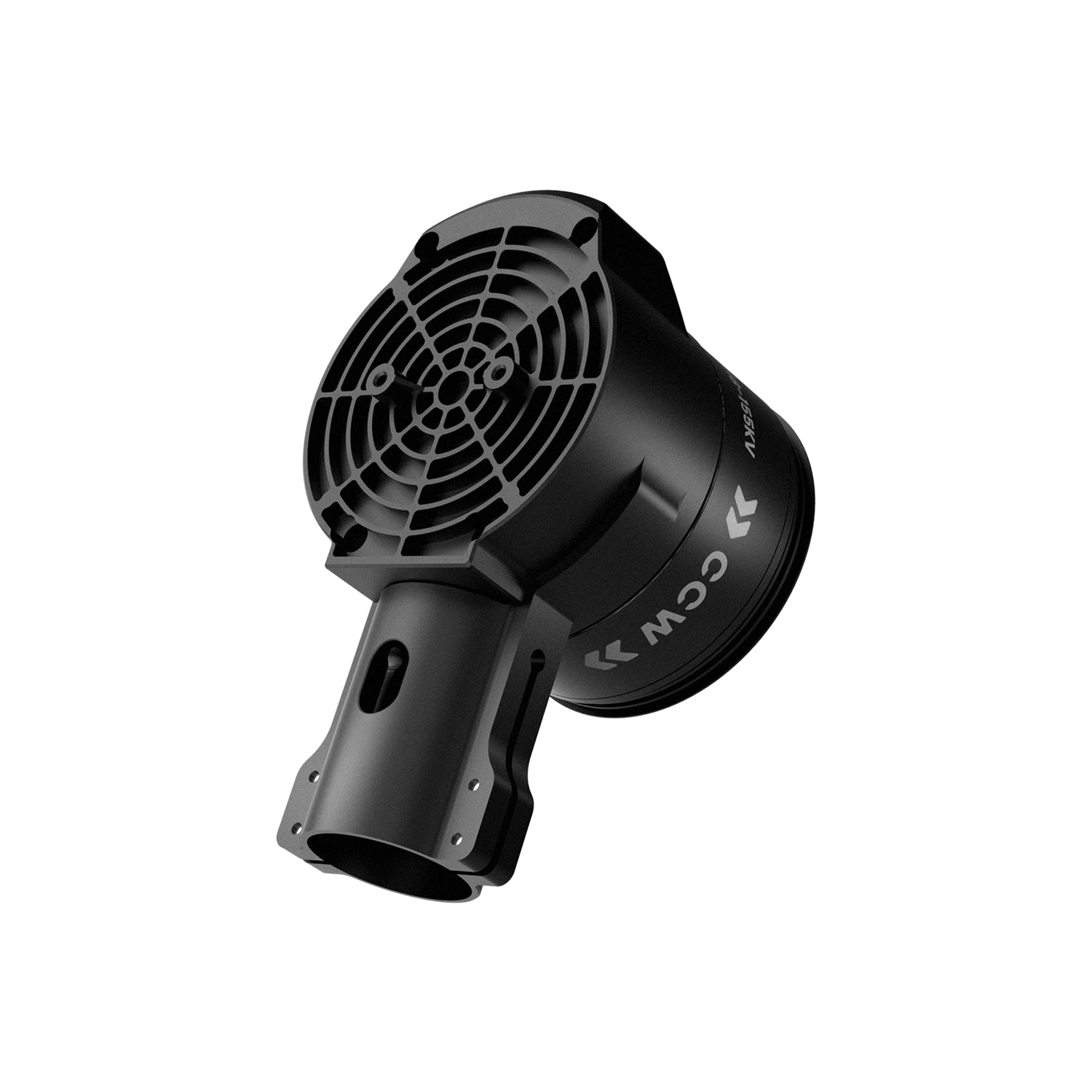

High Reliability & Rugged Build: IPX6 protection rating, pot-sealed ESC, centrifugal fan motor cooling, industrial-grade bearings, and insulation for long service life.
-
Open-platform Compatible: Supports common drone control ecosystems like ArduPilot and PX4 via CAN/UAVCAN, making it suitable for both commercial and research UAVs.
Specifications
Here is a structured summary of the technical specs:
| Category | Specification |
|---|---|
| Overall | Product weight: ~825 g (with propellers) |
| Voltage platform: up to 63 V (12–14S LiPo recommended) | |
| Compatible mounting tube diameter: Φ 30 mm | |
| Signal support: CAN / PWM (5 V & 3.3 V) | |
| Protection rating: IPX6 | |
| Thrust | Maximum thrust per rotor: up to ~12.5 kg (single axis, sea level) |
| Recommended take-off weight per rotor: 3-6 kg | |
| ESC (Electronic Speed Controller) | Peak current: 120 A |
| Maximum continuous current: ~70 A (some sources say ~60A) | |
| Maximum voltage: 63 V | |
| Communication protocol: CAN (supports PWM fallback) | |
| Motor | Stator size: 62 × 18 mm |
| KV rating: ~155 KV | |

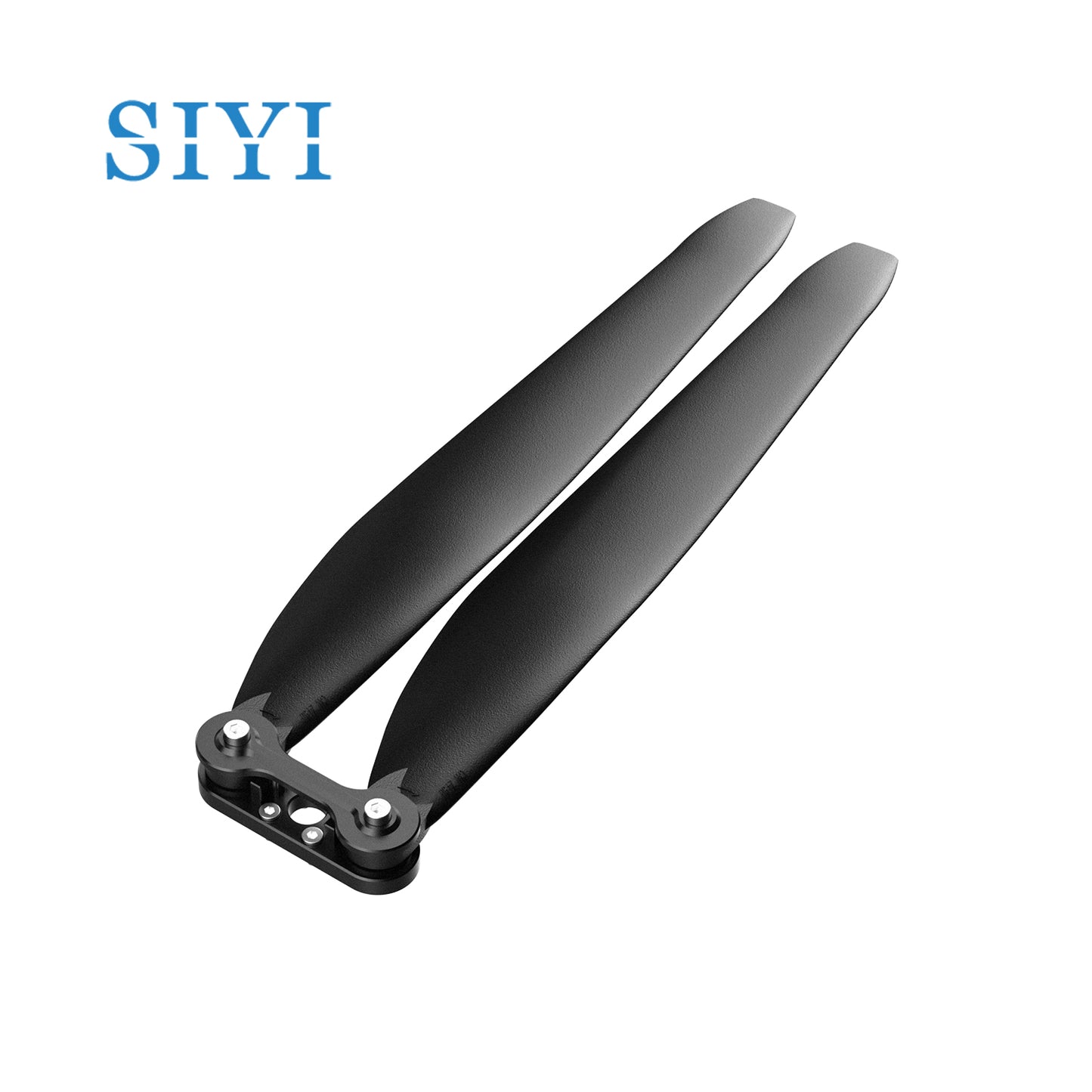

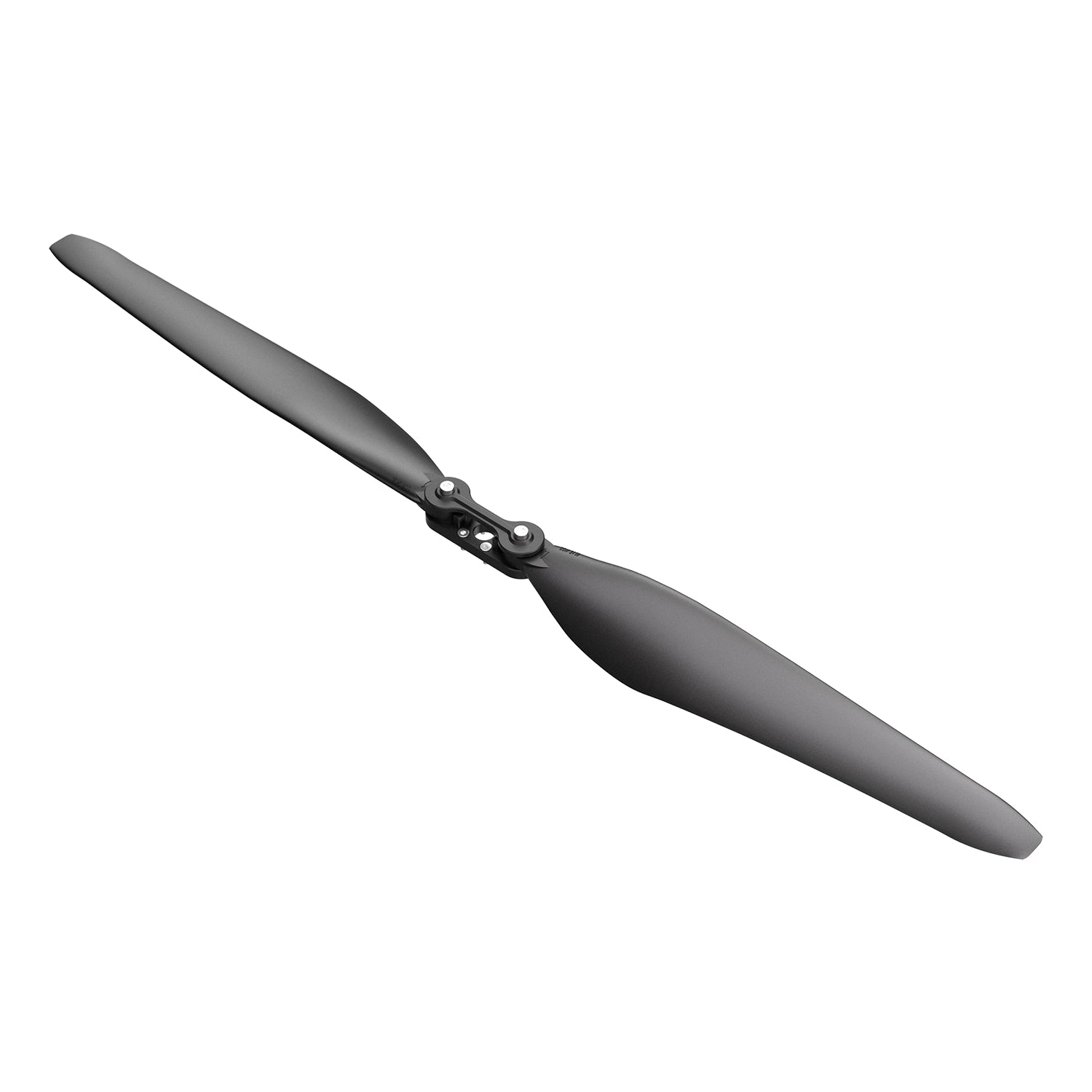

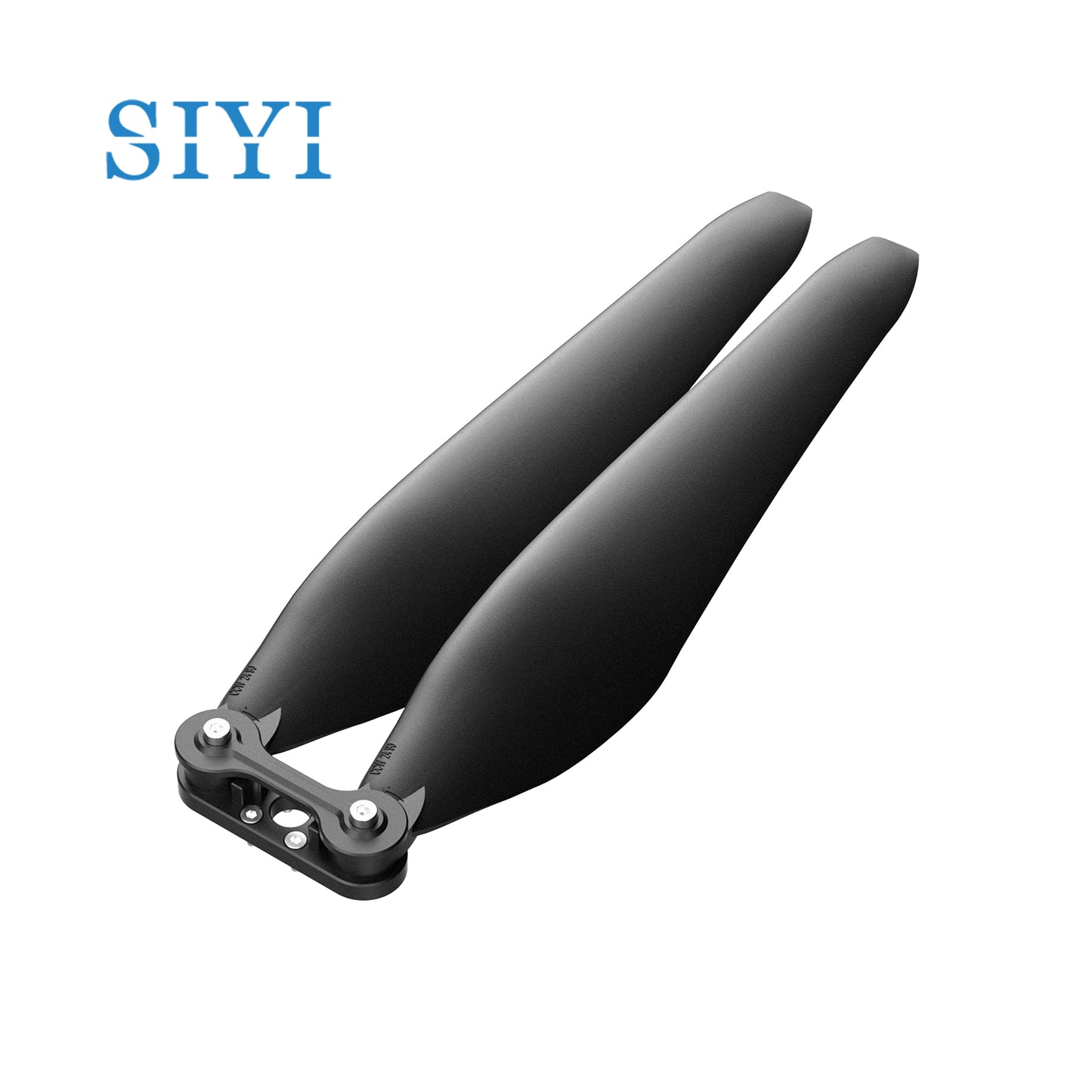

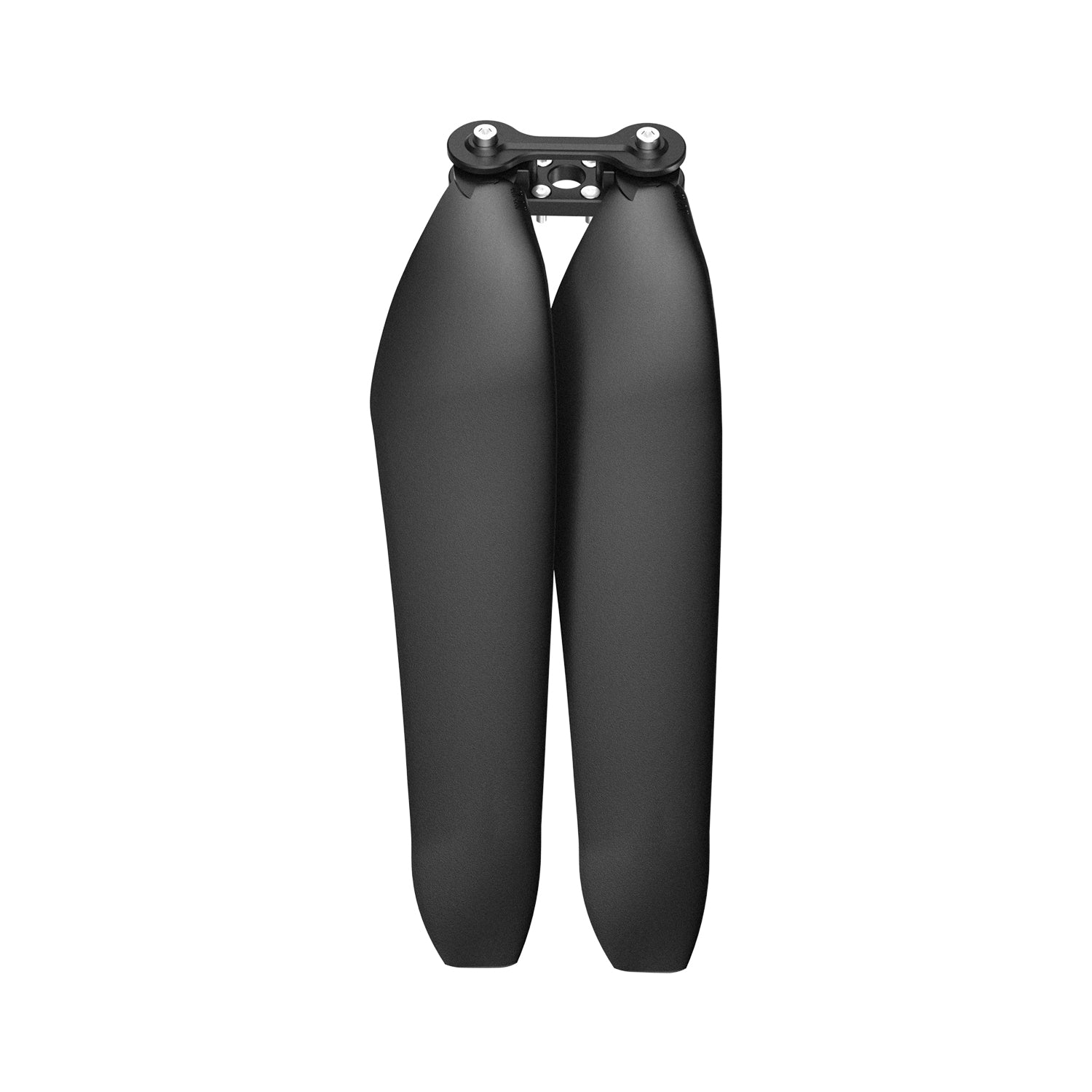

| Propeller | Typical size: 24 × 9.0 inch (foldable) |
| Material: Carbon-fiber reinforced nylon composite | |
| Operating environment | Temperature range: -20 °C to +50 °C |
What’s in the Box
According to the user manual, the typical packing list includes:
-
1 × E6 Propulsion System (motor + ESC unit, either CW or CCW version)
-
1 × Foldable Propeller (CW or CCW)
-
1 × Propeller Strap
-
4 × M3 × 8 mm hex socket screws
Why Choose the SIYI E6 Propulsion System
-
High-Power Capability – With thrust levels up to 6 kg per rotor and excellent efficiency (~7 g/W), this system is ideal for mid-sized drones carrying moderate payloads.
-
Integrated & Easy to Deploy – The modular design means fewer individual components to assemble and less integration hassle; installation is faster and cleaner.
-
Robust & Professional Grade – IPX6 protection, pot-sealed ESC, cooling fan, and industrial motor design mean this system is built for demanding environments and professional UAV applications.
-
Safety & Redundancy – Dual throttle (PWM + CAN) offers greater fault tolerance. Real-time feedback and error logging further add reliability for mission-critical operations.
-
Flexible Ecosystem Compatibility – Supports both open-source and commercial control systems (ArduPilot, PX4, DroneCAN), making it suitable for both custom research platforms and commercial deployments.
-
Optimized for Efficiency – The carbon-fiber composite foldable propellers and high-efficiency design contribute to longer flight times and reduced energy consumption.
