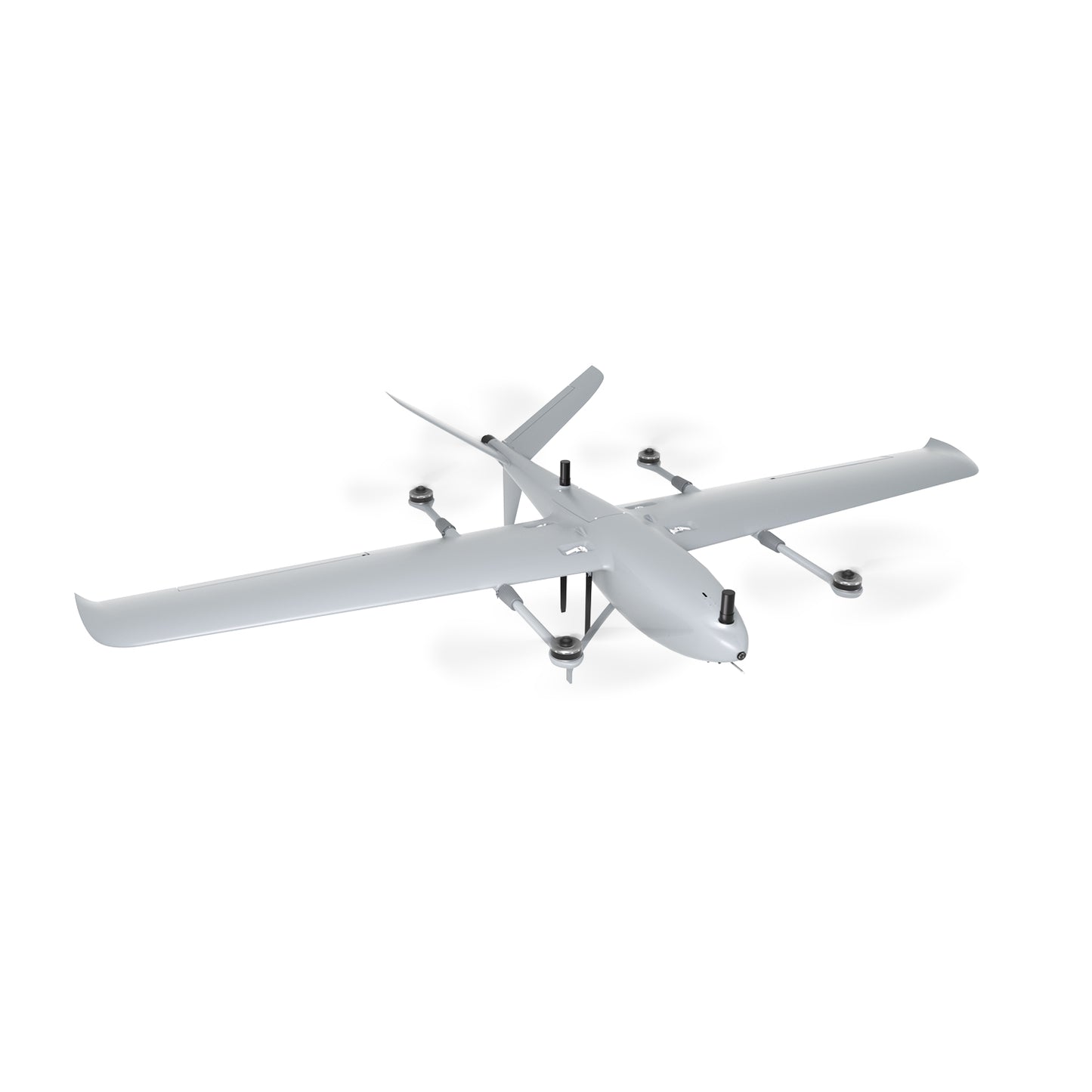

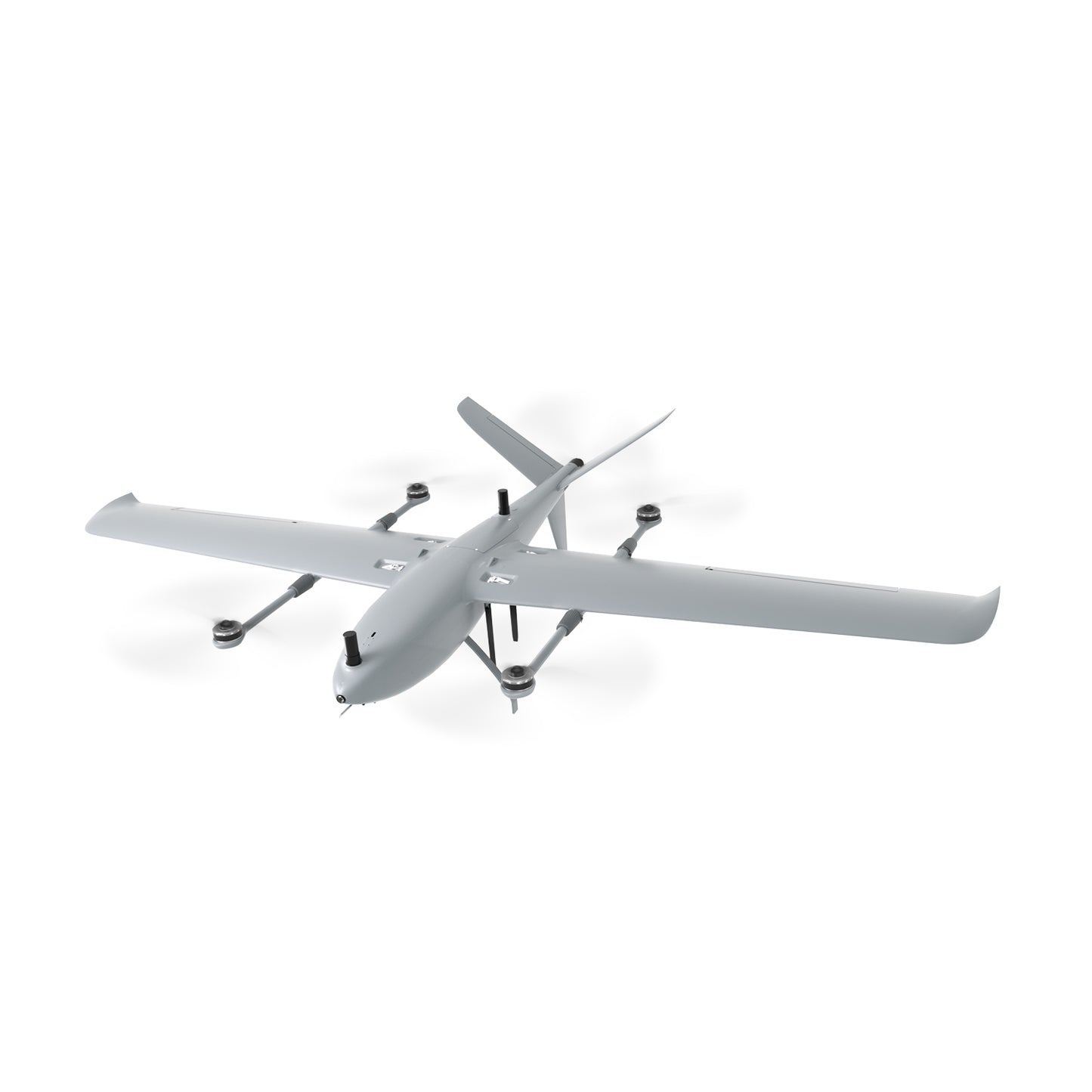

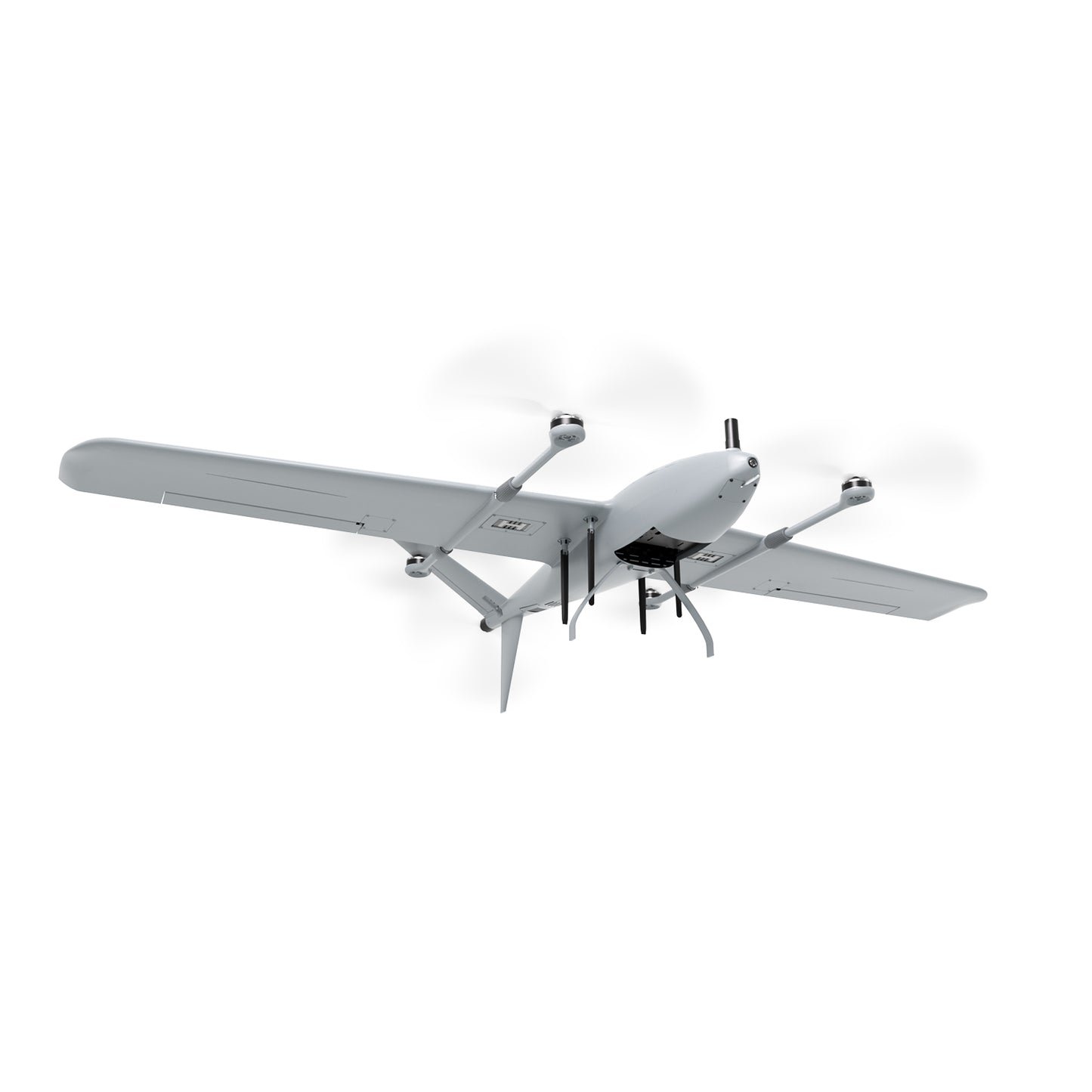

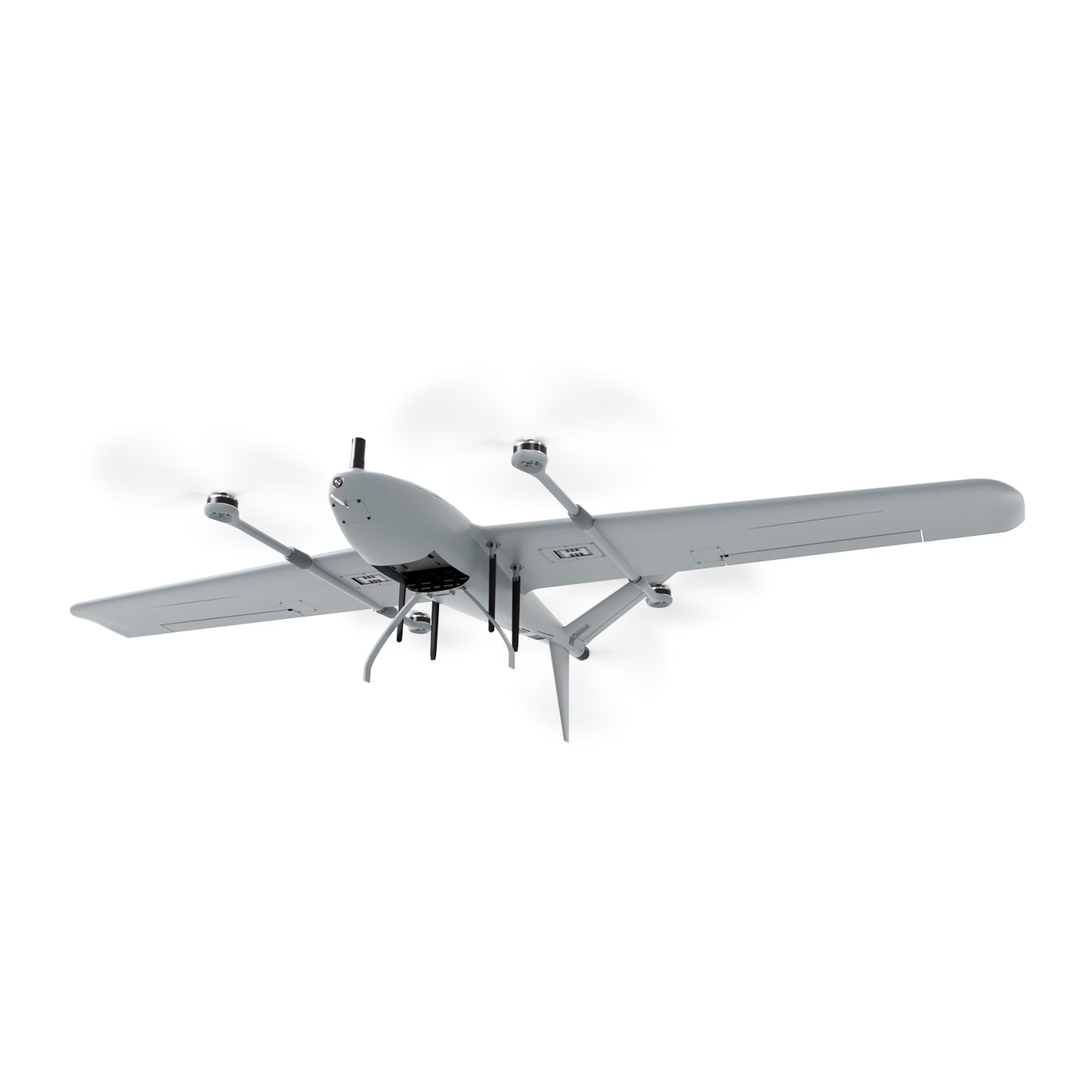

Reebot Robotics UniVTOL V2200 Drone Platform

The Reebot Robotics UniVTOL V2200 Drone Platform is an advanced industrial-grade VTOL fixed-wing drone, engineered for high-endurance aerial missions such as mapping, surveying, industrial inspections, and surveillance. This multipurpose UAV integrates cutting-edge aerodynamics, intelligent AI capabilities, and centimeter-level RTK positioning, making it an optimal choice for enterprises requiring precision, efficiency, and long-range data acquisition.

With a 125-minute max flight time, 40 km transmission range, and highly modular design, the UniVTOL V2200 is designed to enhance operational productivity, adaptability, and ease of deployment. It supports multiple payload configurations, including orthophoto cameras, optical pods, and multispectral sensors, allowing professionals to conduct large-scale terrain mapping, infrastructure monitoring, and remote sensing detection with high precision.

Key Features

• Long Flight Endurance: Up to 125 minutes (no payload), 90 minutes (with ZT30 Optical Pod).
• High Payload Capacity: Supports up to 1 kg of professional-grade payloads.
• High-Speed Performance: Cruise speed of 18m/s, max speed of 25m/s.
• Strong Wind Resistance: Level 4 (multirotor mode), Level 5 (fixed-wing mode).
• 40KM Transmission Range: Dual-frequency redundancy for stable and long-range control.

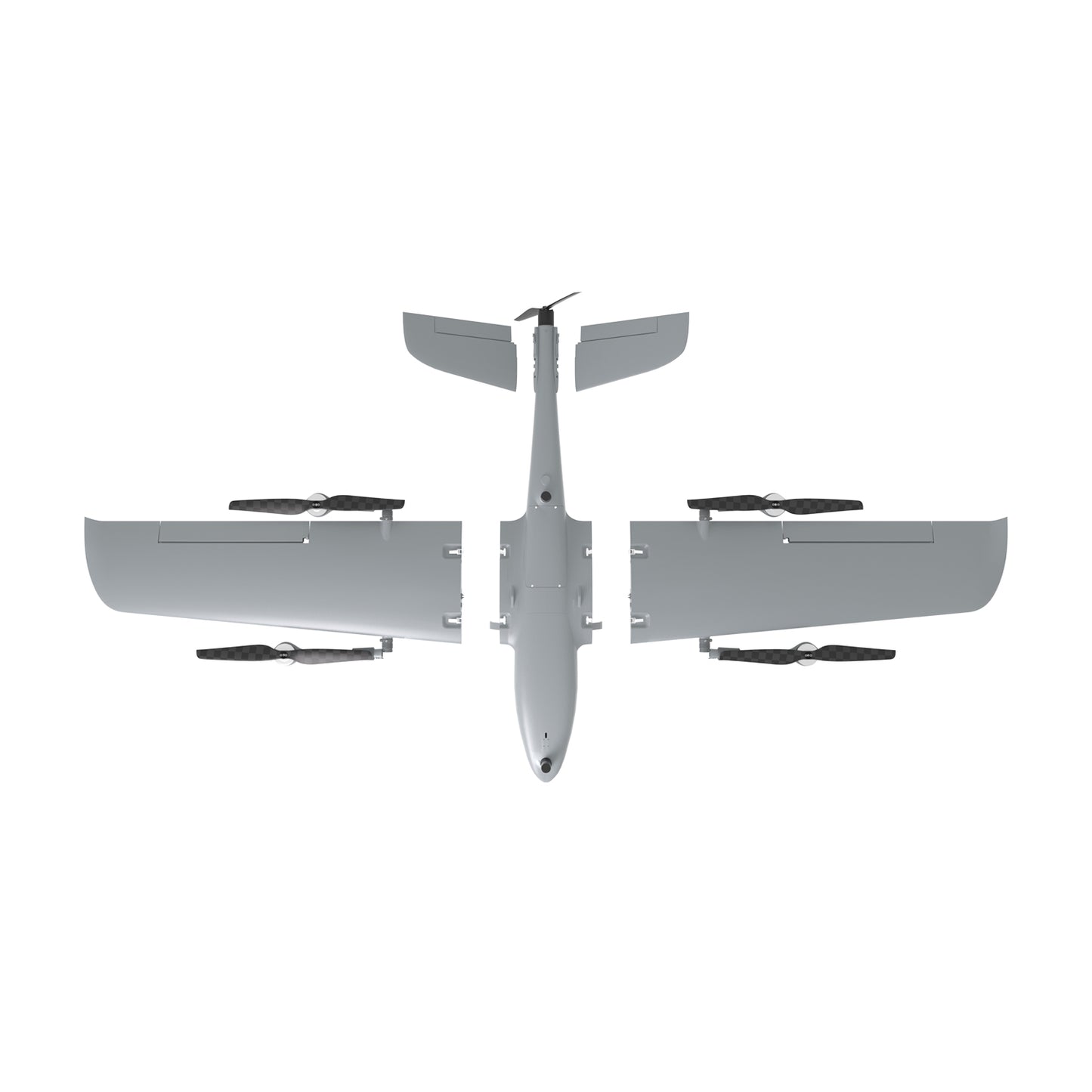

• Quick Assembly & Deployment: Screw-free, modular quick-release design allows assembly in less than a minute.
• Centimeter-Level Precision: Dual-antenna RTK GNSS positioning for high-accuracy mapping.

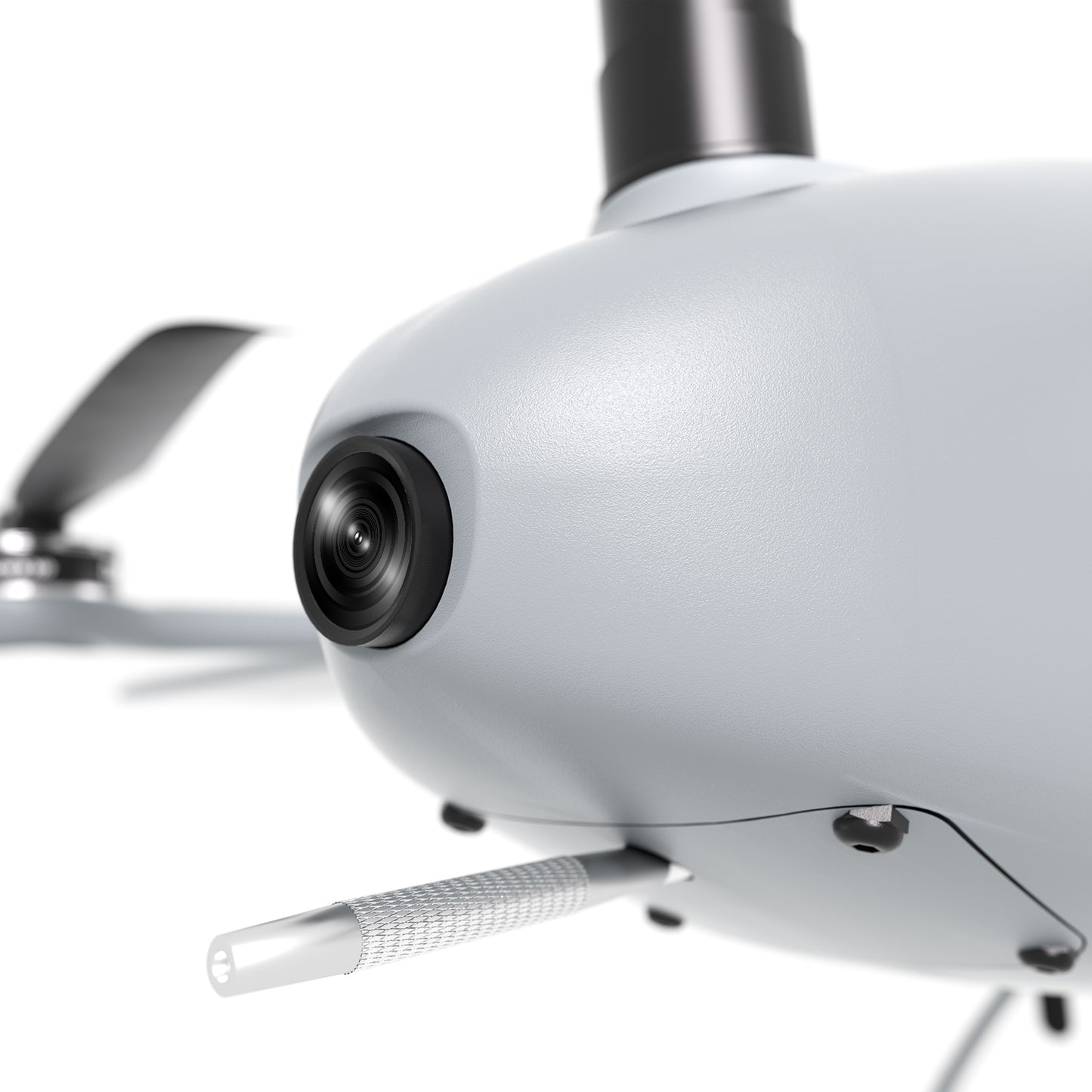

• 4K Ultra-Wide FPV Camera: 113° HFOV and 122° VFOV for real-time situational awareness.
• Open-Source Flight Control System: Compatible with Ardupilot, UniGCS, QGroundControl, and Mission Planner.
• All-Terrain VTOL Capability: Vertical takeoff and landing, eliminating the need for runways.
• AI-Powered Object Recognition & Tracking: Optional SIYI AI Tracking Module II enhances operational efficiency.
• Weather-Resistant Build: IP53-rated for reliable performance in rugged environments.
• Smart Ground Control System: UniRC7 Pro handheld Android 13 ground station with 7-inch 1600-nit display.

Specifications

• Aircraft Weight (Without Battery): 5.1kg
• Max Take-off Weight: 8.4kg
• Max Payload Capacity: 1kg
• Flight Time: Up to 125 minutes (without payload)
• Flight Time (Full Load): 114 minutes
• Flight Time (With ZT30 Optical Pod): 90 minutes
• Cruise Speed: 18m/s
• Max Airspeed: 25m/s
• Hovering Radius: 200m
• Wingspan: 2200mm
• Wind Resistance: Level 4 (multirotor), Level 5 (fixed-wing)
• IP Protection Rating: IP53
• Dimensions: 2200 × 1280 × 460mm
  Packing Dimensions: 1400 × 630 × 540mm
• Packing Type: Aviation Aluminum Case

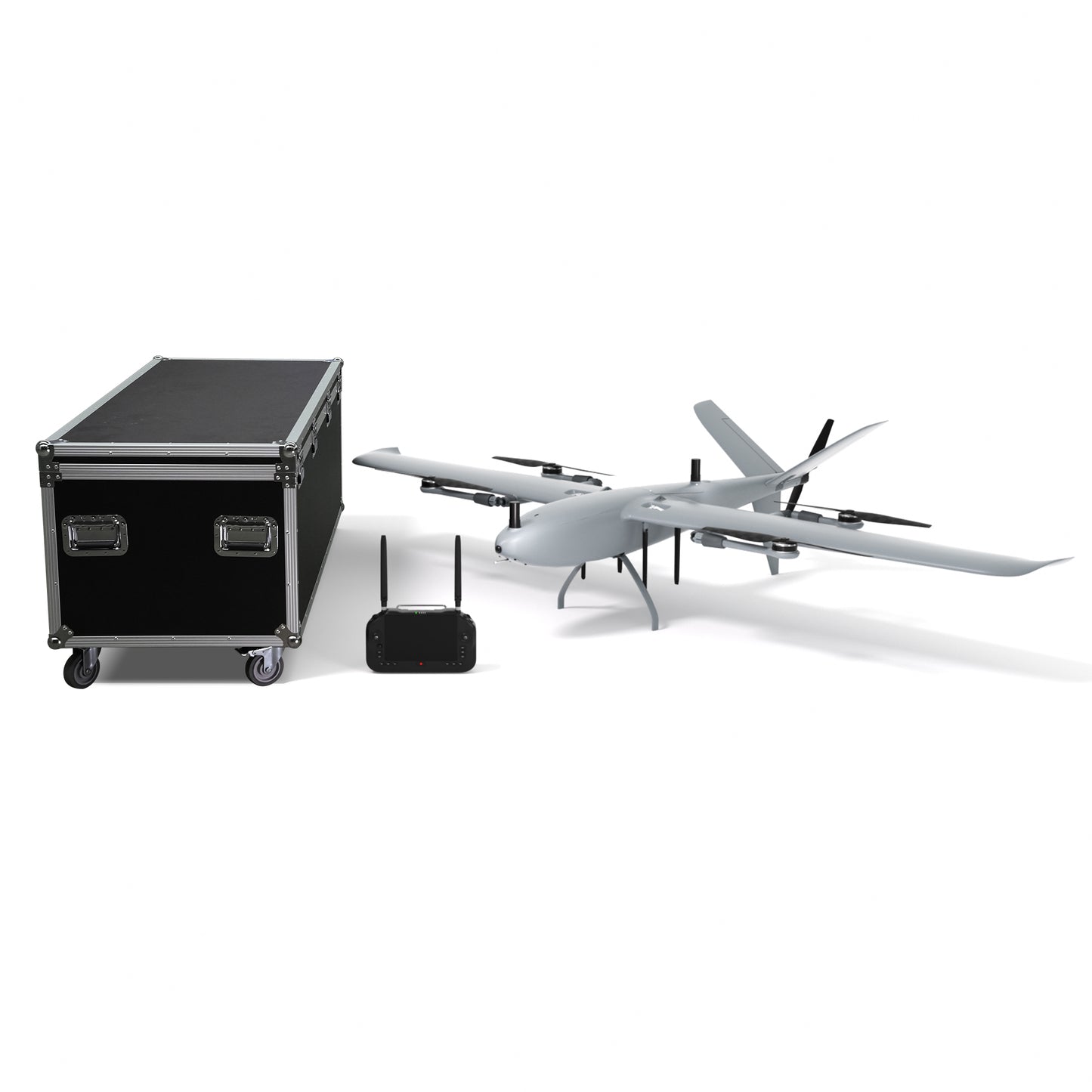

What’s in the Box

• 1 x UniVTOL V2200 Drone Platform
• 1 x UniRC7 Pro Handheld Ground Station
• 1 x Aviation Aluminum Storage Case

• Optional Accessories:

  SIYI AI Tracking Module Ⅱ (Object tracking & recognition)
  ZT30 Four-Sensor Optical Pod
  ZT6 Mini Dual-Sensor Optical Pod
  ZR30 Optical Pod
  ZR10 Optical Pod
  A8 Mini Gimbal Camera

Why Choose the UniVTOL V2200?

1. Superior Flight Performance & Versatility

Designed for long-range and high-precision missions, the UniVTOL V2200 delivers exceptional endurance and payload capacity for professional-grade surveying, mapping, and surveillance applications.

2. Rapid Deployment & Ease of Use

With a screw-free quick-release design, the UniVTOL V2200 allows for fast assembly and disassembly, reducing operational downtime and ensuring rapid deployment in the field.

3. Advanced AI & Smart Navigation

Equipped with optional AI tracking and intelligent flight planning, the drone can autonomously recognize and track objects, improve operational efficiency, and enhance safety in complex environments.

4. High-Precision Data Acquisition

The dual-antenna RTK GNSS positioning system ensures centimeter-level accuracy, making it an ideal choice for professional surveying, mapping, and industrial inspections.

5. Adaptability Across Industries

The UniVTOL V2200 is highly adaptable, supporting multiple payloads for terrain mapping, infrastructure inspection, security monitoring, and environmental analysis.
