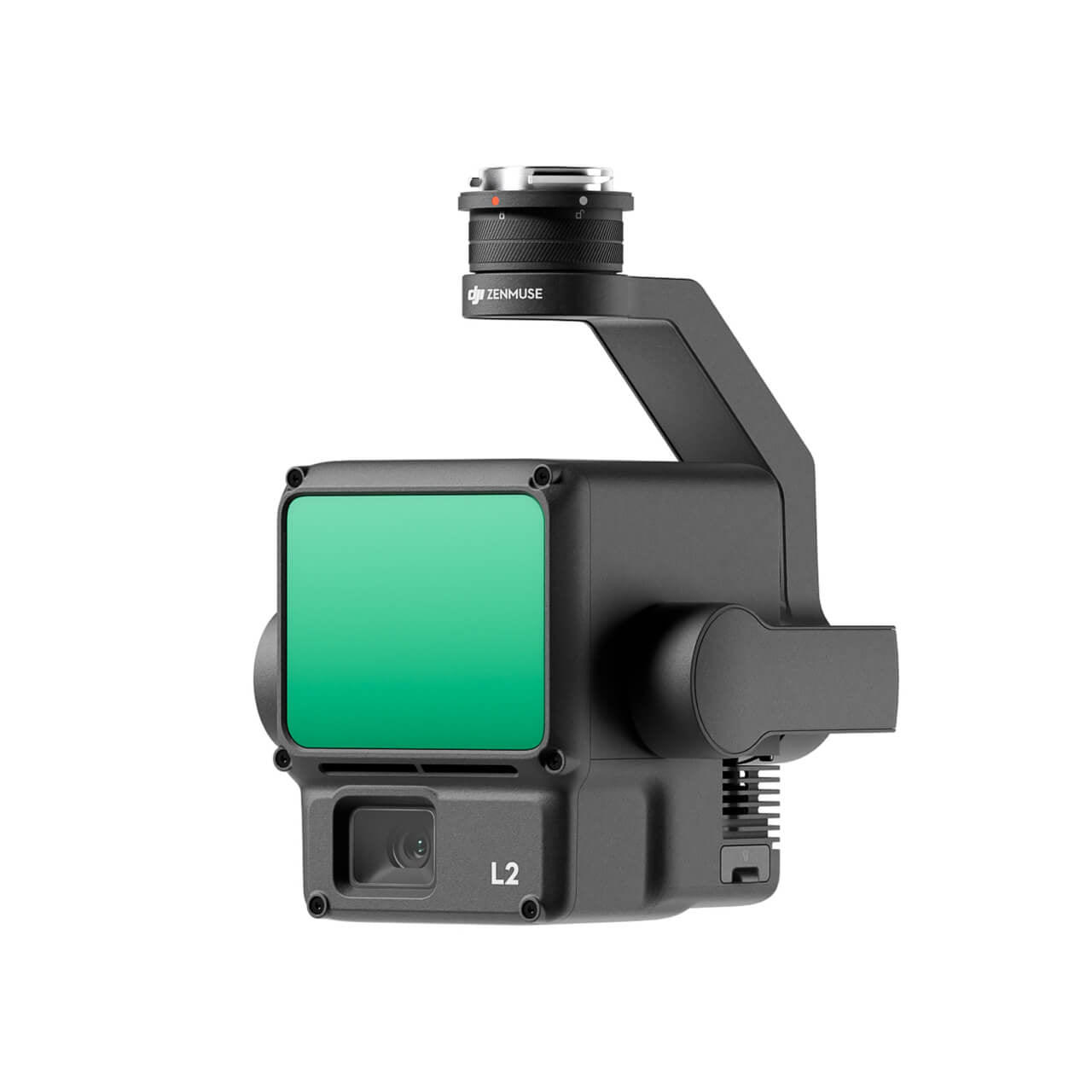

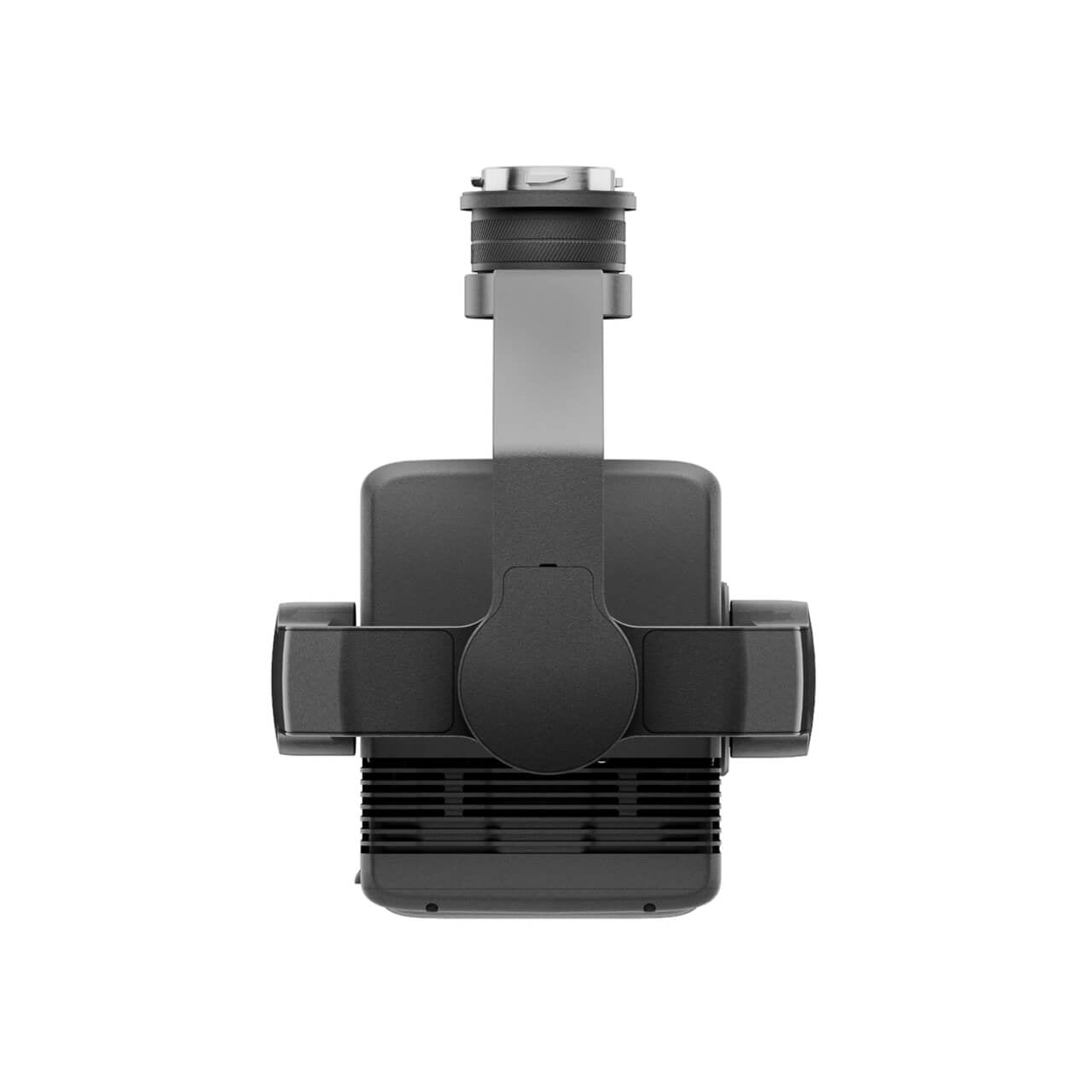

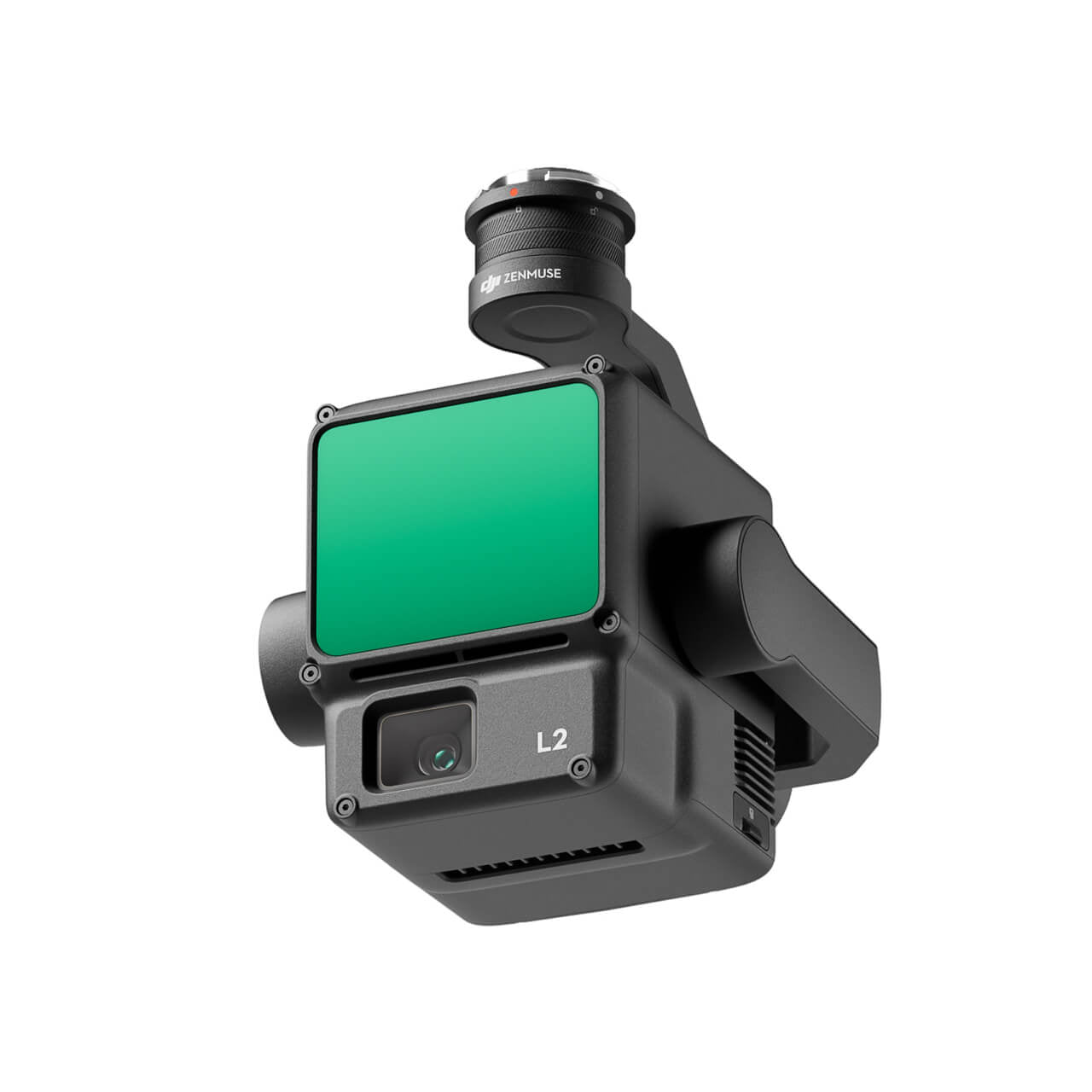

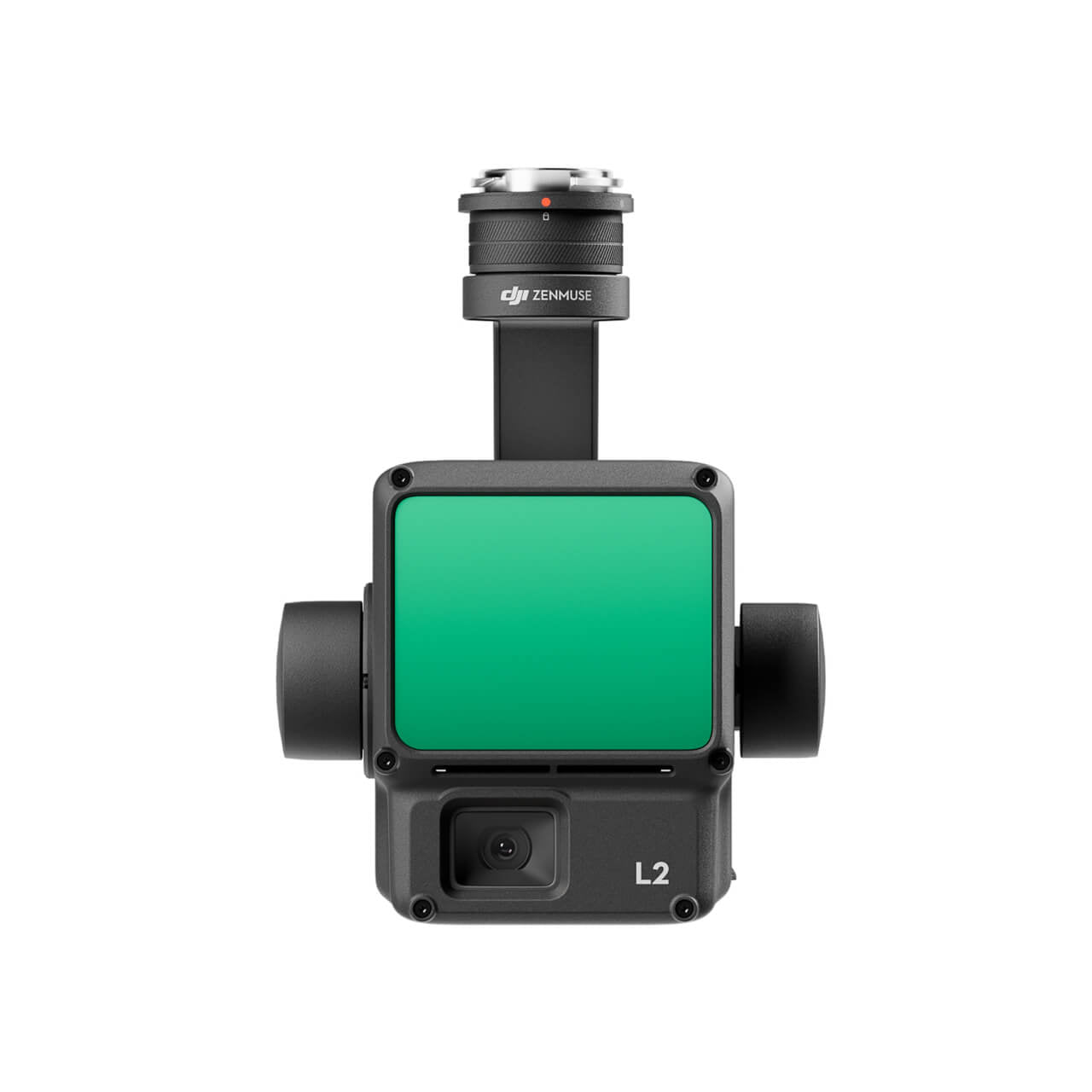

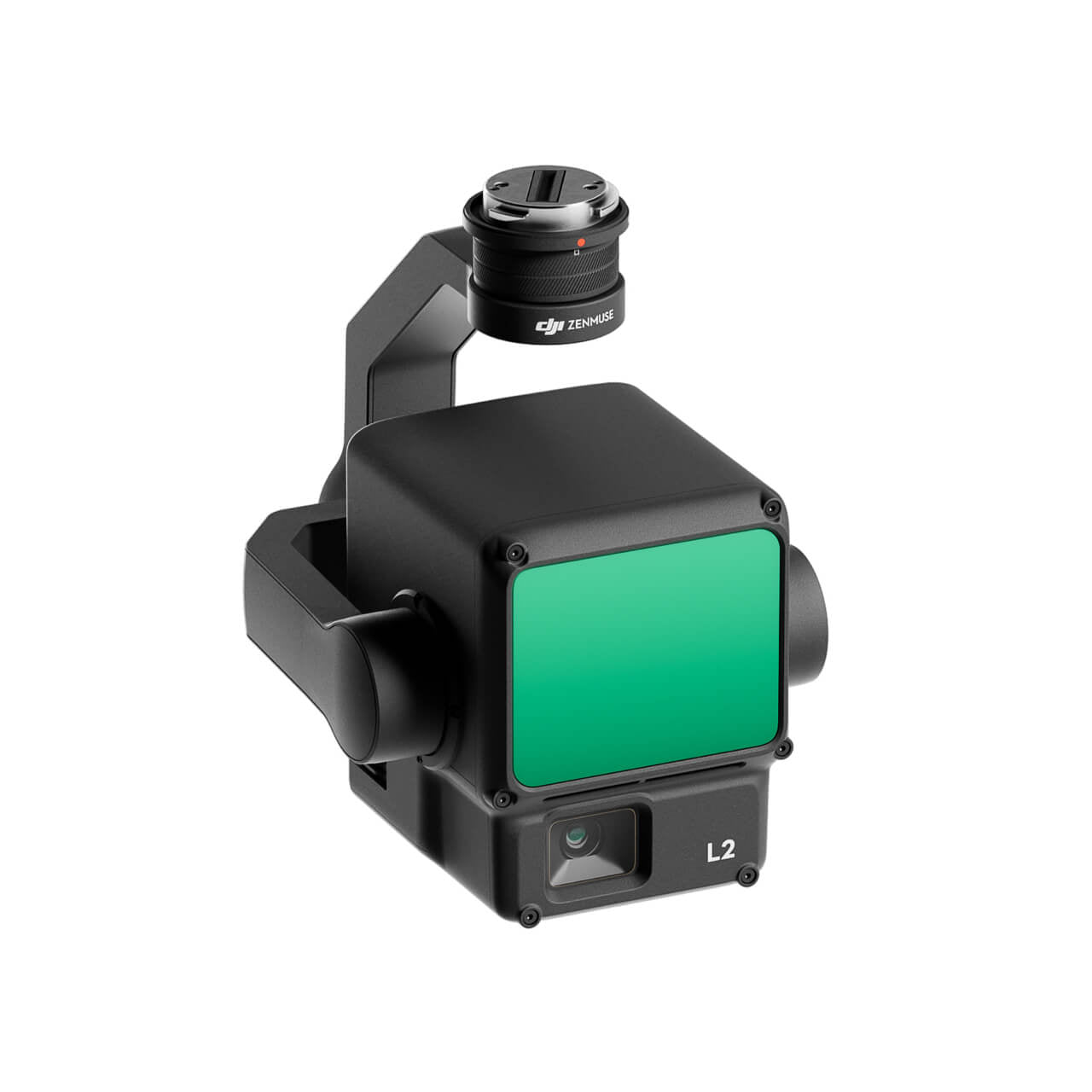

DJI Zenmuse L2 Worry-Free Basic Combo

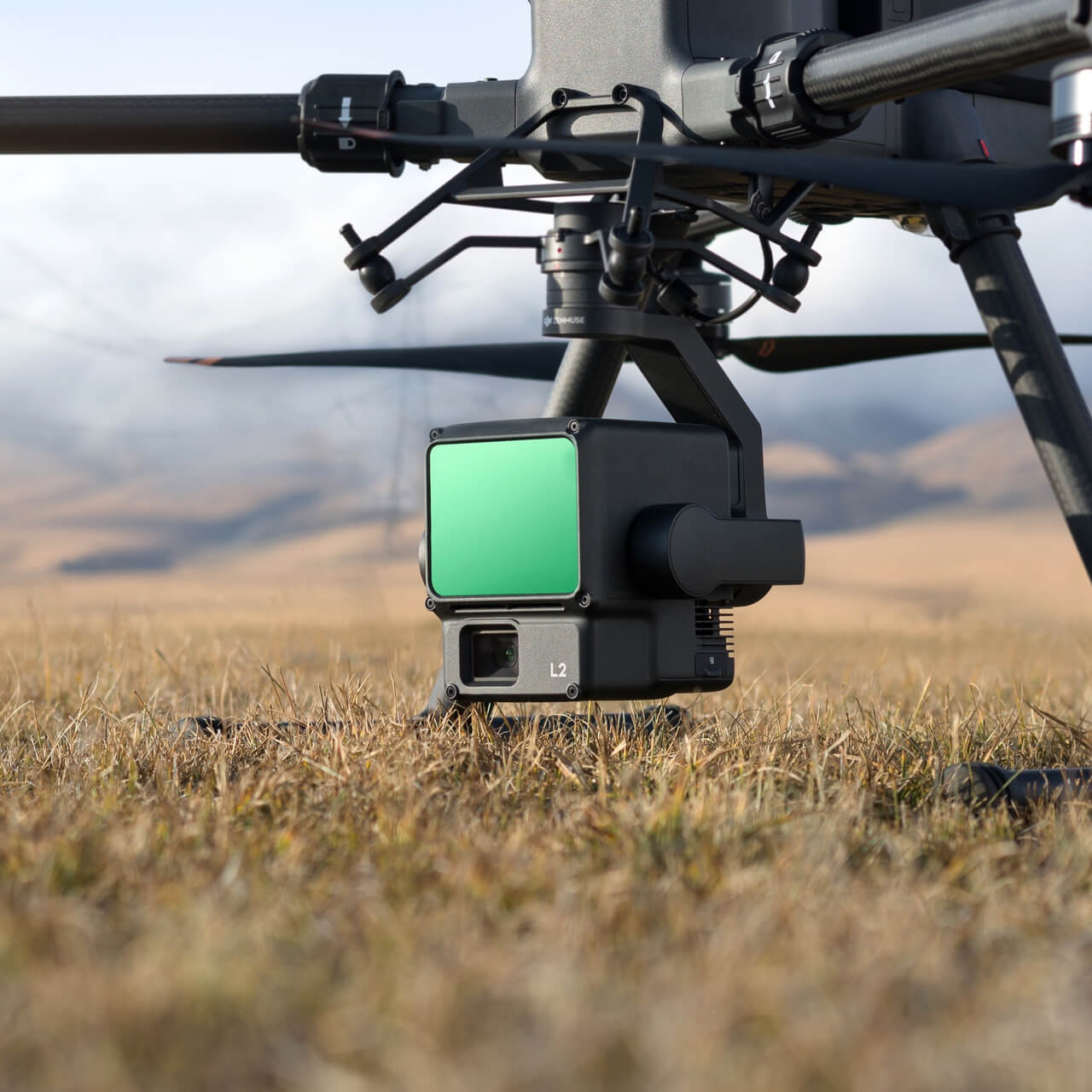

Unleash the power of precision mapping and advanced aerial imaging with the DJI Zenmuse L2 Worry-Free Basic Combo. Designed for industrial-grade drones like the Matrice series, this next-generation LiDAR and RGB payload revolutionizes data collection for professional applications such as land surveying, forestry management, urban planning, and power line inspections. Featuring a high-accuracy LiDAR scanner and a 20MP RGB camera mounted on a 3-axis gimbal, the Zenmuse L2 delivers pinpoint accuracy, enhanced penetration through vegetation, and ultra-clear visual imaging. With seamless integration into DJI's ecosystem, including DJI Pilot 2 and DJI Terra, operators can process data efficiently and ensure optimal results every time.

This combo includes the Worry-Free Basic Plan, which provides peace of mind with coverage for accidental damage, signal interference issues, and technical support. Whether you need precise point clouds or high-resolution images, the Zenmuse L2 is the ultimate tool for mission-critical operations.

Key Features

• High-Precision LiDAR Scanner: Achieve horizontal accuracy of 2" and vertical accuracy of 1.6" at a range of 492', ensuring unmatched point cloud detail.
• 20MP RGB Camera: Capture vibrant stills and videos with a large 3.3 μm pixel size for superior low-light performance and true color rendering for LiDAR point clouds.
• Extended Detection Range: Operate at a range of 820' (10% reflectivity) to 1,476' (50% reflectivity) for large-scale surveys.
• Enhanced Penetration & Detail: The 1.6" x 4.7" laser spot size improves penetration through dense vegetation for accurate structural mapping.
• Repetitive & Non-Repetitive Scanning Modes: Adapt to various environments, from uniform mapping to detailed foliage penetration.
• High-Speed Data Collection: Capture up to 240,000 points per second in single-return mode or up to 1.2 million points per second with multiple returns.
• Integrated IMU System: Provides real-time yaw accuracy of 0.2° and pitch/roll accuracy of 0.05° for stable and reliable positioning.
• Streamlined Workflow: Automate routes with Waypoint, Area, and Linear flight types, and post-process data with DJI Terra for 3D model creation.
• Worry-Free Basic Plan: Includes up to two replacements, free shipping, and coverage for collisions, water damage, and user errors.

Specifications

• LiDAR Scanner:

  • Ranging Accuracy: 0.8" at 492'
  • Max Returns: 5
  • Detection Range: 820' (10% reflectivity), 1,476' (50% reflectivity)
  • Laser Wavelength: 905 nm
  • Laser Spot Size: 1.6" x 4.7" at 328'
  • Field of View (FOV): Horizontal 70°, Vertical 3° (Repetitive), Horizontal 70°, Vertical 75° (Non-Repetitive)

• RGB Camera:

  • Resolution: 20MP
  • Pixel Size: 3.3 μm
  • Shutter: Mechanical (200,000 lifespan)
  • Image Interval: 0.7 seconds

• IMU System:

  • Update Frequency: 200 Hz
  • Real-Time Yaw Accuracy: 0.2°
  • Post-Processing Yaw Accuracy: 0.05°
  • Real-Time Pitch/Roll Accuracy: 0.05°
  • Post-Processing Pitch/Roll Accuracy: 0.025°

• Power Consumption:

  • Typical: 28 W
  • Maximum: 58 W

• Physical Dimensions & Weight:

  • Size: 6.9 x 6.1 x 5" (176 x 155 x 128 mm)
  • Weight: 2 lb (905 g)

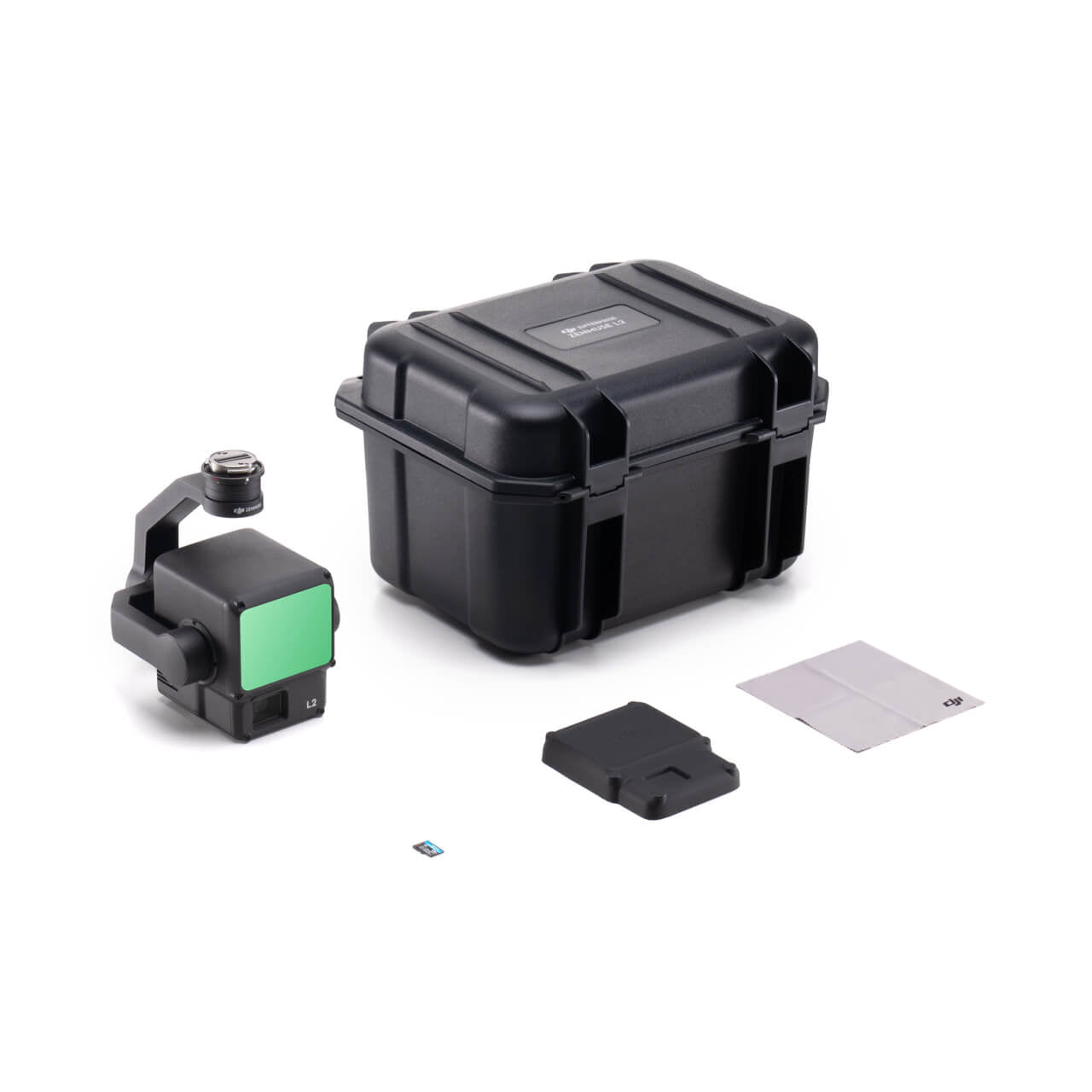

What’s in the Box

• 1 x DJI Zenmuse L2 RGB/LiDAR Payload
• 1 x Storage Case
• 1 x DJI Worry-Free Basic Plan (1-Year Coverage)

Why You Should Buy

The DJI Zenmuse L2 Worry-Free Basic Combo is the ultimate tool for professionals requiring unmatched precision and versatility in their aerial missions. Its LiDAR scanner ensures accurate data collection with excellent penetration, even through dense vegetation, while the 20MP RGB camera captures vivid visuals for enhanced mapping. Paired with DJI's advanced flight software, the Zenmuse L2 simplifies complex workflows and enables real-time data quality checks. The Worry-Free Basic Plan provides peace of mind with comprehensive coverage for accidents and damage, ensuring your investment is secure. Whether you're a land surveyor, engineer, or environmental researcher, the Zenmuse L2 delivers unparalleled performance and reliability.
