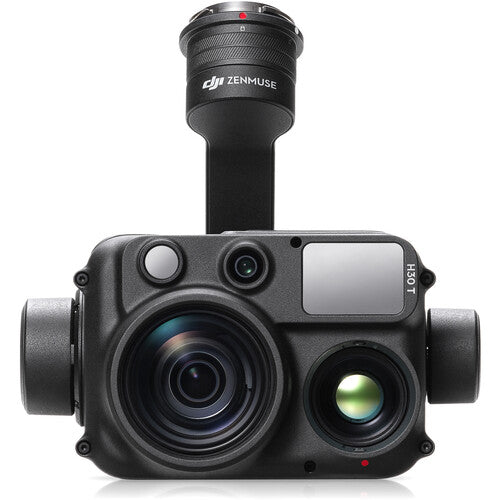

DJI Zenmuse H30T Payload for Matrice 300/350 RTK

The DJI Zenmuse H30T Payload takes aerial imaging to new heights with a comprehensive suite of five advanced sensors integrated into a single robust, all-weather gimbal system. Designed for search and rescue, infrastructure inspection, firefighting, forestry, and industrial monitoring, the H30T payload is ideal for professionals who demand precise thermal imaging and high-resolution data capture.

Equipped with a wide-angle camera, telephoto zoom camera, infrared thermal sensor, laser rangefinder, and NIR auxiliary light, the H30T delivers unmatched imaging capabilities for complex operations in challenging environments. Its IP54-rated construction ensures reliable performance in all weather conditions, while its operating temperature range of -4°F to 122°F makes it versatile for year-round use.

Key Features

• Wide-Angle Camera: 48MP stills with 4K30 video recording at a DFOV of 82.1°, ideal for detailed area surveys and mapping.
• Telephoto Zoom Camera: 40MP stills with 4K30 video, offering up to 32x optical and 400x digital zoom, perfect for capturing intricate details from long distances.
• Infrared Thermal Camera: 1280 x 1024 resolution at 30fps with a temperature measurement range from -4°F to 2912°F (with optional Infrared Density Filter). Includes up to 32x digital zoom and UHR (Ultra-High Resolution) mode for enhanced thermal clarity.
• Laser Rangefinder: Measures linear distance, altitude, and GPS coordinates with a range of 10 feet to 1.86 miles, making it essential for accurate site measurements and surveillance.
• NIR Auxiliary Light: Enhances low-light performance by providing near-infrared illumination for clearer wide and zoom camera images, especially in Night Scene Mode.
• Night Scene Mode: Optimizes low-light recording for both wide-angle and zoom sensors, with support for full-color and black-and-white imagery.
• Smart Thermal Capture: Automatically assesses ambient light and dynamic range to deliver enhanced thermal and optical images.
• Three Gain Modes: High Gain for precise temperature readings, Low Gain for a wider temperature range, and High-Resolution mode for better clarity in small temperature differences.
• Electronic Dehazing: Improves image clarity in environments with smog or high humidity.
• Link Zoom: Synchronizes telephoto and thermal zoom for simultaneous image scaling, improving situational awareness and data analysis.
• Pre-Recording: Captures footage 10, 15, or 30 seconds before recording starts, ensuring you don’t miss critical moments.
• Secure Data and Transmission: AES-256 encryption for microSD cards, secure transmission between the drone and controller, and 1-click log clearance to protect sensitive information.
• Cloud Collaboration: Real-time data and video sync through DJI FlightHub 2, enabling fast decision-making and air-to-ground coordination.

Specifications

• Compatibility: DJI Matrice 300 RTK / Matrice 350 RTK
• Wide-Angle Camera: 48MP, 4K30 video, DFOV: 82.1°
• Zoom Camera: 40MP, 4K30 video, 32x optical zoom, 400x digital zoom
• Thermal Camera: 1280 x 1024 @ 30fps, R-JPEG format, 32x digital zoom
  • Temperature Range:
    • High Gain: -4°F to 302°F (-20°C to 150°C), up to 842°F with Infrared Density Filter
    • Low Gain: 32°F to 1112°F (0°C to 600°C), up to 2912°F with Infrared Density Filter
• Laser Rangefinder: Range: 10 ft - 1.86 miles
• Environmental Resistance: IP54 dust and water-resistant
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Dimensions: 6.7 x 6.5 x 5.7 inches (170 x 165 x 145 mm)
• Weight: 2.03 lb (920 g)

What’s in the Box

• DJI Zenmuse H30T Payload x1
• Storage Case x1
• 64GB microSD Card x1
• Infrared Density Filter x1

Why You Should Buy

The DJI Zenmuse H30T Payload is a versatile, feature-packed tool for professionals who require cutting-edge thermal imaging and detailed aerial data. Whether you’re mapping infrastructure, assessing environmental changes, or conducting emergency response operations, this payload offers unmatched imaging flexibility. Its robust construction ensures performance in the harshest conditions, while advanced features like UHR thermal mode, link zoom, and cloud collaboration make it a must-have for precision operations.
