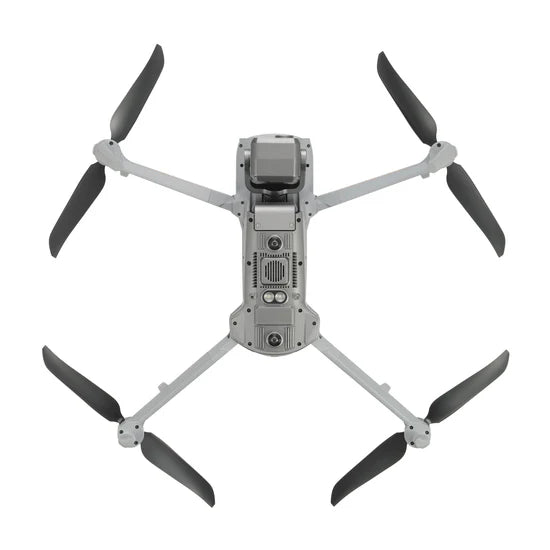

Autel Robotics EVO Max 4T

The Autel Robotics EVO Max 4T is a state-of-the-art, versatile drone tailored for both commercial and recreational use, offering unparalleled performance in mapping, inspection, and tactical operations. With a powerful quad-sensor system including a high-resolution thermal imaging camera and 10x optical zoom, this drone ensures precision and clarity even in the most challenging conditions. Its robust obstacle-avoidance system, enhanced AI features, and advanced GPS capabilities make the EVO Max 4T a reliable choice for professionals who need cutting-edge technology in the field.

Key Features

• 4K HDR Camera: Capture stunningly detailed footage with the 4K HDR camera for enhanced imaging quality.
• Thermal Imaging: Equipped with a high-sensitivity thermal sensor to detect temperature differences, ideal for inspections and rescue missions.
• 10x Optical Zoom: Get a closer look at targets without compromising on quality, with a zoom feature designed for precision.
• Long-Range Obstacle Avoidance: 360° obstacle detection with accurate, long-range sensors, enhancing safety and navigation.
• Intelligent AI Functions: Features like advanced GPS tracking, waypoint navigation, and automated mapping make this drone a powerful tool for complex operations.
• Extended Battery Life: Up to 42 minutes of flight time per battery for extended missions.

Specifications

Camera System

• Primary Camera: 48MP 4K HDR sensor for high-definition imaging
• Thermal Camera: High-sensitivity sensor with adjustable temperature detection range
• Zoom: 10x optical zoom, 160x digital zoom
• Field of View (FOV): 54° for main camera
• Video Resolution: Up to 4K at 30fps (main camera)
• Photo Resolution: 8000x6000 pixels (main camera)
• Image Format: JPEG, DNG
• Video Format: MP4, MOV
• Image Modes: Single, Burst, AEB, HDR, Panorama

Thermal Imaging Specifications

• Resolution: 640x512 pixels
• Frame Rate: 30Hz
• Sensitivity: ≤ 50 mK @ 25°C
• Temperature Range: -20°C to 150°C / 0°C to 550°C
• Palette Options: Multiple, including white-hot, black-hot, and rainbow

Flight System

• Flight Time: Up to 42 minutes per battery charge
• Max Flight Speed: 45 mph (72 km/h) in Sport Mode
• Max Service Ceiling: 7,000 meters (22,965 feet)
• Max Transmission Range: Up to 12 kilometers (7.5 miles) with low-latency HD video
• Wind Resistance: Level 7 (approximately 31-38 mph or 50-61 km/h)
• Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery

• Battery Type: Intelligent LiPo 4S
• Capacity: 6200 mAh
• Voltage: 15.2 V
• Battery Life: Approximately 42 minutes
• Charging Time: About 90 minutes (using official Autel charger)

Obstacle Avoidance and Positioning

• Sensors: 360° obstacle avoidance sensors, includes front, back, top, bottom, and side sensors
• Detection Range: Up to 30 meters
• Positioning System: GPS, GLONASS, BeiDou
• Enhanced Vision Positioning: Precision sensors for stability in low-GPS or indoor environments

AI and Intelligent Flight Modes

• Waypoint Navigation: Allows setting multiple waypoints for automated flight paths
• Object Tracking: Smart tracking for dynamic subjects
• Thermal Smart Detection: Temperature-based alert systems for object and person detection
• Mapping & Surveying: Automated mapping functions with thermal and optical imaging overlay
• Return to Home (RTH): Automatic RTH in case of low battery or signal loss

Build and Design

• Weight: Approximately 1.6 kg (with battery)
• Dimensions (Folded): 225 × 105 × 95 mm
• Dimensions (Unfolded): 396 × 396 × 95 mm
• Build Material: Durable composite material for industrial use
• Weather Resistance: Rated for light rain and dust resistance

Remote Controller

• Controller Type: Dual-frequency (2.4 GHz and 5.8 GHz) with HD transmission up to 12 km
• Screen: 5.5-inch 1080p display, 1000 nits brightness
• Battery Life: Up to 4 hours on a single charge
• App Compatibility: Compatible with Autel Sky App for additional functionality
• Charging Port: USB-C for fast charging

Additional Features

• Audio Output: Real-time audio transmission for two-way communication
• Memory: MicroSD card support, up to 256GB
• Smart Flight Logging: Automatically logs flight data for easy access and analysis
• Firmware Updates: Over-the-air updates via Autel Sky App

What's in the Box

• Autel Robotics EVO Max 4T Drone
• Remote Controller
• Intelligent Flight Battery (1)
• Battery Charger
• Spare Propellers (2 pairs)
• Protective Case
• Charging Cable and Power Adapter
• User Manual and Quick Start Guide

Why You Should Buy the EVO Max 4T

The Autel Robotics EVO Max 4T stands out for its advanced imaging capabilities, especially beneficial for industries requiring thermal detection, close-up inspections, and precise, real-time navigation. It’s a top choice for professionals in search and rescue, infrastructure inspection, and land surveying, thanks to its robust build, extended flight time, and high-tech AI functions. With the EVO Max 4T, you gain reliable, high-quality imagery and data collection, empowering you to tackle projects with confidence and ease.
