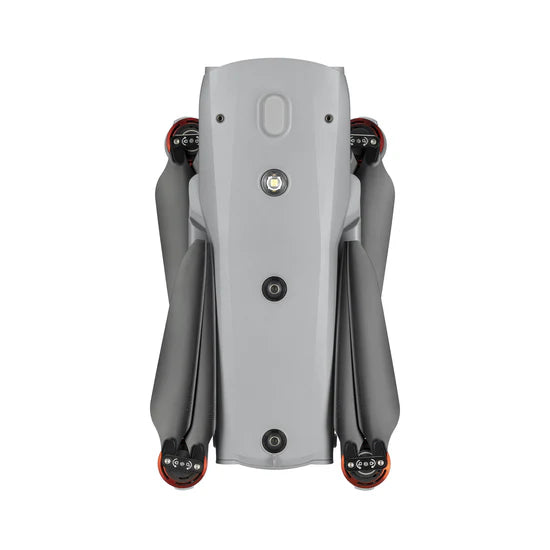

Autel Robotics EVO Max 4N
Autel Robotics EVO Max 4N
The Autel Robotics EVO Max 4N pushes the boundaries of night-time aerial exploration, equipped with a starlight night-vision camera capable of as low as 0.0001 LUX sensitivity and ISO ranges from 100-450,000. Whether you're conducting inspections, performing surveillance, or embarking on industrial missions, the EVO Max 4N is built to handle it all with unmatched precision and clarity, even in the darkest conditions. Powered by Autel SkyLink 3.0 with a 12.4-mile transmission range, A-Mesh networking for stable connectivity, and IP43 weather resistance, this drone is ideal for navigating challenging environments and GPS-denied locations with ease.
Key Features
- Exceptional Night Vision: Starlight camera with 0.0001 LUX, ISO range from 100-450,000, ideal for dark environments and low-light missions.
- Autel SkyLink 3.0: Reliable, low-latency transmission up to 12.4 miles, ensuring a stable and high-quality video feed.
- 720° Obstacle Avoidance: Offers complete protection from all directions with millimeter-wave radar and visual sensing.
- A-Mesh Networking: Mesh network technology provides enhanced stability for multi-drone operations and long-distance control.
- 3D Map Planning: Enables detailed 3D map planning and mission management for efficient, accurate operations.
- Thermal Imaging: High-sensitivity thermal camera to detect temperature variations and enable reliable thermal mapping.
- Weather Resistance and Durability: IP43-rated for dust and light rain resistance; designed to operate in temperatures from -20°F to 122°F (-28°C to 50°C).
- Extended Flight Time: Max flight time of 42 minutes on a single charge, suitable for prolonged missions.
Specifications
Weight and Dimensions:
- Weight: 3.57 lbs (1620g), including battery and gimbal.
- Dimensions: Folded 340 x 407 x 148 mm; unfolded 257 x 136 x 133 mm.
Flight Performance:
- Max Speed: 23 m/s.
- Max Altitude: 13,124 ft.
- Max Flight Time: 42 mins.
- Wind Resistance: 27 mph.
- Operating Temperature: -20°F to 122°F.
Positioning and Frequency:
- GPS, Galileo, BeiDou, GLONASS.
- Frequency: 2.4G, 5.2G, 5.8G, 900MHz (regional restrictions apply).
Camera System:
- Main Camera: 2.3MP, 4K video, ISO up to 450,000.
- Wide Camera: 50MP, 4K video, f/1.9.
- Thermal Camera: Detects up to 1.2 km.
Image Transmission:
- Max Range: 20 km (FCC), 8 km (CE).
- Real-time video feed at high distances.
Obstacle Avoidance:
- Visual and millimeter-wave radar sensors, omnidirectional obstacle sensing, and rerouting up to 45 mph.
Smart Controller:
- 7.9” screen, 2000 nits brightness, IP43 rating.
- Battery: 5800 mAh, 3-4.5 hours operating time.
Battery:
- 8070 mAh, 120 Wh, LiPo 4S, hot-swappable, supports self-heating.
What’s in the Box
- 1x Aircraft (Battery, Propeller, Gimbal, Gimabal Cover, 64G SD Card Included)
- 1x Smart Controller V3 (Sticks Included)
-
1x Spare Propellers (Pair)
-
1x Battery Charger
- 1x RC Charger
- 1x Data Cable
- 1x RC Charging Cable
- 1x Smart Controller Lanyard
- 1x Smart Controller Cover
- 1x Smart Controller Spare Joystick (Pair)
- 1x Rugged Case
- 1x Manual
